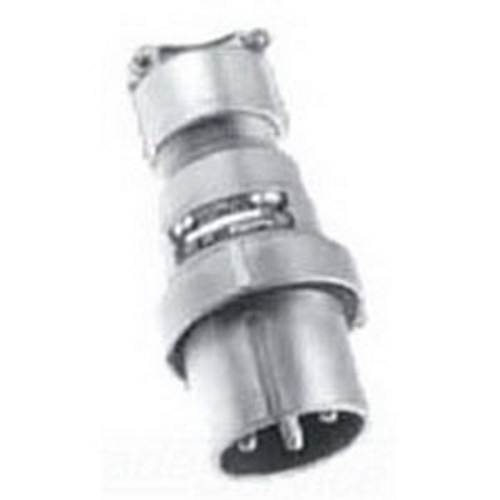

Appleton® AEP6352 AE Series Style 1 Weatherproof Pin & Sleeve Plug, 600 VAC/250 VDC, 60 A, 3 Poles, 3 Wires
Custom_Product_Images_Illustration
Appleton® AEP6352 AE Series Style 1 Weatherproof Pin & Sleeve Plug, 600 VAC/250 VDC, 60 A, 3 Poles, 3 Wires
SKU315506
MFGR #AEP6352
Your Cost: $827.13/ea
Appleton® Pin & Sleeve Plug, Style 1 Weatherproof, Series: AE Series, 600 VAC/250 VDC, 60 A, 3 Pole, 3 Wires, Pressure Wire Terminal, Aluminum
Appleton® Pin & Sleeve Plug, Style 1 Weatherproof, Series: AE Series, 600 VAC/250 VDC, 60 A, 3 Pole, 3 Wires, Pressure Wire Terminal, Aluminum
Application For AE631, AE637 Receptacles And APR6352 Connector Body ARRA Compliant N Buy American Compliant N Catalog Number AEP6352 Connection Pressure Wire Terminal Country of Origin MX Currency USD Dimensions 6 in L x 3.19 in W EU RoHS Indicator C Gross Weight Per Pack 2.3300 lb Gross Weight per Pack Metric 1.06 Gross Weight UOM Metric kg Height 1.42 in Height [Metric] 3.5992 cm Length 12.50 in Length [Metric] 31.7500 cm Material Copper Free Aluminum Number Of Poles 3 Series AE Series Standard UL 1682, UL 1686 Standards UL 1682UL 1686RoHS Compliant Terminal Type Pressure Wire Type Grounding Style 1 Weatherproof UNSPSC 39121402 UPC 11 78138113625 UPC 12 781381136259 Width 10.50 in Width [Metric] 26.6700 cm Wire Size 8 - 4 AWG Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Amperage Rating 60 A Number of Wires 3 Voltage Rating 250/600 VAC//VDC For AE631, AE637 Receptacles And APR6352 Connector Body Grounding style: shell only; Weatherproof; Contacts exert constant pressure along the entire contact surface, providing electrical continuity, solid brass contacts with beryllium copper springs; Plug with clamp ring has neoprene gasket, ring threads onto screw cap receptacle to provide raintight assembly when properly tightened; Insulating blocks provide high degree of dielectric and mechanical strength and lowest moisture absorption, lowest arc tracking; Floating-type plug contacts self-align to receptacle contacts; For welders, generators, compressors, pumps, similar apparatus; Natural finish fiber glass reinforced phenolic insulation blocks
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For AE631, AE637 Receptacles And APR6352 Connector Body |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | AEP6352 |
| Connection | Pressure Wire Terminal |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6 in L x 3.19 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 2.3300 lb |
| Gross Weight per Pack Metric | 1.06 |
| Gross Weight UOM Metric | kg |
| Height | 1.42 in |
| Height [Metric] | 3.5992 cm |
| Length | 12.50 in |
| Length [Metric] | 31.7500 cm |
| Material | Copper Free Aluminum |
| Number Of Poles | 3 |
| Series | AE Series |
| Standard | UL 1682, UL 1686 |
| Standards | UL 1682UL 1686RoHS Compliant |
| Terminal Type | Pressure Wire |
| Type | Grounding Style 1 Weatherproof |
| UNSPSC | 39121402 |
| UPC 11 | 78138113625 |
| UPC 12 | 781381136259 |
| Width | 10.50 in |
| Width [Metric] | 26.6700 cm |
| Wire Size | 8 - 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Amperage Rating | 60 A |
| Number of Wires | 3 |
| Voltage Rating | 250/600 VAC//VDC |
| For AE631, AE637 Receptacles And APR6352 Connector Body |
| Grounding style: shell only; Weatherproof; Contacts exert constant pressure along the entire contact surface, providing electrical continuity, solid brass contacts with beryllium copper springs; Plug with clamp ring has neoprene gasket, ring threads onto screw cap receptacle to provide raintight assembly when properly tightened; Insulating blocks provide high degree of dielectric and mechanical strength and lowest moisture absorption, lowest arc tracking; Floating-type plug contacts self-align to receptacle contacts; For welders, generators, compressors, pumps, similar apparatus; Natural finish fiber glass reinforced phenolic insulation blocks |
