Appleton™

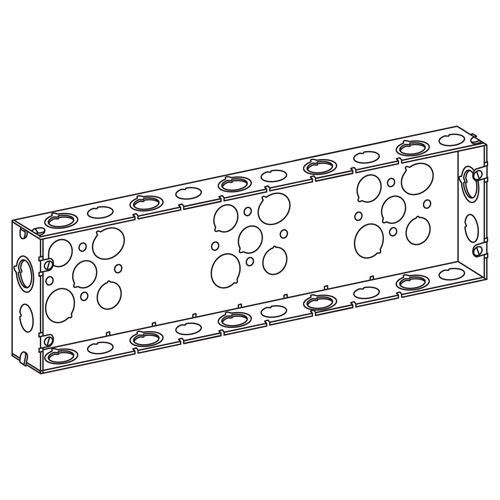

Appleton® 8G5075S Multi-Gang Welded Switch Box With Knockouts, Steel, 142.1 cu-in, 8 Gangs, 39 Knockouts
Custom_Product_Images_Illustration
Appleton™
Appleton® 8G5075S Multi-Gang Welded Switch Box With Knockouts, Steel, 142.1 cu-in, 8 Gangs, 39 Knockouts
SKU397348
MFGR #8G5075S
Your Cost: $1,090.54/ea
(10) 1/2 in, (10) eccentric side, (2) 1/2 in, (2) eccentric end, (9) 1/2 in, (6) 3/4 in bottom knockouts.
(10) 1/2 in, (10) eccentric side, (2) 1/2 in, (2) eccentric end, (9) 1/2 in, (6) 3/4 in bottom knockouts.
ARRA Compliant N Buy American Compliant N Cable Entry Size Knockout Catalog Number 8G5075S Construction Welded Country of Origin CN Cubic Capacity 142.1 CU-IN in³ Currency USD EU RoHS Indicator C Finish Pre-Galvanized Gross Weight Per Pack 2.8500 lb Gross Weight per Pack Metric 1.29 Gross Weight UOM Metric kg Height 1.50 in Height [Metric] 3.8100 cm Knockout Size 1/2 to 3/4 in Knockouts 39 Length 17.70 in Length [Metric] 44.9580 cm Size 17-3/4 X 4-9/16 IN in Standard UL Standard 514A; UL Listed E2527; Nema OS-1 Standards UL 514AUL 514BUL 514D File No. E2527NEMA FB-1OS-1 Compliant Sub Brand ETP Type Multi-Gang Welded UNSPSC 39121306 UPC 11 68785500167 UPC 12 68785500167 Width 4.60 in Width [Metric] 11.6840 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 142.1 in³ Dimensions 4-9/16 in H x 17-3/4 in W x 1-7/8 in D Material Steel Number of Gangs 8 Number of Knockouts 39 8 Gang, With 1/2 And 3/4 IN Conduit Knockouts, 1-7/8 IN Deep Single and double gang metallic outlet and switch boxes are acceptable for use in two hour fire rated walls Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC All concentric or eccentric knockouts are 1/2 to 3/4 in combinations (10) 1/2 in, (10) eccentric side, (2) 1/2 in, (2) eccentric end, (9) 1/2 in, (6) 3/4 in bottom knockouts
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | N |
| Buy American Compliant | N |
| Cable Entry Size | Knockout |
| Catalog Number | 8G5075S |
| Construction | Welded |
| Country of Origin | CN |
| Cubic Capacity | 142.1 CU-IN in³ |
| Currency | USD |
| EU RoHS Indicator | C |
| Finish | Pre-Galvanized |
| Gross Weight Per Pack | 2.8500 lb |
| Gross Weight per Pack Metric | 1.29 |
| Gross Weight UOM Metric | kg |
| Height | 1.50 in |
| Height [Metric] | 3.8100 cm |
| Knockout Size | 1/2 to 3/4 in |
| Knockouts | 39 |
| Length | 17.70 in |
| Length [Metric] | 44.9580 cm |
| Size | 17-3/4 X 4-9/16 IN in |
| Standard | UL Standard 514A; UL Listed E2527; Nema OS-1 |
| Standards | UL 514AUL 514BUL 514D File No. E2527NEMA FB-1OS-1 Compliant |
| Sub Brand | ETP |
| Type | Multi-Gang Welded |
| UNSPSC | 39121306 |
| UPC 11 | 68785500167 |
| UPC 12 | 68785500167 |
| Width | 4.60 in |
| Width [Metric] | 11.6840 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 142.1 in³ |
| Dimensions | 4-9/16 in H x 17-3/4 in W x 1-7/8 in D |
| Material | Steel |
| Number of Gangs | 8 |
| Number of Knockouts | 39 |
| 8 Gang, With 1/2 And 3/4 IN Conduit Knockouts, 1-7/8 IN Deep |
| Single and double gang metallic outlet and switch boxes are acceptable for use in two hour fire rated walls |
| Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC |
| All concentric or eccentric knockouts are 1/2 to 3/4 in combinations |
| (10) 1/2 in, (10) eccentric side, (2) 1/2 in, (2) eccentric end, (9) 1/2 in, (6) 3/4 in bottom knockouts |
