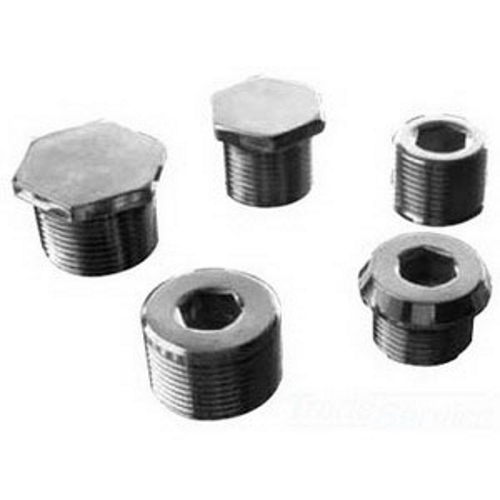

Appleton® 757DM25 757 Hexagon Head Cable Gland Stopper Plug, M16xM20, Brass, Nickel Plated
Custom_Product_Images_Illustration
Appleton® 757DM25 757 Hexagon Head Cable Gland Stopper Plug, M16xM20, Brass, Nickel Plated
SKU843721
MFGR #757DM25
$/ea
Appleton® 757 Series increased safety and flameproof blanking plugs are designed for use on the the outside of an enclosure to permanently or temporarily close any unused entries. They are ideal for use in for hazardous area applications.
Appleton® 757 Series increased safety and flameproof blanking plugs are designed for use on the the outside of an enclosure to permanently or temporarily close any unused entries. They are ideal for use in for hazardous area applications.
Application For Use To Close Any UnUsed Entries In Electrical Equipment ARRA Compliant N Buy American Compliant N Catalog Number 757DM25 Connection M20 MNPT Country of Origin GB Currency USD Enclosure NEMA 4X, IP68 EU RoHS Indicator C Gross Weight Per Pack 0.0020 lb Gross Weight per Pack Metric 0.00 Gross Weight UOM Metric kg Height 0.03 in Height [Metric] 0.7620 mm Length 11.50 in Length [Metric] 29.2100 cm Series 757 Size M16 Standards UL File No. E60079-0/E60079-1/E60079-7CSA CAN/CSA E60079-0CAN/CSA E60079-1CAN/CSA E60079-7cCSAus 113642Certification Type 757Zones 1 and 2Gas - ATEX/IEC Protection: Ex d IICEx e IIEx nR IIRoHS Compliant Type Blanking Hexagon Head UNSPSC 39121311 UPC 11 78138114131 UPC 12 781381141314 Width 7.30 in Width [Metric] 18.5420 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Nickel Material Brass Thread Size M20x1.5 For Use To Close Any UnUsed Entries In Electrical Equipment In general care should be taken to ensure that a suitable entry thread sealing washer is also selected and installed, where applicable, to ensure that an effective seal is made at the entry, thereby maintaining the integrity of the enclosure or equipment IP rating; Catering to both Industrial and hazardous area applications the range covers a number of different design types which are supplied in both metallic and non-metallic forms; IP68 when fitted with a CMP O-Ring entry thread sealing washer Catering to hazardous area applications, the range of products covers a number of different design types which are supplied in both metal and plastic Increased safety and flameproof Zone 1 and 2 - 21 and 22 II 2 GD ATEX/IECEx IP66/68, cCSAus Class 1, Group A, B, C and D, Zone 1, AEx de II Ex d/Ex e/Ex nR triple certification M16 x M20 MNPT
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use To Close Any UnUsed Entries In Electrical Equipment |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 757DM25 |
| Connection | M20 MNPT |
| Country of Origin | GB |
| Currency | USD |
| Enclosure | NEMA 4X, IP68 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0020 lb |
| Gross Weight per Pack Metric | 0.00 |
| Gross Weight UOM Metric | kg |
| Height | 0.03 in |
| Height [Metric] | 0.7620 mm |
| Length | 11.50 in |
| Length [Metric] | 29.2100 cm |
| Series | 757 |
| Size | M16 |
| Standards | UL File No. E60079-0/E60079-1/E60079-7CSA CAN/CSA E60079-0CAN/CSA E60079-1CAN/CSA E60079-7cCSAus 113642Certification Type 757Zones 1 and 2Gas - ATEX/IEC Protection: Ex d IICEx e IIEx nR IIRoHS Compliant |
| Type | Blanking Hexagon Head |
| UNSPSC | 39121311 |
| UPC 11 | 78138114131 |
| UPC 12 | 781381141314 |
| Width | 7.30 in |
| Width [Metric] | 18.5420 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Nickel |
| Material | Brass |
| Thread Size | M20x1.5 |
| For Use To Close Any UnUsed Entries In Electrical Equipment |
| In general care should be taken to ensure that a suitable entry thread sealing washer is also selected and installed, where applicable, to ensure that an effective seal is made at the entry, thereby maintaining the integrity of the enclosure or equipment IP rating; Catering to both Industrial and hazardous area applications the range covers a number of different design types which are supplied in both metallic and non-metallic forms; IP68 when fitted with a CMP O-Ring entry thread sealing washer |
| Catering to hazardous area applications, the range of products covers a number of different design types which are supplied in both metal and plastic |
| Increased safety and flameproof |
| Zone 1 and 2 - 21 and 22 II 2 GD ATEX/IECEx IP66/68, cCSAus Class 1, Group A, B, C and D, Zone 1, AEx de II |
| Ex d/Ex e/Ex nR triple certification |
| M16 x M20 MNPT |
