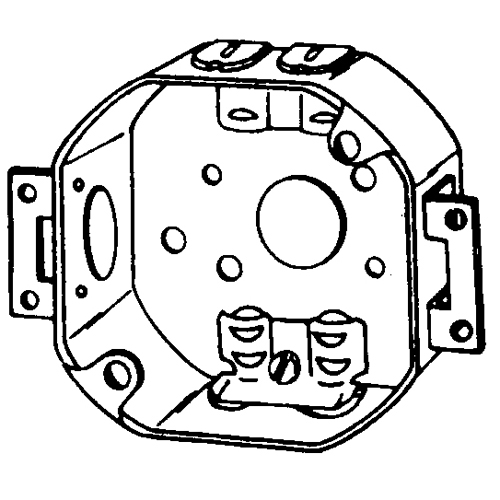

Appleton® 561LXE ETP Octagon Box, Steel, 15.5 cu-in, 7 Outlets, 7 Knockouts
Octagon Boxes
543472
MFG #: 561LXE
Appleton™
33.62000
/ ea
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality componets you need.
- Catalog URL - Appleton_M1_250_Catalog.pdf(Catalog URL)
- http://www.egseg.com(Seller Home Page URL)
- Seller Home Page URL - home.aspx(Seller Home Page URL)
- Spec Sheet URL - 11301_ILP5F1DHSNK3UO86.pdf(Spec Sheet URL)
- Spec Sheet URL - 4-octagon-boxes-extension-rings-covers-catalog-pages-en-724288.pdf(Spec Sheet URL)
- Warranty 1 URL - Appleton_1200_Warranty.pdf(Warranty 1 URL)
- Warranty URL - Appleton_1200_Warranty.pdf(Warranty URL)
- Features
| With 1/2 And 21/32 IN Conduit Knockouts, Nonmetallic Sheathed CL 26 Cable Clamps, Plaster Ears |
| Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 Volts |
| Unless otherwise noted all concentric or eccentric knockouts are 1/2 - 3/4 in combinations |
| Single and double gang metallic outlet and switch boxes are acceptable for use in two-hour fire rated walls |
| Other boxes provided with flat ground tapped hole, except plenum boxes |
| 62 lb per 100 |
| Side knockouts: (2) 1/2 in |
| End knockouts: (4) 21/32 in |
| Bottom knockouts: (1) 1/2 in |
| Plaster Ears |
| Commercial product |
| 0.0625 in minimum thickness |
| AISI/SAE 1008 Stee |
