Appleton™
Appleton® 561L ETP Octagon Box, Steel, 15.5 cu-in, 7 Outlets, 7 Knockouts
Custom_Product_Images_Illustration
Appleton™

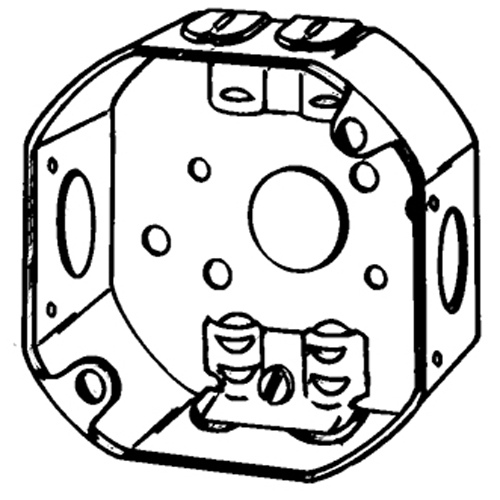

Appleton® 561L ETP Octagon Box, Steel, 15.5 cu-in, 7 Outlets, 7 Knockouts
SKU18159
MFGR #561L
Your Cost: $3.41/ea
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality componets you need.
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality componets you need.
ARRA Compliant Y Buy American Compliant Y Catalog Number 561L Country of Origin US Cubic Capacity 15.5 CU-IN in³ Currency USD Diameter 4 in Enclosure Type NEMA FB-1/OS-1 EU RoHS Indicator C Finish Pre-Galvanized Gross Weight Per Pack 0.5500 lb Gross Weight per Pack Metric 0.25 Gross Weight UOM Metric kg Height 0.17 in Height [Metric] 4.4196 mm Knockout Size 1/2 in, 21/32 in Length 18.90 in Length [Metric] 48.0060 cm Mounting Type Bolt-On/Threaded Number Of Outlet 7 Shape Octagon Size 4 X 4 X 1.5 IN in Standard UL E18095 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514A/514B/E2527 Sub Brand ETP Type Octagonal Box UNSPSC 39121308 UPC 11 68785576520 UPC 12 68785576520 Width 8.50 in Width [Metric] 21.5900 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 15.5 in³ Dimensions 1-1/2 in D Material Steel Number of Knockouts 7 Number of Outlets 7 With 1/2 And 21/32 IN Conduit Knockouts, Nonmetallic Sheathed CL 26 Cable Clamps Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 Volts Unless otherwise noted all concentric or eccentric knockouts are 1/2 - 3/4 in combinations Single and double gang metallic outlet and switch boxes are acceptable for use in two-hour fire rated walls Other boxes provided with flat ground tapped hole, except plenum boxes 57 lb per 100 Side knockouts: (2) 1/2 in End knockouts: (4) 21/32 in Bottom knockouts: (1) 1/2 in Commercial product 0.0625 in minimum thickness AISI/SAE 1008 Steel
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | 561L |
| Country of Origin | US |
| Cubic Capacity | 15.5 CU-IN in³ |
| Currency | USD |
| Diameter | 4 in |
| Enclosure Type | NEMA FB-1/OS-1 |
| EU RoHS Indicator | C |
| Finish | Pre-Galvanized |
| Gross Weight Per Pack | 0.5500 lb |
| Gross Weight per Pack Metric | 0.25 |
| Gross Weight UOM Metric | kg |
| Height | 0.17 in |
| Height [Metric] | 4.4196 mm |
| Knockout Size | 1/2 in, 21/32 in |
| Length | 18.90 in |
| Length [Metric] | 48.0060 cm |
| Mounting Type | Bolt-On/Threaded |
| Number Of Outlet | 7 |
| Shape | Octagon |
| Size | 4 X 4 X 1.5 IN in |
| Standard | UL E18095 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514A/514B/E2527 |
| Sub Brand | ETP |
| Type | Octagonal Box |
| UNSPSC | 39121308 |
| UPC 11 | 68785576520 |
| UPC 12 | 68785576520 |
| Width | 8.50 in |
| Width [Metric] | 21.5900 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 15.5 in³ |
| Dimensions | 1-1/2 in D |
| Material | Steel |
| Number of Knockouts | 7 |
| Number of Outlets | 7 |
| With 1/2 And 21/32 IN Conduit Knockouts, Nonmetallic Sheathed CL 26 Cable Clamps |
| Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 Volts |
| Unless otherwise noted all concentric or eccentric knockouts are 1/2 - 3/4 in combinations |
| Single and double gang metallic outlet and switch boxes are acceptable for use in two-hour fire rated walls |
| Other boxes provided with flat ground tapped hole, except plenum boxes |
| 57 lb per 100 |
| Side knockouts: (2) 1/2 in |
| End knockouts: (4) 21/32 in |
| Bottom knockouts: (1) 1/2 in |
| Commercial product |
| 0.0625 in minimum thickness |
| AISI/SAE 1008 Steel |
