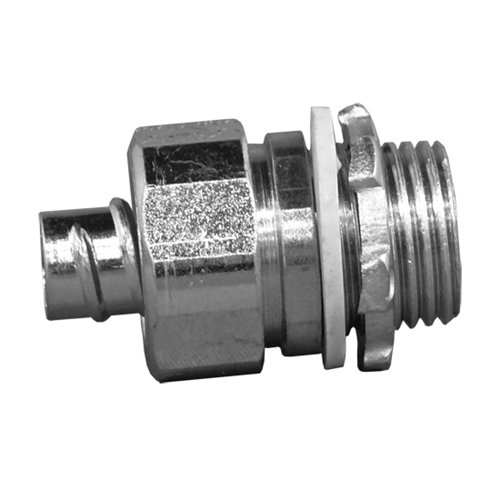

Appleton® 4QS-38T Type 4QS Straight Conduit Connector With Insulated Throat, 3/8 in Trade, Steel, Zinc Plated
Custom_Product_Images_Illustration
Appleton® 4QS-38T Type 4QS Straight Conduit Connector With Insulated Throat, 3/8 in Trade, Steel, Zinc Plated
SKU62320
MFGR #4QS38T
Your Cost: $7.44/ea
Appleton® Conduit Connector, Type 4QS Straight, 3/8 in Trade, Steel, Zinc Plated, 0.54 in Dia
Appleton® Conduit Connector, Type 4QS Straight, 3/8 in Trade, Steel, Zinc Plated, 0.54 in Dia
Application For Terminating Liquidtight Flexible Metal Conduit to an Enclosure ARRA Compliant N Buy American Compliant N Catalog Number 4QS38T Color Metallic Connection Male NPT Taper Threaded Country of Origin CN Currency USD Dimensions 2.72 in H x 0.54 in W Environmental Conditions Raintight EU RoHS Indicator C Gross Weight Per Pack 0.1100 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Height 0.14 in Height [Metric] 3.4544 mm Insulation Insulated Throat Length 5.50 in Length [Metric] 13.9700 cm NEMA Rating FB-1 Series 4QS Size 0.375 IN in Standard UL Standard: 514B; UL Listed: E11853; CSA Standard: C22.2 No. 18.3; CSA Certified: 009795; NEMA: FB-1 Standards UL 514BUL File No. E11853CSA C22.2 No. 18.3CSA 009795RoHS CompliantClass I, Div 2 Sub Brand ETP Suitable For Use With Liquidtight Flexible Metallic Conduit Type Liquidtight Oiltight Raintight UNSPSC 39121420 UPC 11 68785512053 UPC 12 687855120536 Width 5.30 in Width [Metric] 13.4620 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Angle Straight Finish Zinc Electroplated Material Steel Trade Size 3/8 in For Terminating Liquidtight Flexible Metal Conduit to an Enclosure 1/2 IN Trade Size Straight Liquidtight Connector, For 3/8 IN Knockout, Tapered Male Hub Threads - NPT, Insulated Throat, Suitable for Wet Locations, Suitable for use in Class I, Division 2 Locations, Furnished with Locknut and Sealing Ring Compact, slim diameter with small turning radius Furnished with locknut and sealing ring Long ferrule prevents pullout and tight bend conduit "pop-out" Tapered threaded male NPT hub Suitable for wet locations Reusable ferrule 1-1/2 in L thread 1/2 in KO
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Terminating Liquidtight Flexible Metal Conduit to an Enclosure |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 4QS38T |
| Color | Metallic |
| Connection | Male NPT Taper Threaded |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 2.72 in H x 0.54 in W |
| Environmental Conditions | Raintight |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.1100 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Height | 0.14 in |
| Height [Metric] | 3.4544 mm |
| Insulation | Insulated Throat |
| Length | 5.50 in |
| Length [Metric] | 13.9700 cm |
| NEMA Rating | FB-1 |
| Series | 4QS |
| Size | 0.375 IN in |
| Standard | UL Standard: 514B; UL Listed: E11853; CSA Standard: C22.2 No. 18.3; CSA Certified: 009795; NEMA: FB-1 |
| Standards | UL 514BUL File No. E11853CSA C22.2 No. 18.3CSA 009795RoHS CompliantClass I, Div 2 |
| Sub Brand | ETP |
| Suitable For Use With | Liquidtight Flexible Metallic Conduit |
| Type | Liquidtight Oiltight Raintight |
| UNSPSC | 39121420 |
| UPC 11 | 68785512053 |
| UPC 12 | 687855120536 |
| Width | 5.30 in |
| Width [Metric] | 13.4620 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Angle | Straight |
| Finish | Zinc Electroplated |
| Material | Steel |
| Trade Size | 3/8 in |
| For Terminating Liquidtight Flexible Metal Conduit to an Enclosure |
| 1/2 IN Trade Size Straight Liquidtight Connector, For 3/8 IN Knockout, Tapered Male Hub Threads - NPT, Insulated Throat, Suitable for Wet Locations, Suitable for use in Class I, Division 2 Locations, Furnished with Locknut and Sealing Ring |
| Compact, slim diameter with small turning radius |
| Furnished with locknut and sealing ring |
| Long ferrule prevents pullout and tight bend conduit "pop-out" |
| Tapered threaded male NPT hub |
| Suitable for wet locations |
| Reusable ferrule |
| 1-1/2 in L thread |
| 1/2 in KO |
