Appleton® 384DP Gangable Square Corner Switch Box With CL-26, Steel, 18 cu-in, 11 Knockouts

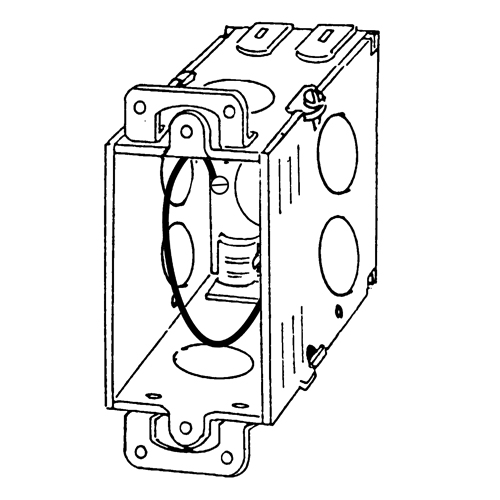

Custom_Product_Images_Illustration
Appleton® 384DP Gangable Square Corner Switch Box With CL-26, Steel, 18 cu-in, 11 Knockouts
SKU428837
MFGR #384DP
$/ea
Appleton® Switch Box, Gangable Square Corner, 11 Knockouts, 1/2 to 21/32 in Knockout, 18 cu-in, Steel, Pre-Galvanized, 3 in H x 2 in W x 3-1/2 in D
Appleton® Switch Box, Gangable Square Corner, 11 Knockouts, 1/2 to 21/32 in Knockout, 18 cu-in, Steel, Pre-Galvanized, 3 in H x 2 in W x 3-1/2 in D
Application For Use With Non-Metallic Sheathed Cable ARRA Compliant Y Buy American Compliant N Cable Entry Size Knockout Catalog Number 384DP Country of Origin MX Cubic Capacity 18 CU-IN in³ Currency USD EU RoHS Indicator C Finish Pre-Galvanized Gross Weight Per Pack 20.4500 lb Gross Weight per Pack Metric 9.28 Gross Weight UOM Metric kg Height 9.70 in Height [Metric] 24.6380 cm Knockout Size 1/2 in, 21/32 in Knockouts 5 Length 10.90 in Length [Metric] 27.6860 cm Size 2 X 3.5 X 3 in Standard UL Standard 514A; UL Listed E2527; Nema OS-1 Standards UL 514A, 514B, 514D, E2527, NEMA FB-1, OS-1 Standard Sub Brand ETP Type Gangable Square Corner UNSPSC 39121306 UPC 11 68785500184 UPC 12 68785500184 Width 10.70 in Width [Metric] 27.1780 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 18 in³ Dimensions 3 in H x 2 in W x 3-1/2 in D Material Steel Number of Knockouts 11 For Use With Non-Metallic Sheathed Cable Gangable, With 21/32 Openings on Ends and 1/2 IN Conduit Knockouts, Nonmetallic Sheathed CL-26 Cable Clamps, 3-1/2 IN Deep, Two Nail Holes Each Side, With Plaster Ears, Green Ground Wire Single and double gang metallic outlet and switch boxes are acceptable for use in two hour fire rated walls Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC All concentric or eccentric knockouts are 1/2 to 3/4 in combinations Plaster ears support GFCI and decorative cover plates Provided with green ground screw and 10 in long 12 AWG solid, insulated green ground wire (4) 1/2 in side, (2) 1/2 in, (4) 21/32 in end, (1) 1/2 in bottom knockouts
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Non-Metallic Sheathed Cable |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Cable Entry Size | Knockout |
| Catalog Number | 384DP |
| Country of Origin | MX |
| Cubic Capacity | 18 CU-IN in³ |
| Currency | USD |
| EU RoHS Indicator | C |
| Finish | Pre-Galvanized |
| Gross Weight Per Pack | 20.4500 lb |
| Gross Weight per Pack Metric | 9.28 |
| Gross Weight UOM Metric | kg |
| Height | 9.70 in |
| Height [Metric] | 24.6380 cm |
| Knockout Size | 1/2 in, 21/32 in |
| Knockouts | 5 |
| Length | 10.90 in |
| Length [Metric] | 27.6860 cm |
| Size | 2 X 3.5 X 3 in |
| Standard | UL Standard 514A; UL Listed E2527; Nema OS-1 |
| Standards | UL 514A, 514B, 514D, E2527, NEMA FB-1, OS-1 Standard |
| Sub Brand | ETP |
| Type | Gangable Square Corner |
| UNSPSC | 39121306 |
| UPC 11 | 68785500184 |
| UPC 12 | 68785500184 |
| Width | 10.70 in |
| Width [Metric] | 27.1780 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 18 in³ |
| Dimensions | 3 in H x 2 in W x 3-1/2 in D |
| Material | Steel |
| Number of Knockouts | 11 |
| For Use With Non-Metallic Sheathed Cable |
| Gangable, With 21/32 Openings on Ends and 1/2 IN Conduit Knockouts, Nonmetallic Sheathed CL-26 Cable Clamps, 3-1/2 IN Deep, Two Nail Holes Each Side, With Plaster Ears, Green Ground Wire |
| Single and double gang metallic outlet and switch boxes are acceptable for use in two hour fire rated walls |
| Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC |
| All concentric or eccentric knockouts are 1/2 to 3/4 in combinations |
| Plaster ears support GFCI and decorative cover plates |
| Provided with green ground screw and 10 in long 12 AWG solid, insulated green ground wire |
| (4) 1/2 in side, (2) 1/2 in, (4) 21/32 in end, (1) 1/2 in bottom knockouts |
