Appleton™

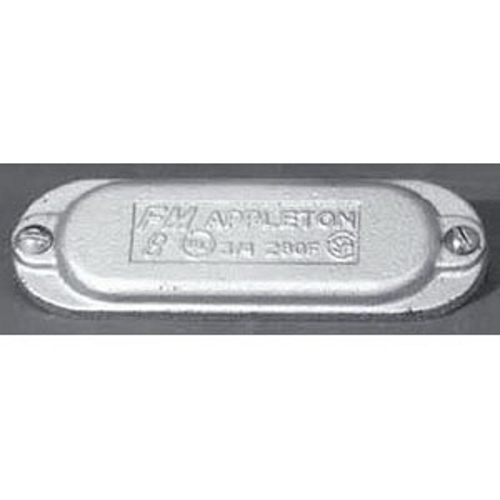

Appleton® 380FIG Conduit Body Cover, 1 in Hub, For Use With FM8 Unilet® Conduit Outlet Bodies, Cast Grayloy Iron

Custom_Product_Images_Illustration

Appleton™

SKU956466

MFGR #380FIG

Your Cost: $26.01/ea

Appleton® Conduit Body Cover, 1 in Hub, For Use With: FM8 Unilet® Conduit Outlet Bodies, Cast Grayloy Iron, Tri-Coated

: Application
For FM8 Conduit Outlet Bodies
ARRA Compliant
C
Buy American Compliant
N
Catalog Number
380FIG
Color
Gray
Country of Origin
US
Currency
USD
Enclosure
NEMA 3R
EU RoHS Indicator
C
Form
8
Gross Weight Per Pack
0.4750 lb
Gross Weight per Pack Metric
0.22
Gross Weight UOM Metric
kg
Height
0.25 in
Height [Metric]
6.3500 mm
Length
8.00 in
Length [Metric]
20.3200 cm
Mounting
Screw-In
Standard
UL 514A, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, Class I, Division 2, NEMA FB-1
Standards
UL 514A, File No. E2527 Listed, Class I, Division 2, CSA C22.2 No. 18.3, 065183 Certified, NEMA FB-1 Compliant
Type
Form-IN-Place Clip Cover With Integral Gasket
UNSPSC
39131708
UPC 11
78138116802
UPC 12
781381168021
Width
5.50 in
Width [Metric]
13.9700 cm
Stock Status
NONSTOCK
Brand
Appleton™
Manufacturer
Appleton
Finish
Zinc Electroplate/Chromate/Epoxy Powder Coat
Hub Size
1 in
Material
Cast Grayloy-Iron
: Catalog
Seller Home Page
Spec Sheet
Warranty
: For FM8 Conduit Outlet Bodies
: Can be used as replacement covers for installed bodies or in new installations; Benefit from superior sealing, reduced inventory parts and faster installation times; Captive pan-head screws; High-strength, corrosion and weather resistant; Approved for wet locations

Captive pan-head screws

Fits all body configurations and sizes from 1/2 to 4 in

Triple coat of zinc electroplate, chromate and epoxy powder coated finish

Application	For FM8 Conduit Outlet Bodies
ARRA Compliant	C
Buy American Compliant	N
Catalog Number	380FIG
Color	Gray
Country of Origin	US
Currency	USD
Enclosure	NEMA 3R
EU RoHS Indicator	C
Form	8
Gross Weight Per Pack	0.4750 lb
Gross Weight per Pack Metric	0.22
Gross Weight UOM Metric	kg
Height	0.25 in
Height [Metric]	6.3500 mm
Length	8.00 in
Length [Metric]	20.3200 cm
Mounting	Screw-In
Standard	UL 514A, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, Class I, Division 2, NEMA FB-1
Standards	UL 514A, File No. E2527 Listed, Class I, Division 2, CSA C22.2 No. 18.3, 065183 Certified, NEMA FB-1 Compliant
Type	Form-IN-Place Clip Cover With Integral Gasket
UNSPSC	39131708
UPC 11	78138116802
UPC 12	781381168021
Width	5.50 in
Width [Metric]	13.9700 cm
Stock Status	NONSTOCK
Brand	Appleton™
Manufacturer	Appleton
Finish	Zinc Electroplate/Chromate/Epoxy Powder Coat
Hub Size	1 in
Material	Cast Grayloy-Iron
