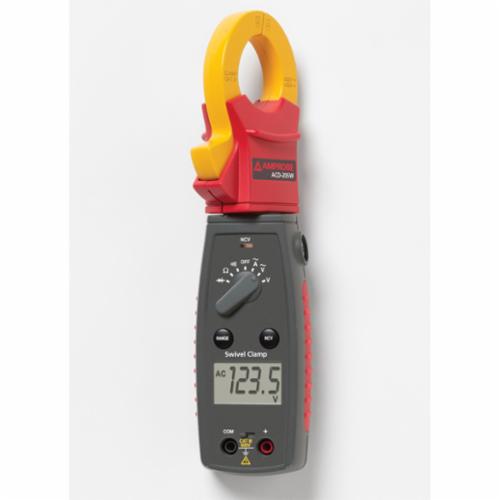

Amprobe® Swivel ACD-20SW Clamp Multimeter, 600 VAC/VDC, 400 A, 40 MOhm, 50 to 60 Hz, 30 mm Jaw, LCD Display
Custom_Product_Images_Illustration
Fluke®
Amprobe® Swivel ACD-20SW Clamp Multimeter, 600 VAC/VDC, 400 A, 40 MOhm, 50 to 60 Hz, 30 mm Jaw, LCD Display
SKU597243
MFGR #ACD-20SW
Your Cost: $124.99/ea
Amprobe?s new ACD-20SW Swivel™ Clamp Meter features a patented 180-degree rotating head clamp design allowing easy views of measurements in tight or inconvenient to reach places. Simply rotate the body of the clamp meter to get an unobstructed view of the LCD display. Feature rich, measuring AC/DC currents, voltage, resistance and capacitance as well as CAT III 600V safety ratings make this clamp on meter something you should swivel to see
Amprobe?s new ACD-20SW Swivel™ Clamp Meter features a patented 180-degree rotating head clamp design allowing easy views of measurements in tight or inconvenient to reach places. Simply rotate the body of the clamp meter to get an unobstructed view of the LCD display. Feature rich, measuring AC/DC currents, voltage, resistance and capacitance as well as CAT III 600V safety ratings make this clamp on meter something you should swivel to see
AC Current Accuracy +/-2% RDG + 10 Digits at 50 to 60 Hz AC Response 500 ms Alternate Catalog Number 3472723 Amperage Rating 40/400 A Application Clamp meter for HVAC and electrical applications ARRA Compliant U Buy American Compliant U Catalog Number ACD-20SW Country of Origin TW Counts 3999 Currency USD Dimensions 12 in L x 5.3 in W x 1.2 in H Enclosure Hard Plastic EU RoHS Indicator Y Gross Weight Per Pack 1.4200 lb Gross Weight per Pack Metric 0.64 Gross Weight UOM Metric kg Height 4.33 in Height [Metric] 10.9982 cm Length 14.37 in Length [Metric] 36.4998 cm Model ACD-20SW Operating Temperature 32 to 122 °F Power Source 1.5 VDC AAA Alkaline Battery Safety Rating CAT III 600 V Standard EN61010-1:2001; EN61010- 2-032:2002; CAT III 600 V, class II; pollution deg.2 and EN61326-1 (EMC compliance) Standards RoHS CompliantCE MarkedcULus ListedEN61010-1:2001N61010- 2-032:2002EN61326-1 (EMC Compliance)PROP65: This product is in compliance with PROP65; it is not known to contain any chemicals associated with this regulation Type Clamp Meter UNSPSC 41111905 UPC 11 09596949882 UPC 12 095969498821 Voltage Accuracy +/-1.2% RDG + 5 Digits, +/-1.5% RDG + 5 Digits at 600 VAC, +/-0.5% RDG + 2 Digits at 600 VDC Voltage Rating 4/40/400/600//400m/4/40/400/600 VAC//VDC Width 7.44 in Width [Metric] 18.8976 cm Stock Status NONSTOCK Brand Fluke® Manufacturer Fluke Corporation Display Type 3-3/4 Digits LCD Electrical Ratings 40 to 400 A, 4 to 600 VAC/VDC, 400 mVDC Frequency Rating 50 to 500 Hz Jaw Capacity 1.18 in Resistance 400 Ohm, 4 to 400 kOhm, 4 to 40 MOhm Clamp meter for HVAC and electrical applications 180 degree rotating head for the perfect display viewing Advanced VoltTect™ non-contact voltage detection Slim jaw design with one hand operation Measures AC current up to 400 A, AC/DC voltage up to 600 VAC/VDC, resistance and capacitance Audible continuity Temperature measurement Auto power off function Auto and manual ranging respectively for quick checks and precise measurements Data hold, diode test Accommodates conductors up to 1.18 in Dia +/-1% RDG + 4 digits at 400 Ohm to 400 kOhm, +/-1.5% RDG + 4 digits at 4 MOhm, +/-3% RDG + 5 digits at 40 MOhm resistance accuracy
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| AC Current Accuracy | +/-2% RDG + 10 Digits at 50 to 60 Hz |
| AC Response | 500 ms |
| Alternate Catalog Number | 3472723 |
| Amperage Rating | 40/400 A |
| Application | Clamp meter for HVAC and electrical applications |
| ARRA Compliant | U |
| Buy American Compliant | U |
| Catalog Number | ACD-20SW |
| Country of Origin | TW |
| Counts | 3999 |
| Currency | USD |
| Dimensions | 12 in L x 5.3 in W x 1.2 in H |
| Enclosure | Hard Plastic |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1.4200 lb |
| Gross Weight per Pack Metric | 0.64 |
| Gross Weight UOM Metric | kg |
| Height | 4.33 in |
| Height [Metric] | 10.9982 cm |
| Length | 14.37 in |
| Length [Metric] | 36.4998 cm |
| Model | ACD-20SW |
| Operating Temperature | 32 to 122 °F |
| Power Source | 1.5 VDC AAA Alkaline Battery |
| Safety Rating | CAT III 600 V |
| Standard | EN61010-1:2001; EN61010- 2-032:2002; CAT III 600 V, class II; pollution deg.2 and EN61326-1 (EMC compliance) |
| Standards | RoHS CompliantCE MarkedcULus ListedEN61010-1:2001N61010- 2-032:2002EN61326-1 (EMC Compliance)PROP65: This product is in compliance with PROP65; it is not known to contain any chemicals associated with this regulation |
| Type | Clamp Meter |
| UNSPSC | 41111905 |
| UPC 11 | 09596949882 |
| UPC 12 | 095969498821 |
| Voltage Accuracy | +/-1.2% RDG + 5 Digits, +/-1.5% RDG + 5 Digits at 600 VAC, +/-0.5% RDG + 2 Digits at 600 VDC |
| Voltage Rating | 4/40/400/600//400m/4/40/400/600 VAC//VDC |
| Width | 7.44 in |
| Width [Metric] | 18.8976 cm |
| Stock Status | NONSTOCK |
| Brand | Fluke® |
| Manufacturer | Fluke Corporation |
| Display Type | 3-3/4 Digits LCD |
| Electrical Ratings | 40 to 400 A, 4 to 600 VAC/VDC, 400 mVDC |
| Frequency Rating | 50 to 500 Hz |
| Jaw Capacity | 1.18 in |
| Resistance | 400 Ohm, 4 to 400 kOhm, 4 to 40 MOhm |
| Clamp meter for HVAC and electrical applications |
| 180 degree rotating head for the perfect display viewing |
| Advanced VoltTect™ non-contact voltage detection |
| Slim jaw design with one hand operation |
| Measures AC current up to 400 A, AC/DC voltage up to 600 VAC/VDC, resistance and capacitance |
| Audible continuity |
| Temperature measurement |
| Auto power off function |
| Auto and manual ranging respectively for quick checks and precise measurements |
| Data hold, diode test |
| Accommodates conductors up to 1.18 in Dia |
| +/-1% RDG + 4 digits at 400 Ohm to 400 kOhm, +/-1.5% RDG + 4 digits at 4 MOhm, +/-3% RDG + 5 digits at 40 MOhm resistance accuracy |
