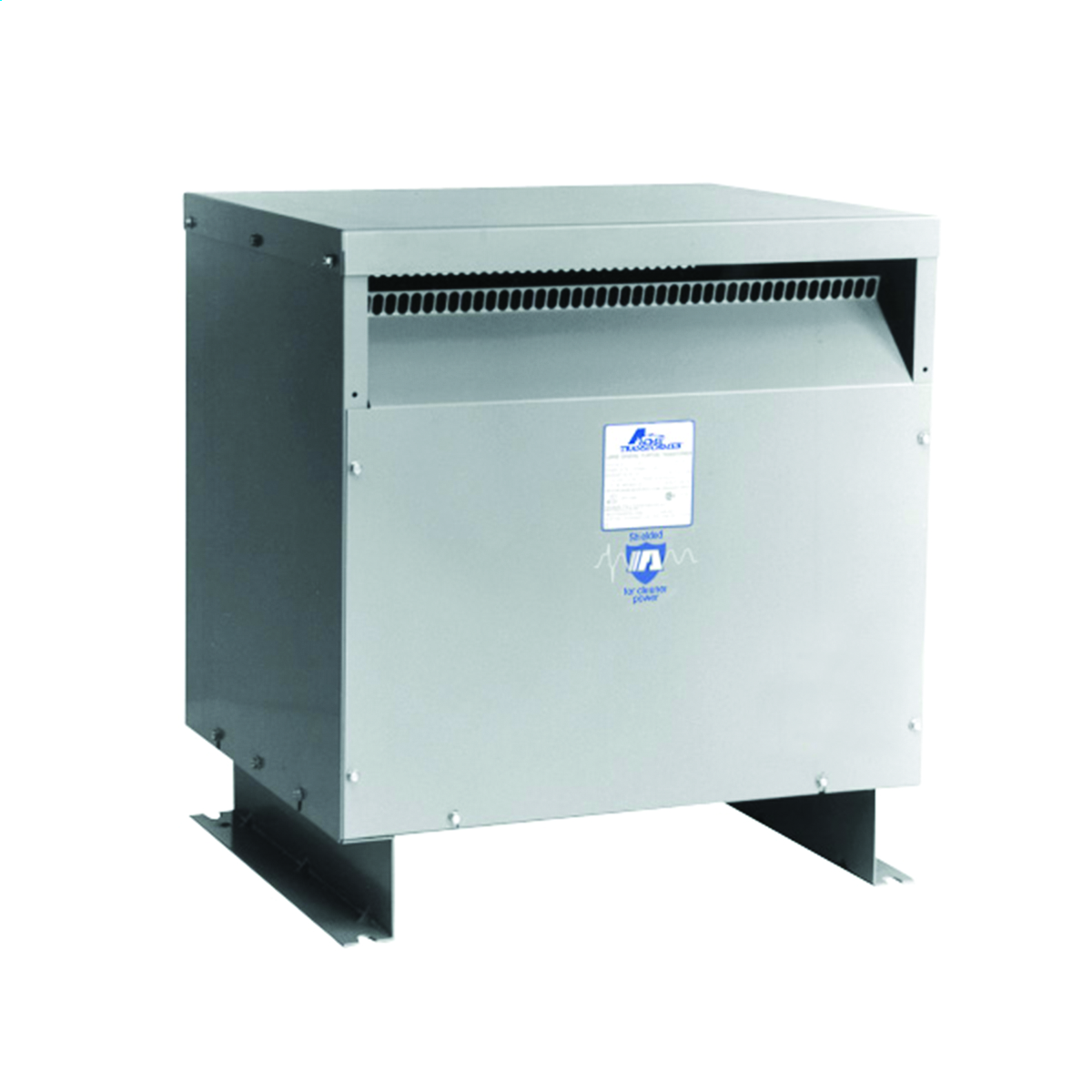

Acme Electric® TP530213S Dry Ventilated Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 75 kVA
Custom_Product_Images_Illustration
Acme Electric® TP530213S Dry Ventilated Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 75 kVA
SKU321673
MFGR #TP530213S
Your Cost: $4,188.34/ea
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
Application Ventilated ARRA Compliant C Buy American Compliant C Catalog Number TP530213S Connection Type Copper Lead Wire Country of Origin MX Currency USD Dimensions 35.47 in H x 31.9 in W x 26.88 in D Efficiency 1.00 Enclosure Type NEMA 3R Gross Weight Per Pack 430.0000 lb Gross Weight per Pack Metric 222.72 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330040 Height 35.47 in Height [Metric] 90.0938 cm KVA Rating 75 Length 26.88 in Length [Metric] 68.2752 cm Mounting Floor Mounting Type Floor Number Of Phases 1 Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506CSA C22.2 File No. 47DOE 10 CFR Part 431 2016 Temperature Rating 150 °C Type Dry Distribution Ventilated UNSPSC 39121001 UPC 11 04750308795 UPC 12 047503087954 Width 31.90 in Width [Metric] 81.0260 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 1 Power Rating 75 kVA Primary Voltage 240/480 VAC Secondary Voltage 120/240 VAC Ventilated Equipped with an electrostatic shield and optional weather shield, this transformer ensures robust protection and reliable performance in diverse environmental conditions. Ground studs for use with non-metallic conduit Quiet operation with sound levels well below NEMA standards Electrostatic shield for enhanced protection Encapsulated core and coil Four windings
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Ventilated |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | TP530213S |
| Connection Type | Copper Lead Wire |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 35.47 in H x 31.9 in W x 26.88 in D |
| Efficiency | 1.00 |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 430.0000 lb |
| Gross Weight per Pack Metric | 222.72 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330040 |
| Height | 35.47 in |
| Height [Metric] | 90.0938 cm |
| KVA Rating | 75 |
| Length | 26.88 in |
| Length [Metric] | 68.2752 cm |
| Mounting | Floor |
| Mounting Type | Floor |
| Number Of Phases | 1 |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506CSA C22.2 File No. 47DOE 10 CFR Part 431 2016 |
| Temperature Rating | 150 °C |
| Type | Dry Distribution Ventilated |
| UNSPSC | 39121001 |
| UPC 11 | 04750308795 |
| UPC 12 | 047503087954 |
| Width | 31.90 in |
| Width [Metric] | 81.0260 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 75 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120/240 VAC |
| Ventilated |
| Equipped with an electrostatic shield and optional weather shield, this transformer ensures robust protection and reliable performance in diverse environmental conditions. |
| Ground studs for use with non-metallic conduit |
| Quiet operation with sound levels well below NEMA standards |
| Electrostatic shield for enhanced protection |
| Encapsulated core and coil |
| Four windings |
