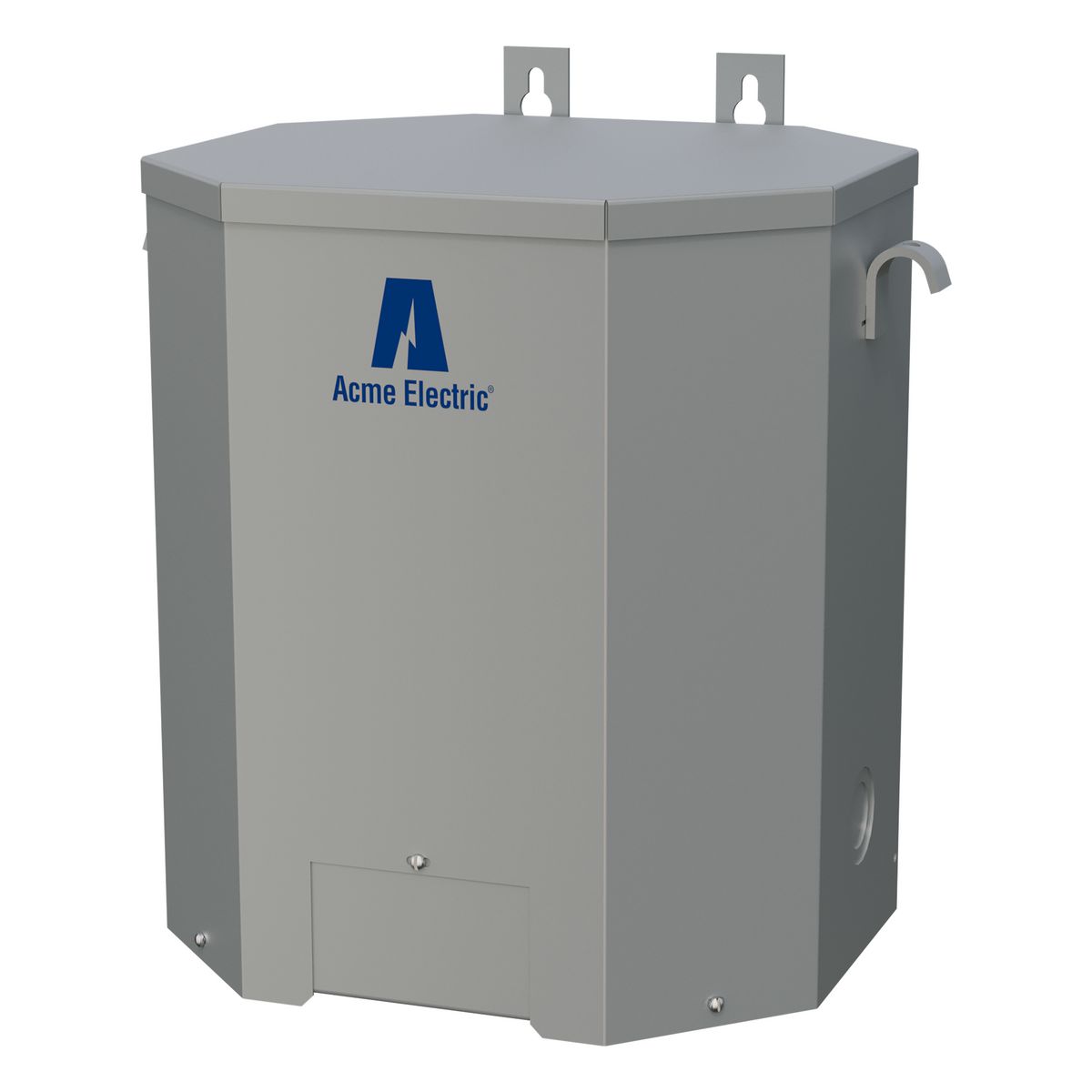

Acme Electric® TF279265S Isolation transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 10 kVA, 50/60 Hz, 1 Phase
Custom_Product_Images_Illustration
Acme Electric® TF279265S Isolation transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 10 kVA, 50/60 Hz, 1 Phase
SKU506074
MFGR #TF279265S
Your Cost: $2,809.31/ea
Acme Electric® Isolation transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 10 kVA, 50/60 Hz, 1 Phase, Wire Lead Screw, Wall Mount, Class H/180 deg C, NEMA 3R, 115 deg C, 13.5 in H x 10.84 in W x 125 in D
Acme Electric® Isolation transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 10 kVA, 50/60 Hz, 1 Phase, Wire Lead Screw, Wall Mount, Class H/180 deg C, NEMA 3R, 115 deg C, 13.5 in H x 10.84 in W x 125 in D
Application Encapsulated ARRA Compliant C Buy American Compliant C Catalog Number TF279265S Connection Type Wire Lead Country of Origin MX Currency USD Dimensions 15.19 in H x 13.5 in W x 10.84 in D Enclosure Type NEMA 3R Gross Weight Per Pack 125.0000 lb Gross Weight per Pack Metric 67.13 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 15.19 in Height [Metric] 38.5826 cm Insulation Class H/180 deg C KVA Rating 10 Length 10.84 in Length [Metric] 27.5336 cm Mounting Wall Mounting Type Wall Number Of Phases 1 Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506CSA C22.2 No. 47CSA C802.2CE MarkedPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov Temperature Rating 115 °C Type Dry Distribution Encapsulated Low Voltage UNSPSC 39121001 UPC 11 04750342093 UPC 12 047503420935 Width 13.50 in Width [Metric] 34.2900 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 50/60 Hz Phase 1 Power Rating 10 kVA Primary Voltage 240/480 VAC Secondary Voltage 120/240 VAC Encapsulated Ground studs for use with non-metallic conduit Quiet operation with sound levels well below NEMA standards Electrostatic shield for enhanced protection Export model 190/208/220/240 x 380/416/440/480 VAC primary voltage
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Encapsulated |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | TF279265S |
| Connection Type | Wire Lead |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 15.19 in H x 13.5 in W x 10.84 in D |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 125.0000 lb |
| Gross Weight per Pack Metric | 67.13 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 15.19 in |
| Height [Metric] | 38.5826 cm |
| Insulation | Class H/180 deg C |
| KVA Rating | 10 |
| Length | 10.84 in |
| Length [Metric] | 27.5336 cm |
| Mounting | Wall |
| Mounting Type | Wall |
| Number Of Phases | 1 |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506CSA C22.2 No. 47CSA C802.2CE MarkedPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Temperature Rating | 115 °C |
| Type | Dry Distribution Encapsulated Low Voltage |
| UNSPSC | 39121001 |
| UPC 11 | 04750342093 |
| UPC 12 | 047503420935 |
| Width | 13.50 in |
| Width [Metric] | 34.2900 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 1 |
| Power Rating | 10 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120/240 VAC |
| Encapsulated |
| Ground studs for use with non-metallic conduit |
| Quiet operation with sound levels well below NEMA standards |
| Electrostatic shield for enhanced protection |
| Export model |
| 190/208/220/240 x 380/416/440/480 VAC primary voltage |
