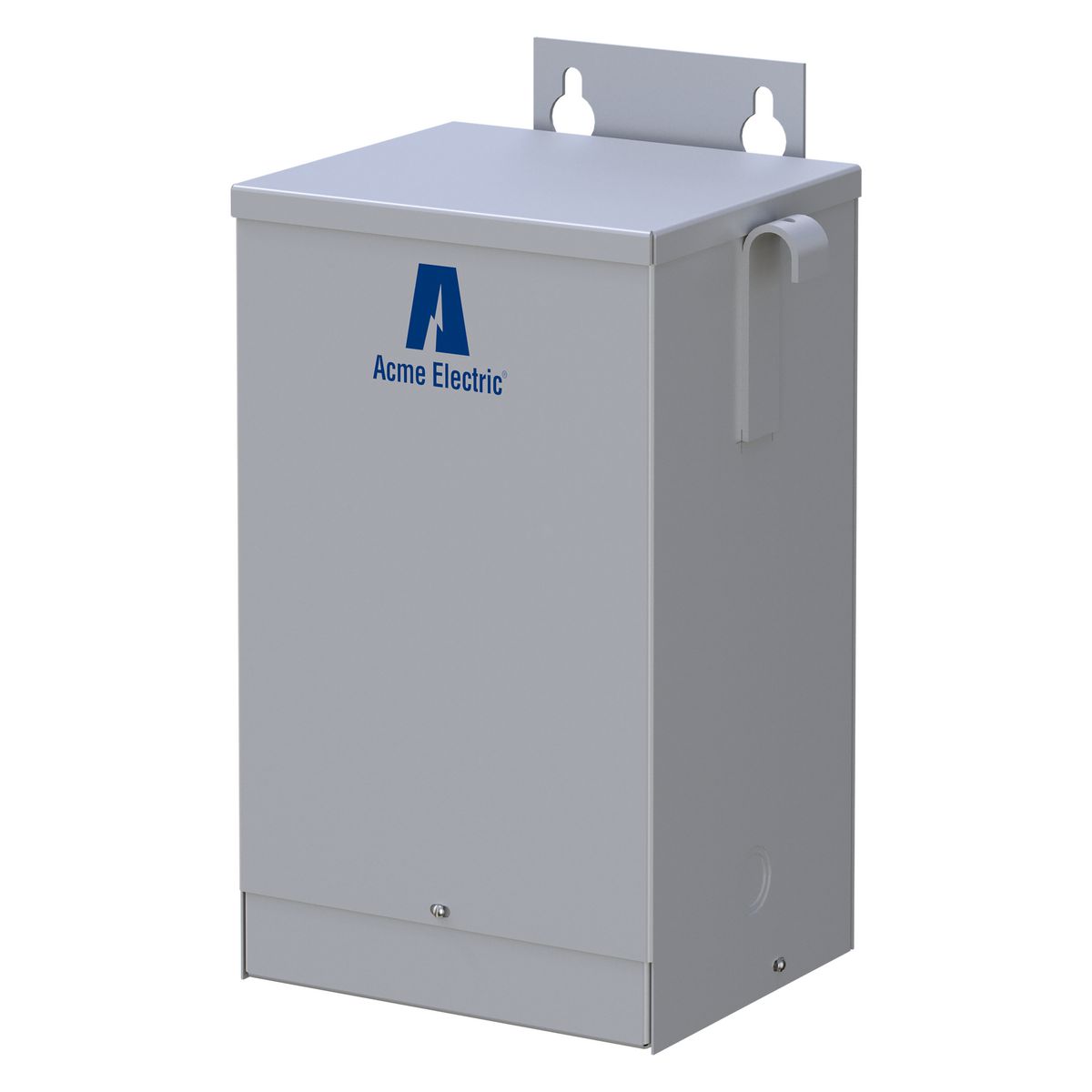

Acme Electric® TF279263S Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 5 kVA, 50/60 Hz
Custom_Product_Images_Illustration
Acme Electric® TF279263S Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 5 kVA, 50/60 Hz
SKU68577
MFGR #TF279263S
$/ea
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
ARRA Compliant C Buy American Compliant C Catalog Number TF279263S Connection Wire Lead Screw Terminal Cooling Air Cooled/Dry Country of Origin MX Currency USD Enclosure NEMA 3R Steel EU RoHS Indicator C Gross Volume per Pack Metric 18.11 Gross Volume UOM Metric kg Gross Weight Per Pack 75.0000 lb Gross Weight per Pack Metric 38.56 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 14.38 in Height [Metric] 36.5252 cm Length 7.13 in Length [Metric] 18.1102 cm Mounting Wall Returnable Y Standard UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, CE Certified, OSHA Compliant, ANSI, IEEE Standards UL 506, File No E79947V1, 50B8, X3221 Listed, CSA Certified, CE Certified, OSHA Compliant, ANSI Approved, IEEE Temperature Rating 115 °C Type Distribution Transformer UNSPSC 39121001 UPC 11 04750340006 UPC 12 047503400067 Width 10.31 in Width [Metric] 26.1874 cm Winding Aluminum, Configuration: Primary - Two Winding, Secondary - Two Winding Stock Status NORMALLY STOCKED Brand Acme Electric Manufacturer Acme Electric Frequency Rating 50/60 Hz Phase 1 Primary Voltage 190/208/220/240/380/416/440/480 V Secondary Voltage 120/240 V Encapsulated core and coil; Shielded for cleaner power; Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration; Quiet operation with sound levels well below NEMA standards; Impedance: 3.21 PCT; 10-year limited warranty Encapsulated core and coil Shielded for cleaner power Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration Quiet operation with sound levels well below NEMA standards Export model 190/208/220/240 x 380/416/440/480 VAC primary volt Steel enclosure Air cooled/dry cooling Two winding primary, two winding secondary configuration Aluminum winding Epoxy encapsulated
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | TF279263S |
| Connection | Wire Lead Screw Terminal |
| Cooling | Air Cooled/Dry |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 3R Steel |
| EU RoHS Indicator | C |
| Gross Volume per Pack Metric | 18.11 |
| Gross Volume UOM Metric | kg |
| Gross Weight Per Pack | 75.0000 lb |
| Gross Weight per Pack Metric | 38.56 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 14.38 in |
| Height [Metric] | 36.5252 cm |
| Length | 7.13 in |
| Length [Metric] | 18.1102 cm |
| Mounting | Wall |
| Returnable | Y |
| Standard | UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, CE Certified, OSHA Compliant, ANSI, IEEE |
| Standards | UL 506, File No E79947V1, 50B8, X3221 Listed, CSA Certified, CE Certified, OSHA Compliant, ANSI Approved, IEEE |
| Temperature Rating | 115 °C |
| Type | Distribution Transformer |
| UNSPSC | 39121001 |
| UPC 11 | 04750340006 |
| UPC 12 | 047503400067 |
| Width | 10.31 in |
| Width [Metric] | 26.1874 cm |
| Winding | Aluminum, Configuration: Primary - Two Winding, Secondary - Two Winding |
| Stock Status | NORMALLY STOCKED |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 1 |
| Primary Voltage | 190/208/220/240/380/416/440/480 V |
| Secondary Voltage | 120/240 V |
| Encapsulated core and coil; Shielded for cleaner power; Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration; Quiet operation with sound levels well below NEMA standards; Impedance: 3.21 PCT; 10-year limited warranty |
| Encapsulated core and coil |
| Shielded for cleaner power |
| Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration |
| Quiet operation with sound levels well below NEMA standards |
| Export model |
| 190/208/220/240 x 380/416/440/480 VAC primary volt |
| Steel enclosure |
| Air cooled/dry cooling |
| Two winding primary, two winding secondary configuration |
| Aluminum winding |
| Epoxy encapsulated |
