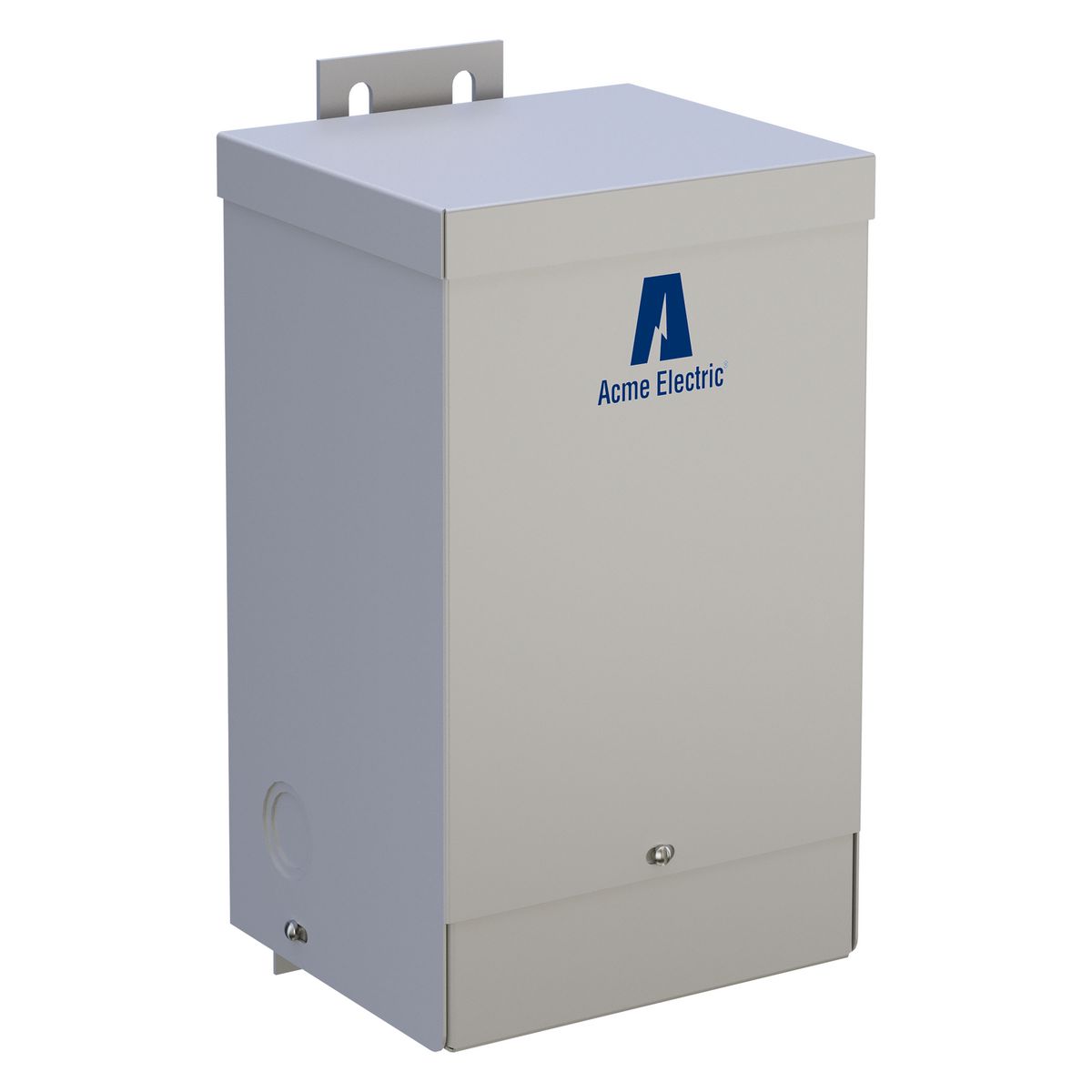

Acme Electric® TF279261S Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 2 kVA, 50/60 Hz
Custom_Product_Images_Illustration
Acme Electric® TF279261S Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 2 kVA, 50/60 Hz
SKU177414
MFGR #TF279261S
$/ea
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
ARRA Compliant C Buy American Compliant C Catalog Number TF279261S Connection Type Lead Wire Country of Origin MX Currency USD Dimensions 5.5 in L x 5.13 in W x 13 in H Enclosure Type NEMA 3R Gross Weight Per Pack 38.8250 lb Gross Weight per Pack Metric 18.60 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 13.00 in Height [Metric] 33.0200 cm Housing Material Steel Insulation Class H/180 deg C Length 5.13 in Length [Metric] 13.0302 cm Mounting Wall Mounting Type Wall Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506 File No. E79947V1UL Control Number 50B8UL Insulation Number X3221CSA CertifiedCE MarkedOSHA ApprovedANSI SpecifiedIEEE CertifiedPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov Temperature Rating 115 °C Type Dry UNSPSC 39121001 UPC 11 04750340002 UPC 12 047503400029 Width 5.50 in Width [Metric] 13.9700 cm Stock Status NORMALLY STOCKED Brand Acme Electric Manufacturer Acme Electric Frequency Rating 50/60 Hz Phase 1 Power Rating 2 kVA Primary Voltage 190/208/220/240/380/416/440/480 VAC Secondary Voltage 120/240 VAC Encapsulated core and coil; Shielded for cleaner power; Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration; Quiet operation with sound levels well below NEMA standards; 10-year limited warranty Encapsulated core and coil Shielded for cleaner power Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration Quiet operation with sound levels well below NEMA standards UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration Steel enclosure Air cooled/dry cooling Two winding primary, two winding secondary configuration Aluminum windings Epoxy encapsulated Export model
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | TF279261S |
| Connection Type | Lead Wire |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5.5 in L x 5.13 in W x 13 in H |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 38.8250 lb |
| Gross Weight per Pack Metric | 18.60 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 13.00 in |
| Height [Metric] | 33.0200 cm |
| Housing Material | Steel |
| Insulation | Class H/180 deg C |
| Length | 5.13 in |
| Length [Metric] | 13.0302 cm |
| Mounting | Wall |
| Mounting Type | Wall |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506 File No. E79947V1UL Control Number 50B8UL Insulation Number X3221CSA CertifiedCE MarkedOSHA ApprovedANSI SpecifiedIEEE CertifiedPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Temperature Rating | 115 °C |
| Type | Dry |
| UNSPSC | 39121001 |
| UPC 11 | 04750340002 |
| UPC 12 | 047503400029 |
| Width | 5.50 in |
| Width [Metric] | 13.9700 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 1 |
| Power Rating | 2 kVA |
| Primary Voltage | 190/208/220/240/380/416/440/480 VAC |
| Secondary Voltage | 120/240 VAC |
| Encapsulated core and coil; Shielded for cleaner power; Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration; Quiet operation with sound levels well below NEMA standards; 10-year limited warranty |
| Encapsulated core and coil |
| Shielded for cleaner power |
| Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration |
| Quiet operation with sound levels well below NEMA standards |
| UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration |
| Steel enclosure |
| Air cooled/dry cooling |
| Two winding primary, two winding secondary configuration |
| Aluminum windings |
| Epoxy encapsulated |
| Export model |
