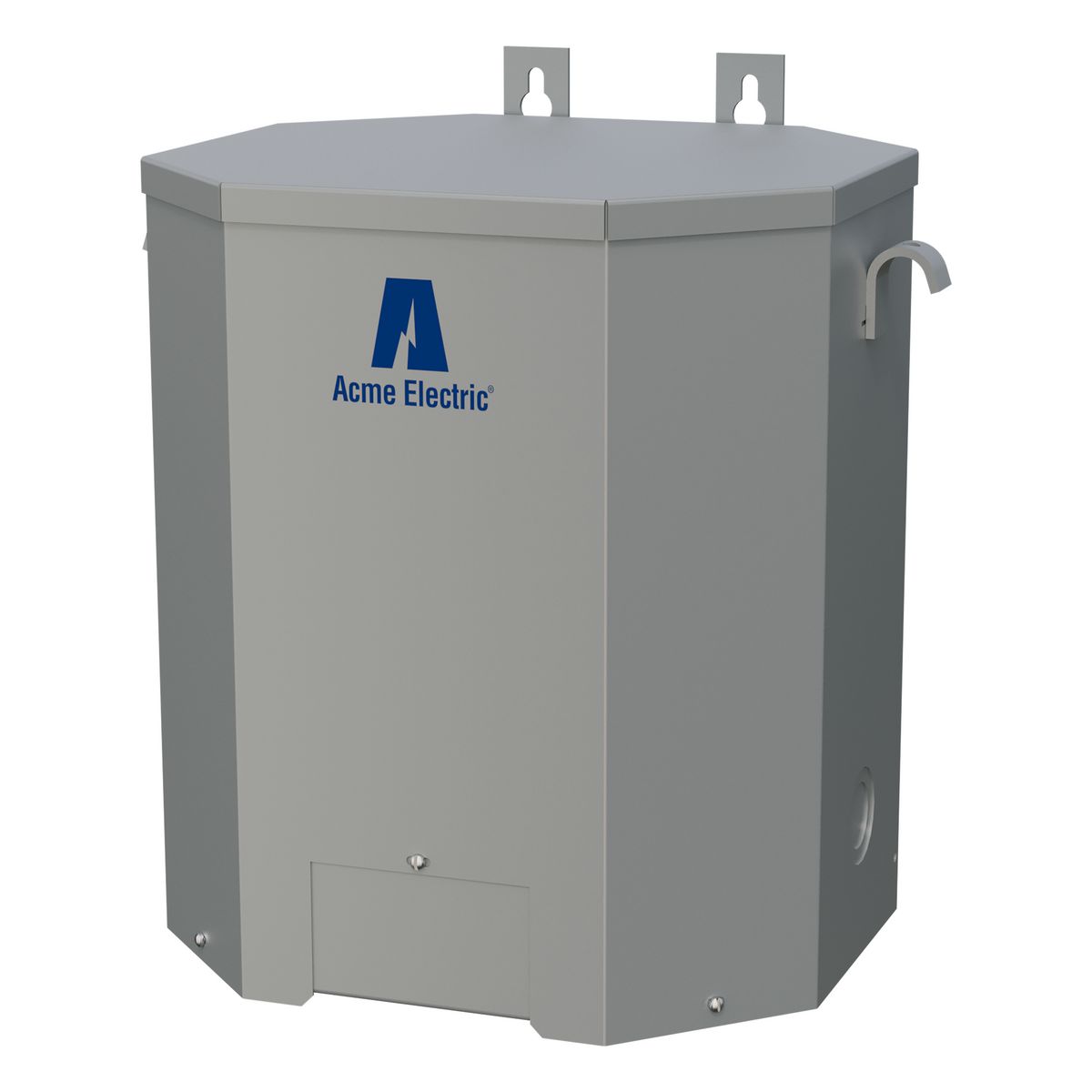

Acme Electric® TC535163S Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 10 kVA, 60 Hz
Custom_Product_Images_Illustration
Acme Electric® TC535163S Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 10 kVA, 60 Hz
SKU1317582
MFGR #TC535163S
Your Cost: $1,780.61/ea
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
Application Open Core & Coil ARRA Compliant C Buy American Compliant C Catalog Number TC535163S Connection Type Copper Lead Wire Country of Origin MX Currency USD Dimensions 15.19 in H x 13.5 in W x 10.84 in D Enclosure Type NEMA 3R Gross Weight Per Pack 143.0000 lb Gross Weight per Pack Metric 64.86 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 15.19 in Height [Metric] 38.5826 cm KVA Rating 10 Length 10.84 in Length [Metric] 27.5336 cm Mounting Wall Mounting Type Wall Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506CSA C22.2 No 47DOE 10 CFR Part 431 2016PROP65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Temperature Rating 115 °C Type Dry UNSPSC 39121001 UPC 11 04750319101 UPC 12 047503191019 Width 13.50 in Width [Metric] 34.2900 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 1 Power Rating 10 kVA Primary Voltage 240/480 VAC Secondary Voltage 120/240 VAC Open Core & Coil Ground studs for use with non-metallic conduit Quiet operation with sound levels well below NEMA standards Electrostatic shield for enhanced protection Encapsulated core and coil Four windings
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Open Core & Coil |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | TC535163S |
| Connection Type | Copper Lead Wire |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 15.19 in H x 13.5 in W x 10.84 in D |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 143.0000 lb |
| Gross Weight per Pack Metric | 64.86 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 15.19 in |
| Height [Metric] | 38.5826 cm |
| KVA Rating | 10 |
| Length | 10.84 in |
| Length [Metric] | 27.5336 cm |
| Mounting | Wall |
| Mounting Type | Wall |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506CSA C22.2 No 47DOE 10 CFR Part 431 2016PROP65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Temperature Rating | 115 °C |
| Type | Dry |
| UNSPSC | 39121001 |
| UPC 11 | 04750319101 |
| UPC 12 | 047503191019 |
| Width | 13.50 in |
| Width [Metric] | 34.2900 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 10 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120/240 VAC |
| Open Core & Coil |
| Ground studs for use with non-metallic conduit |
| Quiet operation with sound levels well below NEMA standards |
| Electrostatic shield for enhanced protection |
| Encapsulated core and coil |
| Four windings |
