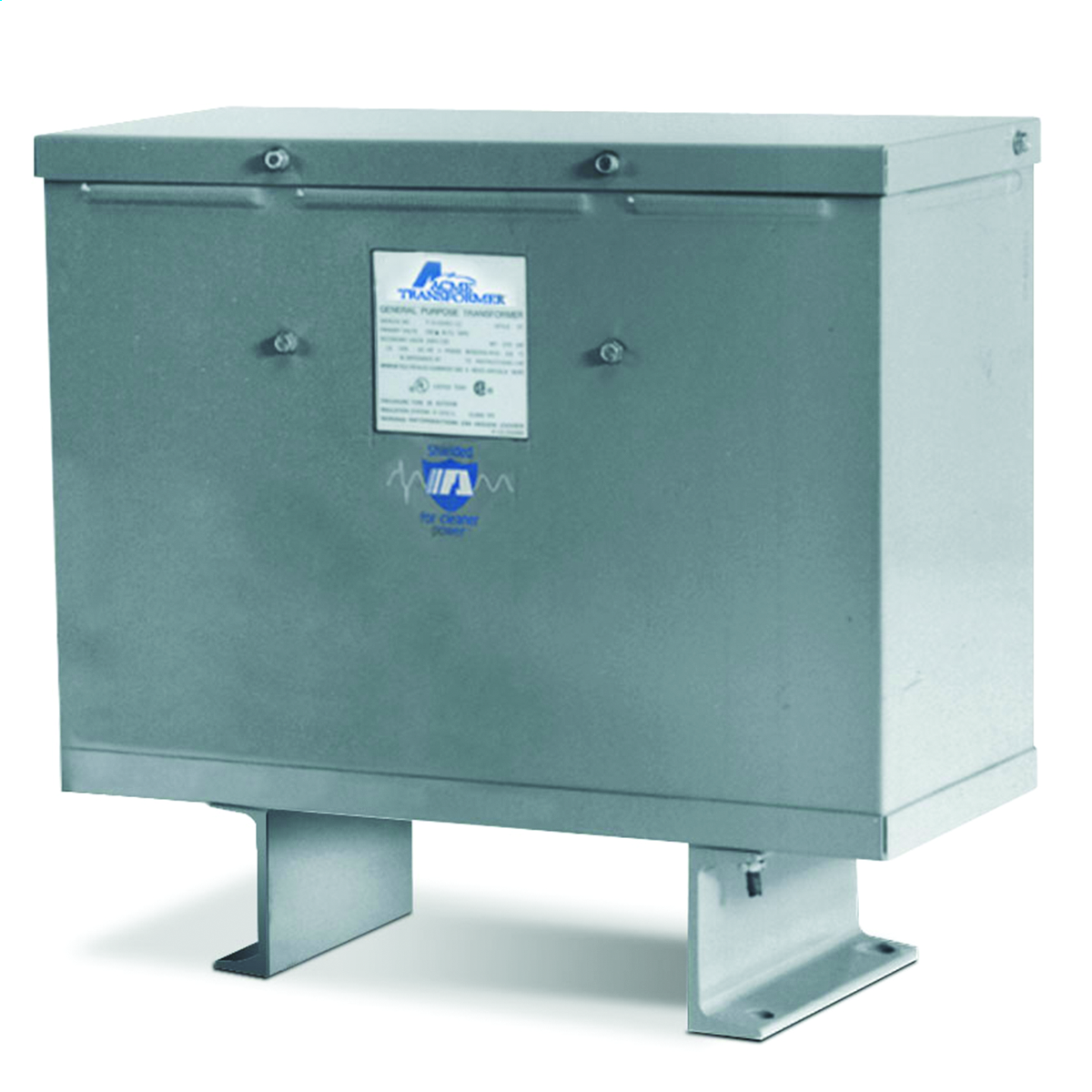

Acme Electric® T3533111S Dry Distribution Transformer, 480 VAC Delta Primary, 208Y/120 VAC Secondary, 15 kVA, 60 Hz
Custom_Product_Images_Illustration
Acme Electric® T3533111S Dry Distribution Transformer, 480 VAC Delta Primary, 208Y/120 VAC Secondary, 15 kVA, 60 Hz
SKU4359
MFGR #T3533111S
$/ea
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
ARRA Compliant C Buy American Compliant C Catalog Number T3533111S Connection Type Lead Wire Country of Origin MX Currency USD Dimensions 20.3 in L x 9.03 in W x 18.86 in H Enclosure Type NEMA 3R Gross Weight Per Pack 250.0000 lb Gross Weight per Pack Metric 112.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 18.86 in Height [Metric] 47.9044 cm Housing Material Steel Insulation Class H/180 deg C Length 9.03 in Length [Metric] 22.9362 cm Maximum Amperage Rating 25 A Mounting Floor Mounting Type Floor Returnable Y Temperature Rating 115 °C Type Dry UNSPSC 39121001 UPC 11 04750373365 UPC 12 047503733653 Width 20.30 in Width [Metric] 51.5620 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 3 Power Rating 15 kVA Primary Voltage 480 VAC Secondary Voltage 208/120 VAC Encapsulatedecore and coil; Completely enclosed suitable for indoor/outdoor service; Consult selection charts for details; Excellent for dust or lint laden atmosphere; Encapsulated electrical grade silica and resincompound completely encloses the core and coil; Encapsulation seals out all moisture and air, eliminating corrosion and insulation deterioration; High efficiency and excellent regulation; Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front, lifting ears for easy installation; Wiring connections can be made outside of wiring compartment due to the use of flexible leads; Core and coil assembly completely encapsulated in polyester or epoxy seals out all moisture, eliminating corrosion and deterioration of insulation; Electrostatic shielding; Energy efficient; 10-year limited warranty; Encapsulated core and coil Completely enclosed suitable for indoor outdoor service Excellent for dust or lint laden atmosphere Encapsulated electrical grade silica and resin compound completely encloses the core and coil Encapsulation seals out all moisture and air, eliminating corrosion and insulation deterioration High efficiency and excellent regulation Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front, lifting ears for easy installation Wiring connections can be made outside of wiring compartment due to the use of flexible leads Core and coil assembly completely encapsulated in polyester or epoxy seals out all moisture, eliminating corrosion and deterioration of insulation Electrostatic shielding Energy efficient Delta primary, wye secondary configuration Aluminum windings Epoxy encapsulated
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | T3533111S |
| Connection Type | Lead Wire |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 20.3 in L x 9.03 in W x 18.86 in H |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 250.0000 lb |
| Gross Weight per Pack Metric | 112.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 18.86 in |
| Height [Metric] | 47.9044 cm |
| Housing Material | Steel |
| Insulation | Class H/180 deg C |
| Length | 9.03 in |
| Length [Metric] | 22.9362 cm |
| Maximum Amperage Rating | 25 A |
| Mounting | Floor |
| Mounting Type | Floor |
| Returnable | Y |
| Temperature Rating | 115 °C |
| Type | Dry |
| UNSPSC | 39121001 |
| UPC 11 | 04750373365 |
| UPC 12 | 047503733653 |
| Width | 20.30 in |
| Width [Metric] | 51.5620 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Power Rating | 15 kVA |
| Primary Voltage | 480 VAC |
| Secondary Voltage | 208/120 VAC |
| Encapsulatedecore and coil; Completely enclosed suitable for indoor/outdoor service; Consult selection charts for details; Excellent for dust or lint laden atmosphere; Encapsulated electrical grade silica and resincompound completely encloses the core and coil; Encapsulation seals out all moisture and air, eliminating corrosion and insulation deterioration; High efficiency and excellent regulation; Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front, lifting ears for easy installation; Wiring connections can be made outside of wiring compartment due to the use of flexible leads; Core and coil assembly completely encapsulated in polyester or epoxy seals out all moisture, eliminating corrosion and deterioration of insulation; Electrostatic shielding; Energy efficient; 10-year limited warranty; |
| Encapsulated core and coil |
| Completely enclosed suitable for indoor outdoor service |
| Excellent for dust or lint laden atmosphere |
| Encapsulated electrical grade silica and resin compound completely encloses the core and coil |
| Encapsulation seals out all moisture and air, eliminating corrosion and insulation deterioration |
| High efficiency and excellent regulation |
| Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front, lifting ears for easy installation |
| Wiring connections can be made outside of wiring compartment due to the use of flexible leads |
| Core and coil assembly completely encapsulated in polyester or epoxy seals out all moisture, eliminating corrosion and deterioration of insulation |
| Electrostatic shielding |
| Energy efficient |
| Delta primary, wye secondary configuration |
| Aluminum windings |
| Epoxy encapsulated |
