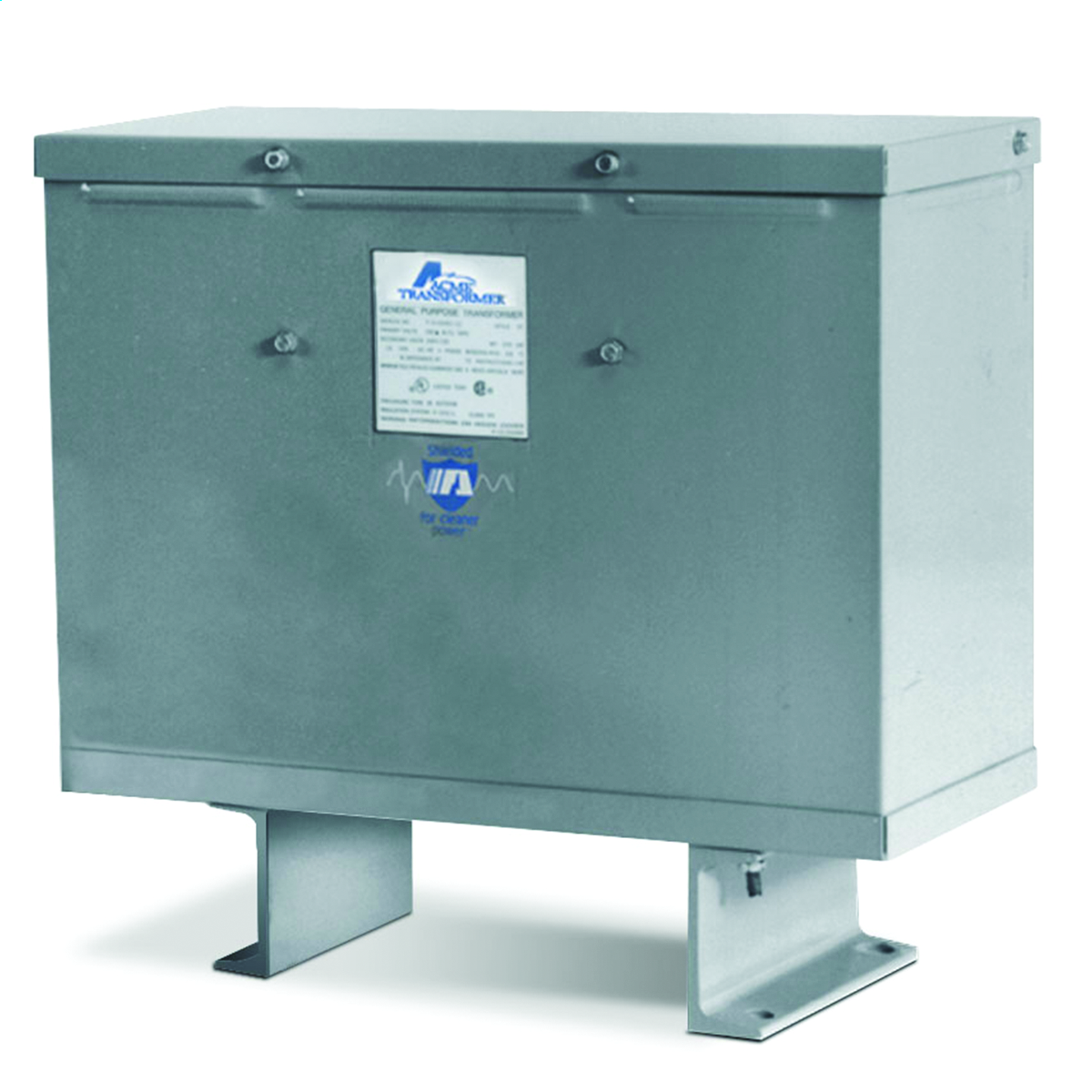

Acme Electric® T3527101 Transformer 3PH 75KVA 600-480
Custom_Product_Images_Illustration
Acme Electric® T3527101 Transformer 3PH 75KVA 600-480
SKU68591
MFGR #T3527101
Your Cost: $2,100.60/ea
75.0 kVA 600V Primary 480V Secondary, 60.0 kVA 480V Primary 380V Secondary Auto Transformer
75.0 kVA 600V Primary 480V Secondary, 60.0 kVA 480V Primary 380V Secondary Auto Transformer
Application Encapsulated ARRA Compliant C Buy American Compliant C Catalog Number T3527101 Connection Type Copper Lead Wire Country of Origin MX Currency USD Dimensions 18.86 in H x 20.3 in W x 9.03 in D Enclosure Type NEMA 3R Gross Weight Per Pack 300.0000 lb Gross Weight per Pack Metric 122.47 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330040 Height 18.86 in Height [Metric] 47.9044 cm Housing Material Stainless Steel Length 9.03 in Length [Metric] 22.9362 cm Mounting Floor Mounting Type Floor Number Of Phases 3 Number Of Taps 2 Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506E79947 Temperature Rating 115 °C Type Dry Encapsulated UNSPSC 39121027 UPC 11 04750308779 UPC 12 047503087794 Width 20.30 in Width [Metric] 51.5620 cm Stock Status NORMALLY STOCKED Brand Acme Electric Manufacturer Acme Electric Frequency Rating 50/60 Hz Phase 3 Power Rating 75/60 kVA Primary Voltage 600/480 VAC Secondary Voltage 480/380 VAC Encapsulated 75 k 5% tap steps 2 BNFC taps Fully encapsulated core and coil UL type 3R epoxy encapsulated Ground studs for use with non-metallic conduit Copper lead wire termination Quite operation with sound levels below NEMA standards
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Encapsulated |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | T3527101 |
| Connection Type | Copper Lead Wire |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 18.86 in H x 20.3 in W x 9.03 in D |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 300.0000 lb |
| Gross Weight per Pack Metric | 122.47 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330040 |
| Height | 18.86 in |
| Height [Metric] | 47.9044 cm |
| Housing Material | Stainless Steel |
| Length | 9.03 in |
| Length [Metric] | 22.9362 cm |
| Mounting | Floor |
| Mounting Type | Floor |
| Number Of Phases | 3 |
| Number Of Taps | 2 |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506E79947 |
| Temperature Rating | 115 °C |
| Type | Dry Encapsulated |
| UNSPSC | 39121027 |
| UPC 11 | 04750308779 |
| UPC 12 | 047503087794 |
| Width | 20.30 in |
| Width [Metric] | 51.5620 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 3 |
| Power Rating | 75/60 kVA |
| Primary Voltage | 600/480 VAC |
| Secondary Voltage | 480/380 VAC |
| Encapsulated |
| 75 k |
| 5% tap steps |
| 2 BNFC taps |
| Fully encapsulated core and coil |
| UL type 3R epoxy encapsulated |
| Ground studs for use with non-metallic conduit |
| Copper lead wire termination |
| Quite operation with sound levels below NEMA standards |
