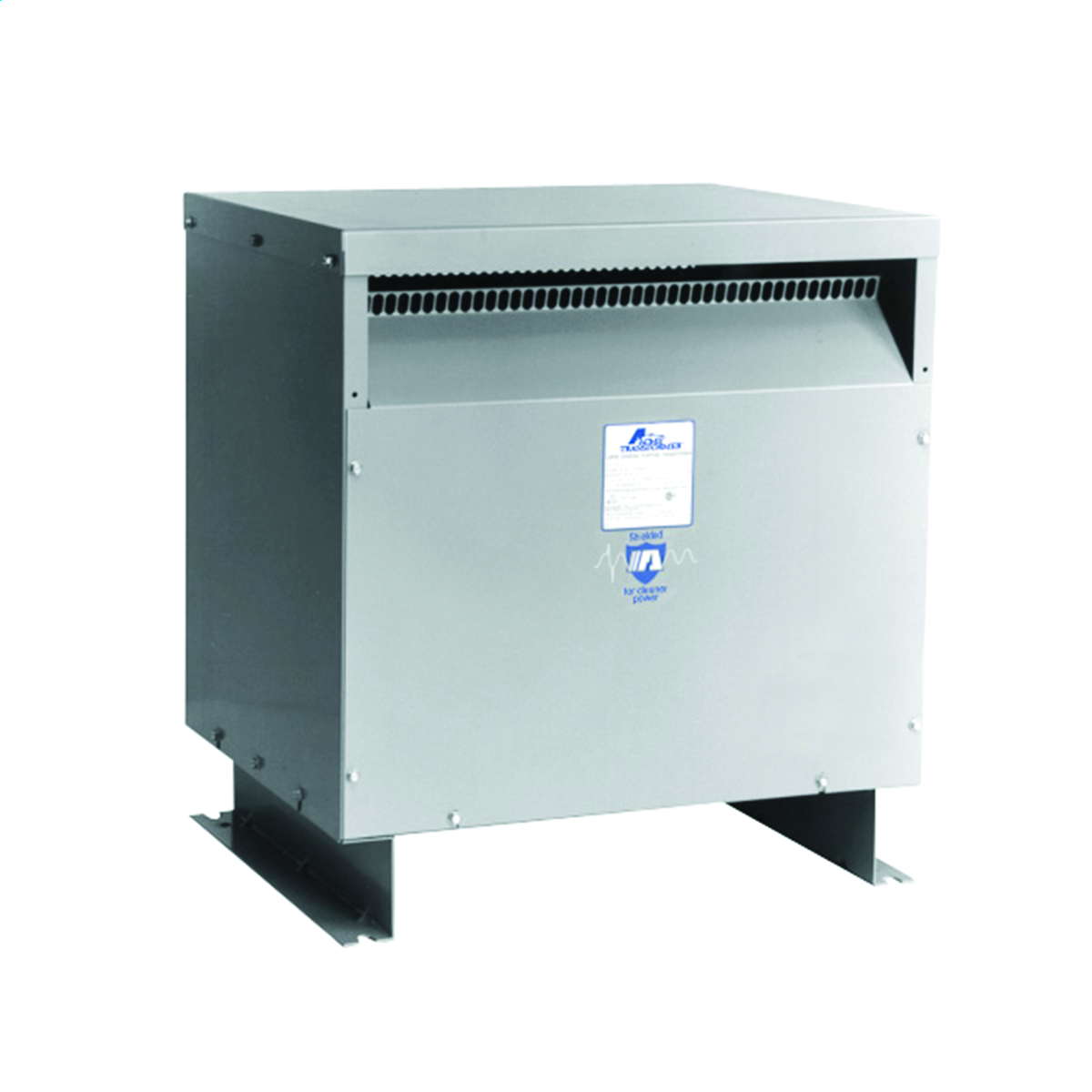

Acme Electric® T2A795533S Three Phase, 50-60 Hz, 380 Delta Primary Volts, 220Y-127 Secondary Volts
Acme Electric® T2A795533S Three Phase, 50-60 Hz, 380 Delta Primary Volts, 220Y-127 Secondary Volts
SKU1155771
MFGR #T2A795533S
Your Cost: $5,380.43/ea
LOW VOLTAGE DISTRIBUTION TRANSFORMER 3 PHASE 45KVA 380-220Y127
LOW VOLTAGE DISTRIBUTION TRANSFORMER 3 PHASE 45KVA 380-220Y127
Application Ventilated ARRA Compliant C Buy American Compliant C Catalog Number T2A795533S Connection Type Lugs/Bolt Down Terminals Country of Origin MX Currency USD Dimensions 22.37 in L x 28.15 in W x 29.41 in H Enclosure Type NEMA 2 Gross Weight Per Pack 526.0000 lb Gross Weight per Pack Metric 238.59 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330020 Height 29.41 in Height [Metric] 74.7014 cm Housing Material Steel Insulation Class R/220 deg C KVA Rating 45 Length 22.37 in Length [Metric] 56.8198 cm Mounting Floor Mounting Type Floor Number Of Taps 6 Returnable N Series T Series Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 47UL 506PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Temperature Rating 150 °C Type Dry Type Isolation Low Voltage Ventilated UNSPSC 39121001 UPC 11 04750379553 UPC 12 047503795538 Width 28.15 in Width [Metric] 71.5010 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 50 Hz Phase 3 Power Rating 45 kVA Primary Voltage 380 VAC Delta V Secondary Voltage 220Y/127 VAC Ventilated With weather shield, UL type 3R enclosure or type 2 enclosure without weather shield Extra large wiring compartment for easier installation and cooler case temperatures NEMA standard bus bar terminals, no special tools needed to make clearly marked connections tap changing easily accomplished with jumpers Aluminum windings for increased insulation life, cooler operation, lower losses Noise and vibration isolating pads standard to assure quiet operation Large permanently legible nameplates on front Single phase units can be banked for 3-phase service All units have ground studs for use with non-metallic conduit Suitable for wall or trapeze mounting wall brackets are available for units up to 50 kVA single and 75 kVA 3-phase Quiet operation with sound levels below NEMA standards Electrostatic shield for enhanced protection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Ventilated |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | T2A795533S |
| Connection Type | Lugs/Bolt Down Terminals |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 22.37 in L x 28.15 in W x 29.41 in H |
| Enclosure Type | NEMA 2 |
| Gross Weight Per Pack | 526.0000 lb |
| Gross Weight per Pack Metric | 238.59 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330020 |
| Height | 29.41 in |
| Height [Metric] | 74.7014 cm |
| Housing Material | Steel |
| Insulation | Class R/220 deg C |
| KVA Rating | 45 |
| Length | 22.37 in |
| Length [Metric] | 56.8198 cm |
| Mounting | Floor |
| Mounting Type | Floor |
| Number Of Taps | 6 |
| Returnable | N |
| Series | T Series |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 47UL 506PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Temperature Rating | 150 °C |
| Type | Dry Type Isolation Low Voltage Ventilated |
| UNSPSC | 39121001 |
| UPC 11 | 04750379553 |
| UPC 12 | 047503795538 |
| Width | 28.15 in |
| Width [Metric] | 71.5010 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 50 Hz |
| Phase | 3 |
| Power Rating | 45 kVA |
| Primary Voltage | 380 VAC Delta V |
| Secondary Voltage | 220Y/127 VAC |
| Ventilated |
| With weather shield, UL type 3R enclosure or type 2 enclosure without weather shield |
| Extra large wiring compartment for easier installation and cooler case temperatures |
| NEMA standard bus bar terminals, no special tools needed to make clearly marked connections tap changing easily accomplished with jumpers |
| Aluminum windings for increased insulation life, cooler operation, lower losses |
| Noise and vibration isolating pads standard to assure quiet operation |
| Large permanently legible nameplates on front |
| Single phase units can be banked for 3-phase service |
| All units have ground studs for use with non-metallic conduit |
| Suitable for wall or trapeze mounting wall brackets are available for units up to 50 kVA single and 75 kVA 3-phase |
| Quiet operation with sound levels below NEMA standards |
| Electrostatic shield for enhanced protection |
