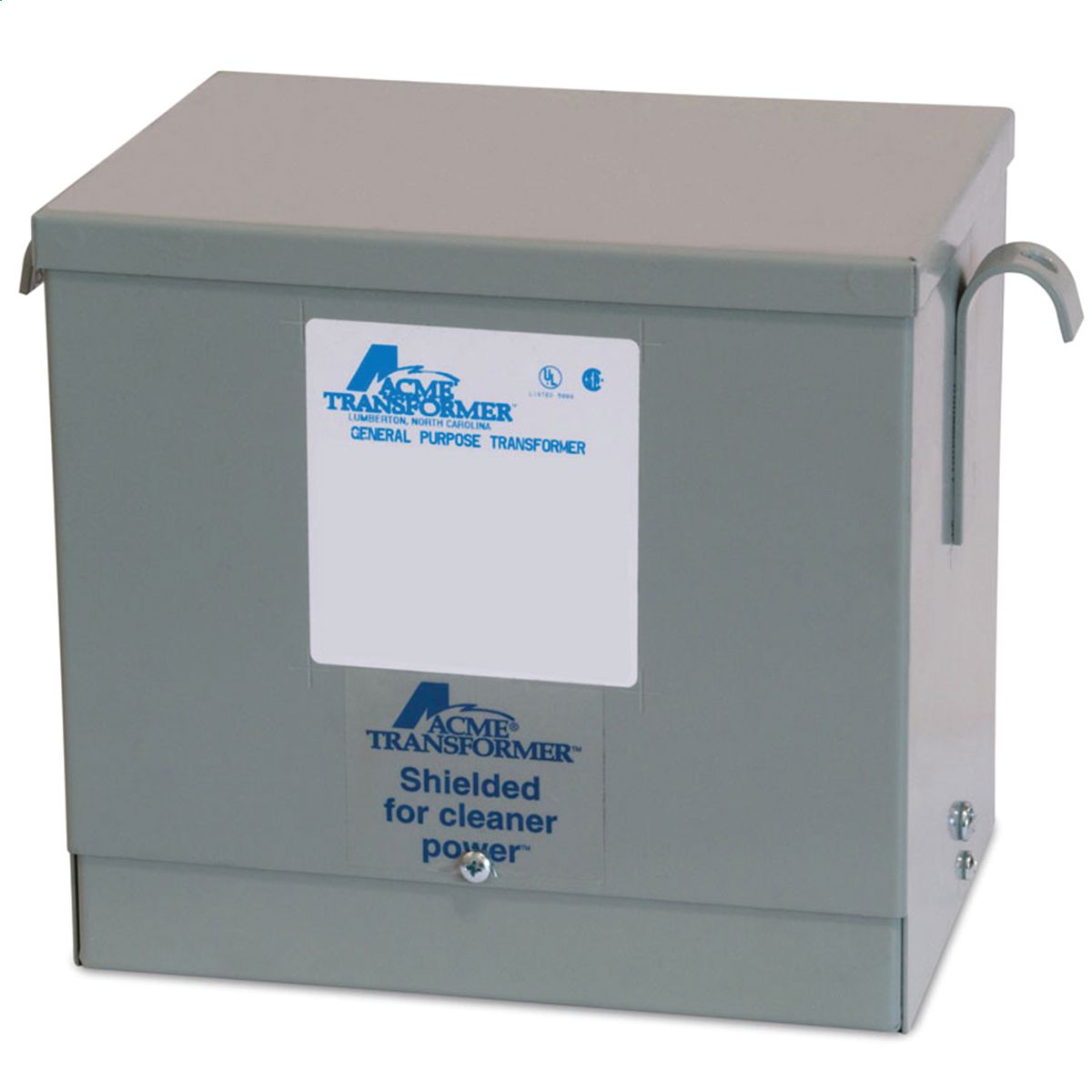

Acme Electric® T2A533401S Dry Type Distribution Transformer, 480 VAC Delta Primary, 240 Delta/120 Tap VAC Secondary
Custom_Product_Images_Illustration
Acme Electric® T2A533401S Dry Type Distribution Transformer, 480 VAC Delta Primary, 240 Delta/120 Tap VAC Secondary
SKU4362
MFGR #T2A533401S
Your Cost: $1,551.61/ea
Acme Electric® Distribution Transformer, Dry Type, 480 VAC Delta Primary, 240 Delta/120 VAC Secondary, 9 kVA, 60 Hz, 3 Phase, 2 BNFC Taps, Wire Lead Screw, Wall Mount, 180 deg C, NEMA 3R, 115 deg C, 14.03 in L x 11.52 in W x 17.77 in H
Acme Electric® Distribution Transformer, Dry Type, 480 VAC Delta Primary, 240 Delta/120 VAC Secondary, 9 kVA, 60 Hz, 3 Phase, 2 BNFC Taps, Wire Lead Screw, Wall Mount, 180 deg C, NEMA 3R, 115 deg C, 14.03 in L x 11.52 in W x 17.77 in H
ARRA Compliant C Buy American Compliant C Catalog Number T2A533401S Connection Type Wire Lead Country of Origin MX Currency USD Dimensions 17.77 in L x 11.52 in W x 14.03 in H Enclosure Type NEMA 3R Gross Weight Per Pack 180.0000 lb Gross Weight per Pack Metric 78.93 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 14.03 in Height [Metric] 35.6362 cm Housing Material Steel Length 11.52 in Length [Metric] 29.2608 cm Maximum Amperage Rating 15 A Mounting Wall Mounting Type Wall Number Of Taps 2 Returnable Y Temperature Rating 115 °C Type Dry UNSPSC 39121001 UPC 11 04750373380 UPC 12 047503733806 Width 17.77 in Width [Metric] 45.1358 cm Stock Status NORMALLY STOCKED Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 3 Power Rating 9 kVA Primary Voltage 480 VAC Secondary Voltage 240/120 VAC Encapsulatedecore and coil; Completely enclosed suitable for indoor/outdoor service; Consult selection charts for details; Excellent for dust or lint laden atmosphere; Encapsulated electrical grade silica and resincompound completely encloses the core and coil; Encapsulation seals out all moisture and air, eliminating corrosion and insulation deterioration; High efficiency and excellent regulation; Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front, lifting ears for easy installation; Wiring connections can be made outside of wiring compartment due to the use of flexible leads; Core and coil assembly completely encapsulated in polyester or epoxy seals out all moisture, eliminating corrosion and deterioration of insulation; Electrostatic shielding; Energy efficient; 10-year limited warranty; Encapsulated core and coil Completely enclosed suitable for indoor outdoor service Excellent for dust or lint laden atmosphere Encapsulated electrical grade silica and resin compound completely encloses the core and coil Encapsulation seals out all moisture and air, eliminating corrosion and insulation deterioration High efficiency and excellent regulation Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front, lifting ears for easy installation Wiring connections can be made outside of wiring compartment due to the use of flexible leads Core and coil assembly completely encapsulated in polyester or epoxy seals out all moisture, eliminating corrosion and deterioration of insulation Electrostatic shielding Energy efficient Ground studs for use with non-metallic conduit Copper lead wire terminations 3/4 to 1-1/4 in knockouts Copper lead wire terminations 0.75 - 1.25 in knockouts Air cooled/dry cooling
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | T2A533401S |
| Connection Type | Wire Lead |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 17.77 in L x 11.52 in W x 14.03 in H |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 180.0000 lb |
| Gross Weight per Pack Metric | 78.93 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 14.03 in |
| Height [Metric] | 35.6362 cm |
| Housing Material | Steel |
| Length | 11.52 in |
| Length [Metric] | 29.2608 cm |
| Maximum Amperage Rating | 15 A |
| Mounting | Wall |
| Mounting Type | Wall |
| Number Of Taps | 2 |
| Returnable | Y |
| Temperature Rating | 115 °C |
| Type | Dry |
| UNSPSC | 39121001 |
| UPC 11 | 04750373380 |
| UPC 12 | 047503733806 |
| Width | 17.77 in |
| Width [Metric] | 45.1358 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Power Rating | 9 kVA |
| Primary Voltage | 480 VAC |
| Secondary Voltage | 240/120 VAC |
| Encapsulatedecore and coil; Completely enclosed suitable for indoor/outdoor service; Consult selection charts for details; Excellent for dust or lint laden atmosphere; Encapsulated electrical grade silica and resincompound completely encloses the core and coil; Encapsulation seals out all moisture and air, eliminating corrosion and insulation deterioration; High efficiency and excellent regulation; Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front, lifting ears for easy installation; Wiring connections can be made outside of wiring compartment due to the use of flexible leads; Core and coil assembly completely encapsulated in polyester or epoxy seals out all moisture, eliminating corrosion and deterioration of insulation; Electrostatic shielding; Energy efficient; 10-year limited warranty; |
| Encapsulated core and coil |
| Completely enclosed suitable for indoor outdoor service |
| Excellent for dust or lint laden atmosphere |
| Encapsulated electrical grade silica and resin compound completely encloses the core and coil |
| Encapsulation seals out all moisture and air, eliminating corrosion and insulation deterioration |
| High efficiency and excellent regulation |
| Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front, lifting ears for easy installation |
| Wiring connections can be made outside of wiring compartment due to the use of flexible leads |
| Core and coil assembly completely encapsulated in polyester or epoxy seals out all moisture, eliminating corrosion and deterioration of insulation |
| Electrostatic shielding |
| Energy efficient |
| Ground studs for use with non-metallic conduit |
| Copper lead wire terminations |
| 3/4 to 1-1/4 in knockouts |
| Copper lead wire terminations |
| 0.75 - 1.25 in knockouts |
| Air cooled/dry cooling |
