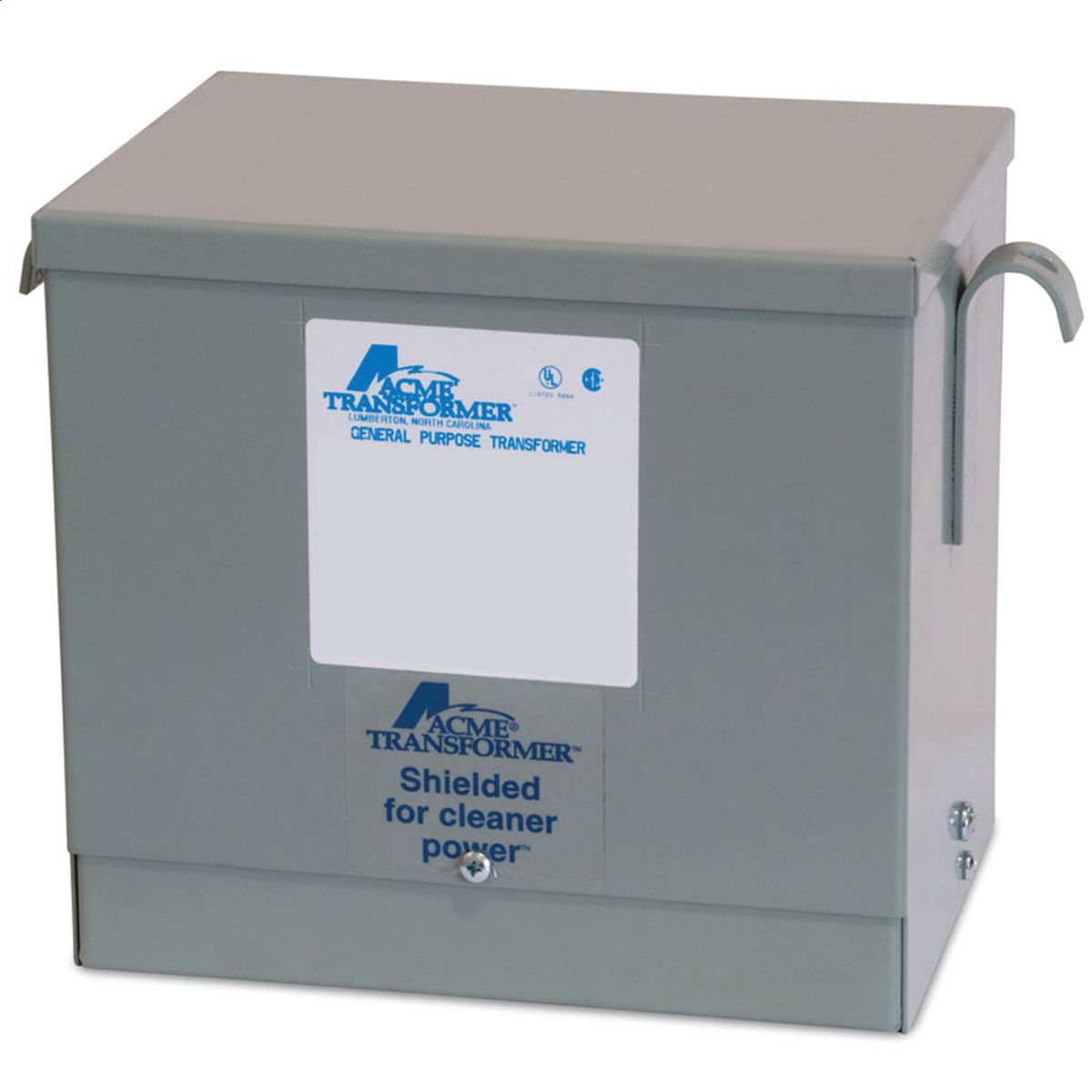

Acme Electric® T2A533091S Dry Distribution Transformer, 480 VAC Delta Primary, 208Y/120 VAC Secondary, 6 kVA, 60 Hz
Custom_Product_Images_Illustration
Acme Electric® T2A533091S Dry Distribution Transformer, 480 VAC Delta Primary, 208Y/120 VAC Secondary, 6 kVA, 60 Hz
SKU4357
MFGR #T2A533091S
$/ea
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
ARRA Compliant C Buy American Compliant C Catalog Number T2A533091S Connection Type Lead Wire Cooling Air Cooled/Dry Country of Origin MX Currency USD Dimensions 14.17 in L x 8.82 in W x 11.83 in H Enclosure NEMA 3R Steel Enclosure Type NEMA 3R Fuse Rating Primary: 12 AMP Gross Weight Per Pack 140.0000 lb Gross Weight per Pack Metric 50.80 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 11.83 in Height [Metric] 30.0482 cm Housing Material Steel Insulation Class H/180 deg C Length 8.82 in Length [Metric] 22.4028 cm Maximum Amperage Rating 12 A Mounting Wall Mounting Type Wall Returnable Y Standard UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, NEC Class 1, Division 2, NEC 501-2 (b), OSHA Compliant, ANSI, IEEE Temperature Rating 115 °C Type Dry UNSPSC 39121001 UPC 11 04750373355 UPC 12 047503733554 Width 14.17 in Width [Metric] 35.9918 cm Winding Aluminum, Configuration: Primary - Delta, Secondary - Wye Stock Status NORMALLY STOCKED Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 3 Power Rating 6 kVA Primary Voltage 480 VAC Secondary Voltage 208/120 VAC Encapsulated core and coil; Completely enclosed suitable for indoor/outdoor service; Consult selection charts for details; Excellent for dust or lint laden atmosphere; Encapsulated electrical grade silica and resincompound completely encloses the core and coil; Encapsulation seals out all moisture and air, eliminating corrosion and insulation deterioration; High efficiency and excellent regulation; Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front, lifting ears for easy installation; Wiring connections can be made outside of wiring compartment due to the use of flexible leads; Core and coil assembly completely encapsulated in polyester or epoxy seals out all moisture, eliminating corrosion and deterioration of insulation; Electrostatic shielding; Energy efficient; 10-year limited warranty; 'For Harsh industrial locations, corrosive chemical exposure, waste water treatment facilities, coastal or marine applications with high salt mist and where painted cold roll steel is not adequate Encapsulated core and coil Completely enclosed suitable for indoor outdoor service Excellent for dust or lint laden atmosphere Encapsulated electrical grade silica and resin compound completely encloses the core and coil Encapsulation seals out all moisture and air, eliminating corrosion and insulation deterioration High efficiency and excellent regulation Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front, lifting ears for easy installation Wiring connections can be made outside of wiring compartment due to the use of flexible leads Core and coil assembly completely encapsulated in polyester or epoxy seals out all moisture, eliminating corrosion and deterioration of insulation Electrostatic shielding Energy efficient Delta primary, wye secondary configuration Aluminum windings Epoxy encapsulated
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | T2A533091S |
| Connection Type | Lead Wire |
| Cooling | Air Cooled/Dry |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 14.17 in L x 8.82 in W x 11.83 in H |
| Enclosure | NEMA 3R Steel |
| Enclosure Type | NEMA 3R |
| Fuse Rating | Primary: 12 AMP |
| Gross Weight Per Pack | 140.0000 lb |
| Gross Weight per Pack Metric | 50.80 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 11.83 in |
| Height [Metric] | 30.0482 cm |
| Housing Material | Steel |
| Insulation | Class H/180 deg C |
| Length | 8.82 in |
| Length [Metric] | 22.4028 cm |
| Maximum Amperage Rating | 12 A |
| Mounting | Wall |
| Mounting Type | Wall |
| Returnable | Y |
| Standard | UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, NEC Class 1, Division 2, NEC 501-2 (b), OSHA Compliant, ANSI, IEEE |
| Temperature Rating | 115 °C |
| Type | Dry |
| UNSPSC | 39121001 |
| UPC 11 | 04750373355 |
| UPC 12 | 047503733554 |
| Width | 14.17 in |
| Width [Metric] | 35.9918 cm |
| Winding | Aluminum, Configuration: Primary - Delta, Secondary - Wye |
| Stock Status | NORMALLY STOCKED |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Power Rating | 6 kVA |
| Primary Voltage | 480 VAC |
| Secondary Voltage | 208/120 VAC |
| Encapsulated core and coil; Completely enclosed suitable for indoor/outdoor service; Consult selection charts for details; Excellent for dust or lint laden atmosphere; Encapsulated electrical grade silica and resincompound completely encloses the core and coil; Encapsulation seals out all moisture and air, eliminating corrosion and insulation deterioration; High efficiency and excellent regulation; Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front, lifting ears for easy installation; Wiring connections can be made outside of wiring compartment due to the use of flexible leads; Core and coil assembly completely encapsulated in polyester or epoxy seals out all moisture, eliminating corrosion and deterioration of insulation; Electrostatic shielding; Energy efficient; 10-year limited warranty; 'For Harsh industrial locations, corrosive chemical exposure, waste water treatment facilities, coastal or marine applications with high salt mist and where painted cold roll steel is not adequate |
| Encapsulated core and coil |
| Completely enclosed suitable for indoor outdoor service |
| Excellent for dust or lint laden atmosphere |
| Encapsulated electrical grade silica and resin compound completely encloses the core and coil |
| Encapsulation seals out all moisture and air, eliminating corrosion and insulation deterioration |
| High efficiency and excellent regulation |
| Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front, lifting ears for easy installation |
| Wiring connections can be made outside of wiring compartment due to the use of flexible leads |
| Core and coil assembly completely encapsulated in polyester or epoxy seals out all moisture, eliminating corrosion and deterioration of insulation |
| Electrostatic shielding |
| Energy efficient |
| Delta primary, wye secondary configuration |
| Aluminum windings |
| Epoxy encapsulated |
