Acme Electric

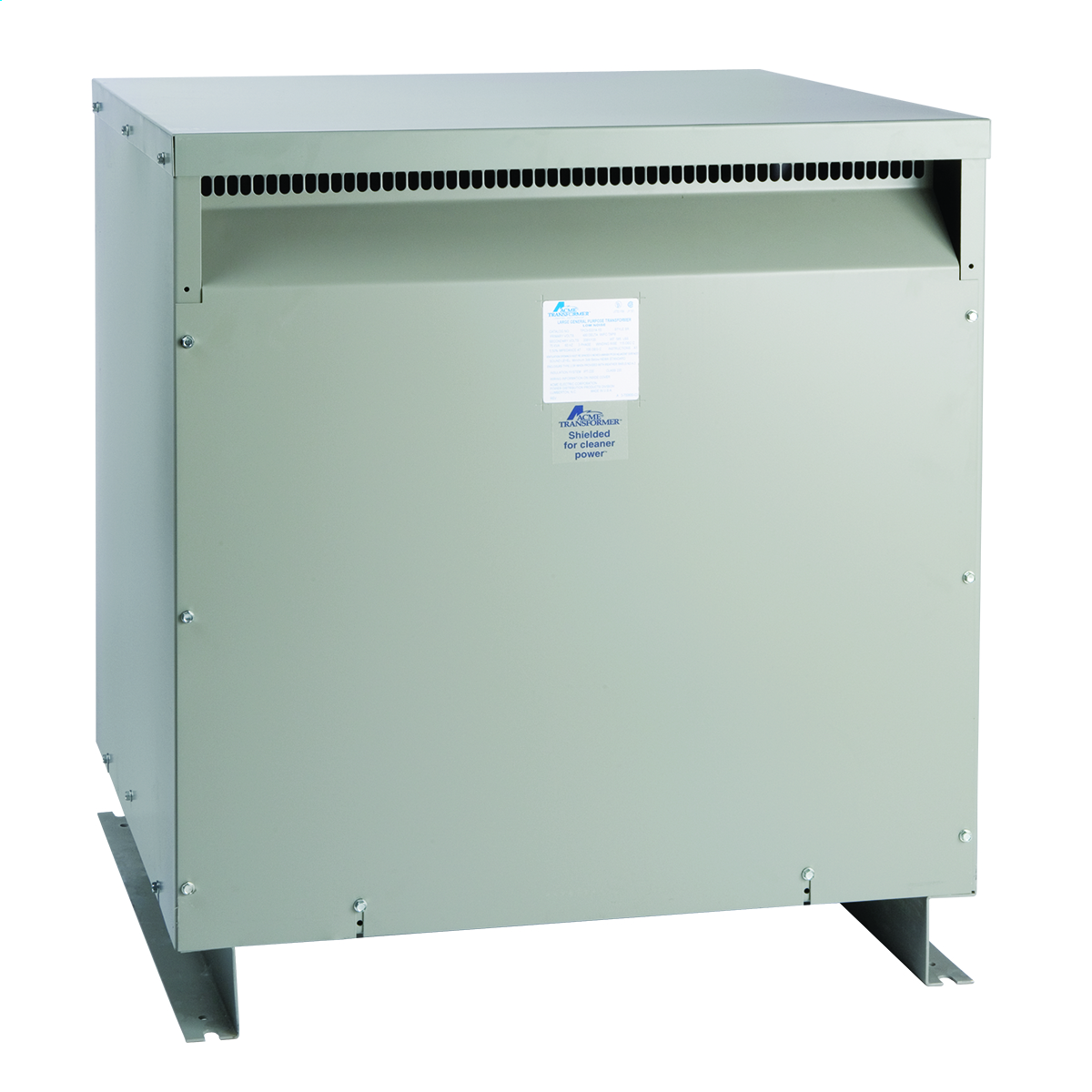

Acme Electric® T2A527151 TFMR 3PH 225KVA 600-
Custom_Product_Images_Illustration
Acme Electric
Acme Electric® T2A527151 TFMR 3PH 225KVA 600-
SKU282743
MFGR #T2A527151
Your Cost: $6,231.76/ea
Acme Electric® Auto Transformer, Dry Ventilated, 600/480 VAC Primary, 480/380 VAC Secondary, 225/180 kVA, 50/60 Hz, 3-Phase, 2 Taps, Lead Wire, Floor Mount, NEMA 1, 150 deg C, Stainless Steel Housing, 28.15 in W x 22.37 in D x 29.41 in H
Acme Electric® Auto Transformer, Dry Ventilated, 600/480 VAC Primary, 480/380 VAC Secondary, 225/180 kVA, 50/60 Hz, 3-Phase, 2 Taps, Lead Wire, Floor Mount, NEMA 1, 150 deg C, Stainless Steel Housing, 28.15 in W x 22.37 in D x 29.41 in H
Application Ventilated ARRA Compliant C Buy American Compliant C Catalog Number T2A527151 Country of Origin MX Currency USD Gross Weight Per Pack 600.0000 lb Gross Weight per Pack Metric 231.79 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330040 Height 29.41 in Height [Metric] 74.7014 cm KVA Rating 225 kVA Length 22.37 in Length [Metric] 56.8198 cm Mounting Floor Number Of Phases 3 Returnable Y Standards CE Marked, UL 1561/E12547 Type Isolation transformer UNSPSC 39121001 UPC 11 04750342015 UPC 12 047503420157 Width 28.15 in Width [Metric] 71.5010 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 50/60 Hz Phase 3 pH Primary Voltage 600/480 V Secondary Voltage 480/380 V Ventilated Fully encapsulated core and coil UL type 3R epoxy encapsulated Ground studs for use with non-metallic conduit Aluminum bus termination Quite operation with sound levels below NEMA standards 5% tap steps 2 BNFC taps WSA2 Weather shield 57 wiring diagram
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Ventilated |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | T2A527151 |
| Country of Origin | MX |
| Currency | USD |
| Gross Weight Per Pack | 600.0000 lb |
| Gross Weight per Pack Metric | 231.79 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330040 |
| Height | 29.41 in |
| Height [Metric] | 74.7014 cm |
| KVA Rating | 225 kVA |
| Length | 22.37 in |
| Length [Metric] | 56.8198 cm |
| Mounting | Floor |
| Number Of Phases | 3 |
| Returnable | Y |
| Standards | CE Marked, UL 1561/E12547 |
| Type | Isolation transformer |
| UNSPSC | 39121001 |
| UPC 11 | 04750342015 |
| UPC 12 | 047503420157 |
| Width | 28.15 in |
| Width [Metric] | 71.5010 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 3 pH |
| Primary Voltage | 600/480 V |
| Secondary Voltage | 480/380 V |
| Ventilated |
| Fully encapsulated core and coil |
| UL type 3R epoxy encapsulated |
| Ground studs for use with non-metallic conduit |
| Aluminum bus termination |
| Quite operation with sound levels below NEMA standards |
| 5% tap steps |
| 2 BNFC taps |
| WSA2 Weather shield |
| 57 wiring diagram |
