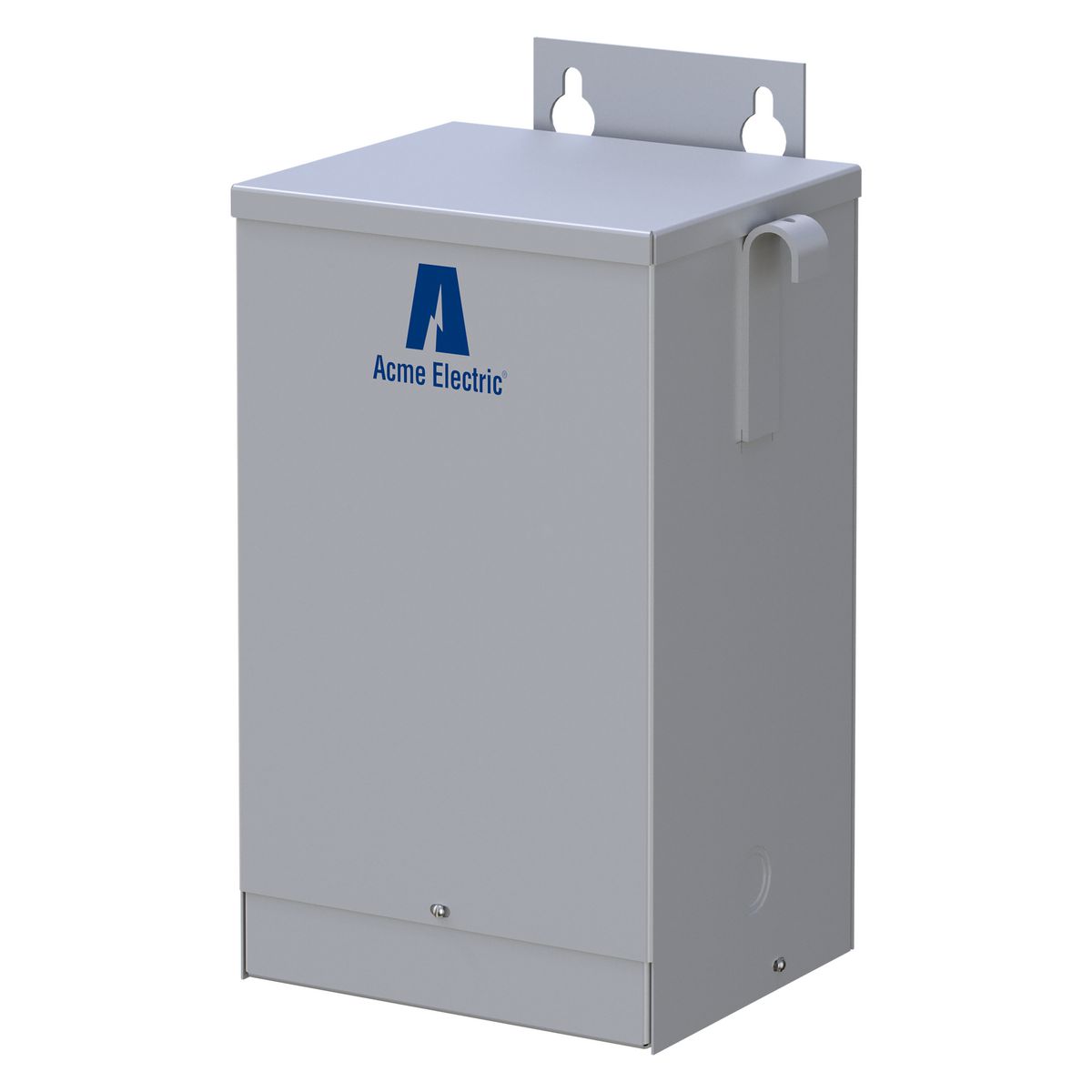

Acme Electric® T279743S Dry Distribution Transformer, 120/208/240/277 VAC Primary, 120/240 VAC Secondary, 3 kVA, 60 Hz
Custom_Product_Images_Illustration
Acme Electric® T279743S Dry Distribution Transformer, 120/208/240/277 VAC Primary, 120/240 VAC Secondary, 3 kVA, 60 Hz
SKU196596
MFGR #T279743S
Your Cost: $830.80/ea
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
ARRA Compliant C Buy American Compliant C Catalog Number T279743S Connection Type Lead Wire Cooling Air Cooled/Dry Country of Origin MX Currency USD Dimensions 10.31 in L x 7.13 in W x 11.5 in H Enclosure NEMA 3R Steel Enclosure Type NEMA 3R Gross Weight Per Pack 55.0000 lb Gross Weight per Pack Metric 25.86 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 11.50 in Height [Metric] 29.2100 cm Housing Material Steel Insulation Class H/180 deg C Length 7.13 in Length [Metric] 18.1102 cm Mounting Wall Mounting Type Wall Returnable Y Standard UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506 File No. E79947V1UL Control Number 50B8UL Insulation Number X3221CSA CertifiedOSHA ApprovedANSI SpecifiedIEEE CertifiedPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov Temperature Rating 115 °C Type Dry UNSPSC 39121001 UPC 11 04750310206 UPC 12 047503102060 Width 10.31 in Width [Metric] 26.1874 cm Winding Aluminum, Configuration: Primary - One Winding, Secondary - Two Winding Stock Status NORMALLY STOCKED Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 1 Power Rating 3 kVA Primary Voltage 120/208/240/277 VAC Secondary Voltage 120/240 VAC Encapsulated core and coil; Shielded for cleaner power; Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration; Quiet operation with sound levels well below NEMA standards; 10-year limited warranty Encapsulated core and coil Shielded for cleaner power Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration Quiet operation with sound levels well below NEMA standards UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration Air cooled/dry cooling One winding primary, two winding secondary configuration Aluminum windings Epoxy encapsulated Steel enclosure
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | T279743S |
| Connection Type | Lead Wire |
| Cooling | Air Cooled/Dry |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 10.31 in L x 7.13 in W x 11.5 in H |
| Enclosure | NEMA 3R Steel |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 55.0000 lb |
| Gross Weight per Pack Metric | 25.86 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 11.50 in |
| Height [Metric] | 29.2100 cm |
| Housing Material | Steel |
| Insulation | Class H/180 deg C |
| Length | 7.13 in |
| Length [Metric] | 18.1102 cm |
| Mounting | Wall |
| Mounting Type | Wall |
| Returnable | Y |
| Standard | UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506 File No. E79947V1UL Control Number 50B8UL Insulation Number X3221CSA CertifiedOSHA ApprovedANSI SpecifiedIEEE CertifiedPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Temperature Rating | 115 °C |
| Type | Dry |
| UNSPSC | 39121001 |
| UPC 11 | 04750310206 |
| UPC 12 | 047503102060 |
| Width | 10.31 in |
| Width [Metric] | 26.1874 cm |
| Winding | Aluminum, Configuration: Primary - One Winding, Secondary - Two Winding |
| Stock Status | NORMALLY STOCKED |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 3 kVA |
| Primary Voltage | 120/208/240/277 VAC |
| Secondary Voltage | 120/240 VAC |
| Encapsulated core and coil; Shielded for cleaner power; Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration; Quiet operation with sound levels well below NEMA standards; 10-year limited warranty |
| Encapsulated core and coil |
| Shielded for cleaner power |
| Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration |
| Quiet operation with sound levels well below NEMA standards |
| UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration |
| Air cooled/dry cooling |
| One winding primary, two winding secondary configuration |
| Aluminum windings |
| Epoxy encapsulated |
| Steel enclosure |
