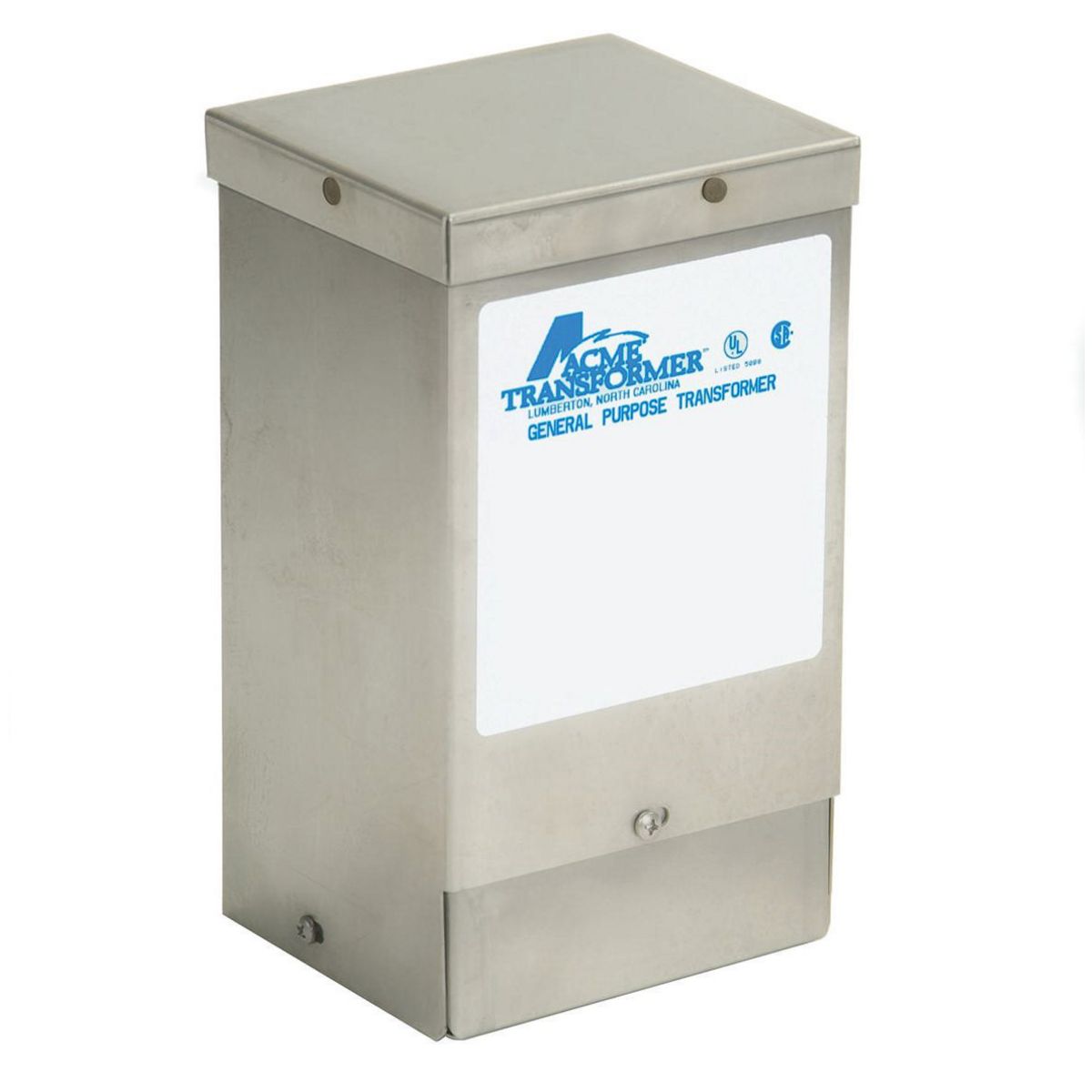

Acme Electric® T253013SS Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 3 kVA, 60 Hz, 1 Phase Stainless Steel
Custom_Product_Images_Illustration
Acme Electric® T253013SS Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 3 kVA, 60 Hz, 1 Phase Stainless Steel
SKU1219641
MFGR #T253013SS
Your Cost: $1,518.10/ea
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards. Stainless Steel.
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards. Stainless Steel.
Application Encapsulated ARRA Compliant C Buy American Compliant C Catalog Number T253013SS Connection Type Copper Lead Wire Country of Origin MX Currency USD Dimensions 11.5 in H x 10.31 in W x 7.13 in D Enclosure Type NEMA 3R Gross Weight Per Pack 55.0000 lb Gross Weight per Pack Metric 24.95 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 11.50 in Height [Metric] 29.2100 cm KVA Rating 3 Length 7.13 in Length [Metric] 18.1102 cm Mounting Wall Mounting Type Wall Number Of Phases 1 Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506CSA C22.2 File No. 47DOE 10 CFR Part 431 2016 Temperature Rating 115 °C Type Dry Distribution Encapsulated UNSPSC 39121001 UPC 11 04750308434 UPC 12 047503084342 Width 10.31 in Width [Metric] 26.1874 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 1 Power Rating 3 kVA Primary Voltage 240/480 VAC Secondary Voltage 120/240 VAC Encapsulated Ground studs for use with non-metallic conduit Quiet operation with sound levels well below NEMA standards Electrostatic shield for enhanced protection Encapsulated core and coil Encapsulated Four windings
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Encapsulated |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | T253013SS |
| Connection Type | Copper Lead Wire |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11.5 in H x 10.31 in W x 7.13 in D |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 55.0000 lb |
| Gross Weight per Pack Metric | 24.95 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 11.50 in |
| Height [Metric] | 29.2100 cm |
| KVA Rating | 3 |
| Length | 7.13 in |
| Length [Metric] | 18.1102 cm |
| Mounting | Wall |
| Mounting Type | Wall |
| Number Of Phases | 1 |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506CSA C22.2 File No. 47DOE 10 CFR Part 431 2016 |
| Temperature Rating | 115 °C |
| Type | Dry Distribution Encapsulated |
| UNSPSC | 39121001 |
| UPC 11 | 04750308434 |
| UPC 12 | 047503084342 |
| Width | 10.31 in |
| Width [Metric] | 26.1874 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 3 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120/240 VAC |
| Encapsulated |
| Ground studs for use with non-metallic conduit |
| Quiet operation with sound levels well below NEMA standards |
| Electrostatic shield for enhanced protection |
| Encapsulated core and coil |
| Encapsulated |
| Four windings |
