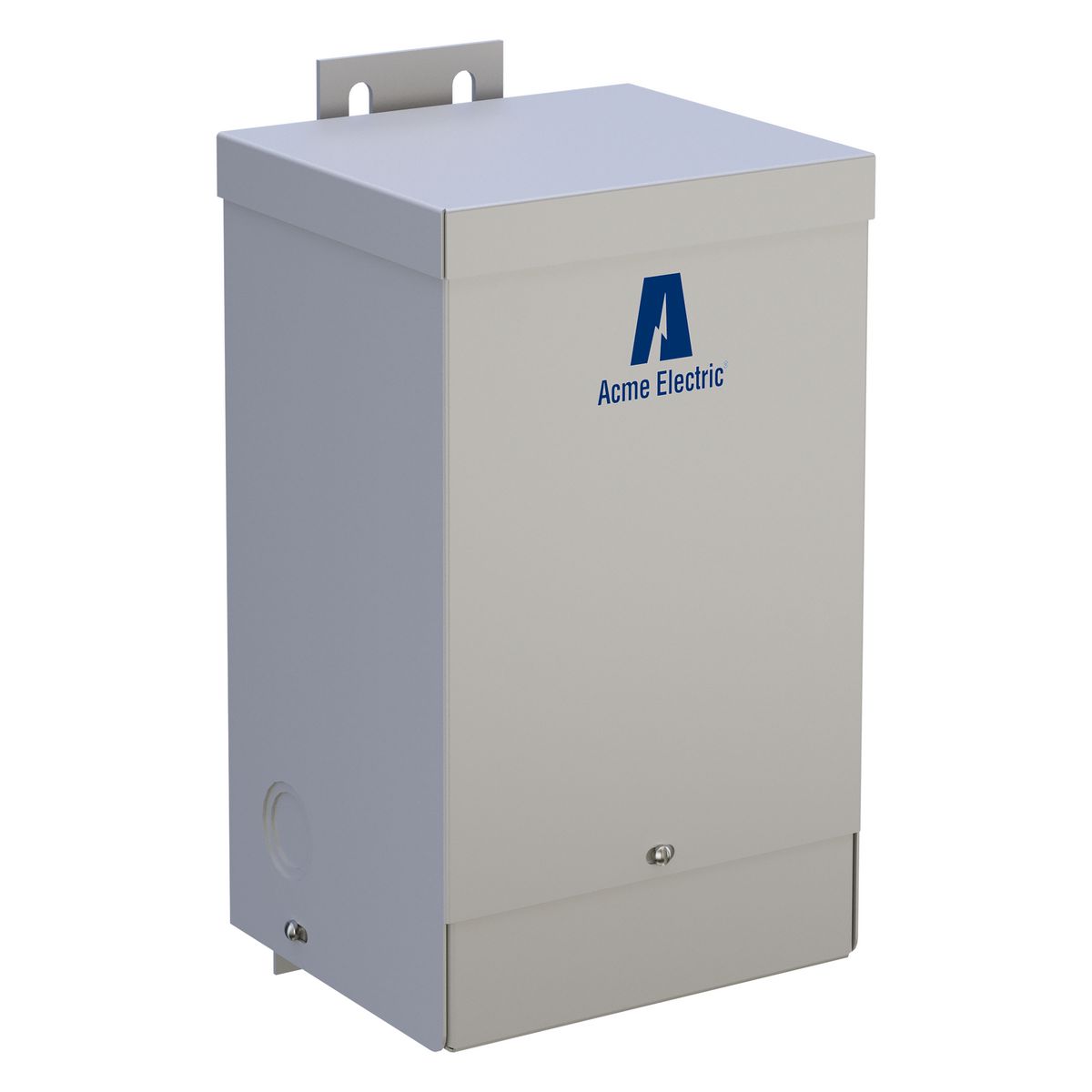

Acme Electric® T181059 Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 16/32 VAC Secondary, 0.75 kVA, 50/60 Hz
Custom_Product_Images_Illustration
Acme Electric
Acme Electric® T181059 Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 16/32 VAC Secondary, 0.75 kVA, 50/60 Hz
SKU4226
MFGR #T181059
Your Cost: $351.43/ea
Acme Electric® Buck Boost Transformer, Encapsulated, 120/240 VAC Primary, 16/32 VAC Secondary, 0.75 kVA, 50/60 Hz, 1 Phase, 46.9/23.4 A Maximum, Wire Lead Screw, Wall Mount, Class H/180 deg C, NEMA 3R, 115 deg C, Steel Housing, 9.68 in H x 4.75 in W x 4.51 in D
Acme Electric® Buck Boost Transformer, Encapsulated, 120/240 VAC Primary, 16/32 VAC Secondary, 0.75 kVA, 50/60 Hz, 1 Phase, 46.9/23.4 A Maximum, Wire Lead Screw, Wall Mount, Class H/180 deg C, NEMA 3R, 115 deg C, Steel Housing, 9.68 in H x 4.75 in W x 4.51 in D
Application For Low Voltage Lighting Or Control Circuitry ARRA Compliant C Boost Voltage 11.25 KVA/46.88 AMP: 225 V Line And 240 V Load Buy American Compliant C Catalog Number T181059 Connection Wire Lead Screw Terminal Connection Type Lead Wire Country of Origin MX Currency USD Dimensions 9.68 in H x 4.75 in W x 4.51 in D Enclosure NEMA 3R Steel Enclosure Type NEMA 3R Gross Weight Per Pack 20.1800 lb Gross Weight per Pack Metric 9.53 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504314065 Height 9.68 in Height [Metric] 24.5872 cm Housing Material Steel Insulation Class H/180 deg C Insulation Class 180 DEG C Class H Length 4.51 in Length [Metric] 11.4554 cm Maximum Amperage Rating 46.9/23.4 A Maximum Output Current 23.4/46.9 A Mounting Wall Mounting Type Wall Number Of Phases 1 Returnable Y Standard UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506File No. E79947V1UL Control File No. 50B8UL Insulation File No. X3221CSA CertifiedOSHA ApprovedANSI SpecifiedIEEE Certified Temperature Rating 115 °C Type Encapsulated UNSPSC 39121025 UPC 11 04750308645 UPC 12 047503086452 Width 4.75 in Width [Metric] 12.0650 cm Stock Status NORMALLY STOCKED Brand Acme Electric Manufacturer Acme Electric Frequency Rating 50/60 Hz Phase 1 Power Rating 0.75 kVA Primary Voltage 120/240 VAC Secondary Voltage 16/32 VAC For Low Voltage Lighting Or Control Circuitry Encapsulated core and coil; Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 - 20 PCT; The most common example is boosting 208 - 230 V, usually to operate a 230 V motor such as an air-conditioner compressor, from a 208 V supply line; Buck-boost transformers are an economical way to correct a potentially very serious problem; Anytime a line voltage change in the 5 - 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense; 10-year limited warranty Easily configured for numerous applications Lower cost solution 5-10 times increase in kVA Encapsulated core and coil Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20 PCT The most common example is boosting 208 - 230 VAC, usually to operate a 230 VAC motor such as an air-conditioner compressor, from a 208 VAC supply line Buck-boost transformers are an economical way to correct a potentially very serious problem Anytime a line voltage change in the 5 to 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense Single or three phase applications Boost voltage 11.25 kVA/46.88 A 225 V line and 240 VAC load Buck voltage 11.95 kVA/50 A 255 VAC line and 239 VAC load 46.9 A at 16 VAC, 23.4 A at 32 VAC power rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Low Voltage Lighting Or Control Circuitry |
| ARRA Compliant | C |
| Boost Voltage | 11.25 KVA/46.88 AMP: 225 V Line And 240 V Load |
| Buy American Compliant | C |
| Catalog Number | T181059 |
| Connection | Wire Lead Screw Terminal |
| Connection Type | Lead Wire |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 9.68 in H x 4.75 in W x 4.51 in D |
| Enclosure | NEMA 3R Steel |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 20.1800 lb |
| Gross Weight per Pack Metric | 9.53 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504314065 |
| Height | 9.68 in |
| Height [Metric] | 24.5872 cm |
| Housing Material | Steel |
| Insulation | Class H/180 deg C |
| Insulation Class | 180 DEG C Class H |
| Length | 4.51 in |
| Length [Metric] | 11.4554 cm |
| Maximum Amperage Rating | 46.9/23.4 A |
| Maximum Output Current | 23.4/46.9 A |
| Mounting | Wall |
| Mounting Type | Wall |
| Number Of Phases | 1 |
| Returnable | Y |
| Standard | UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506File No. E79947V1UL Control File No. 50B8UL Insulation File No. X3221CSA CertifiedOSHA ApprovedANSI SpecifiedIEEE Certified |
| Temperature Rating | 115 °C |
| Type | Encapsulated |
| UNSPSC | 39121025 |
| UPC 11 | 04750308645 |
| UPC 12 | 047503086452 |
| Width | 4.75 in |
| Width [Metric] | 12.0650 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 1 |
| Power Rating | 0.75 kVA |
| Primary Voltage | 120/240 VAC |
| Secondary Voltage | 16/32 VAC |
| For Low Voltage Lighting Or Control Circuitry |
| Encapsulated core and coil; Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 - 20 PCT; The most common example is boosting 208 - 230 V, usually to operate a 230 V motor such as an air-conditioner compressor, from a 208 V supply line; Buck-boost transformers are an economical way to correct a potentially very serious problem; Anytime a line voltage change in the 5 - 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense; 10-year limited warranty |
| Easily configured for numerous applications |
| Lower cost solution |
| 5-10 times increase in kVA |
| Encapsulated core and coil |
| Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20 PCT |
| The most common example is boosting 208 - 230 VAC, usually to operate a 230 VAC motor such as an air-conditioner compressor, from a 208 VAC supply line |
| Buck-boost transformers are an economical way to correct a potentially very serious problem |
| Anytime a line voltage change in the 5 to 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense |
| Single or three phase applications |
| Boost voltage 11.25 kVA/46.88 A 225 V line and 240 VAC load |
| Buck voltage 11.95 kVA/50 A 255 VAC line and 239 VAC load |
| 46.9 A at 16 VAC, 23.4 A at 32 VAC power rating |
