Acme Electric

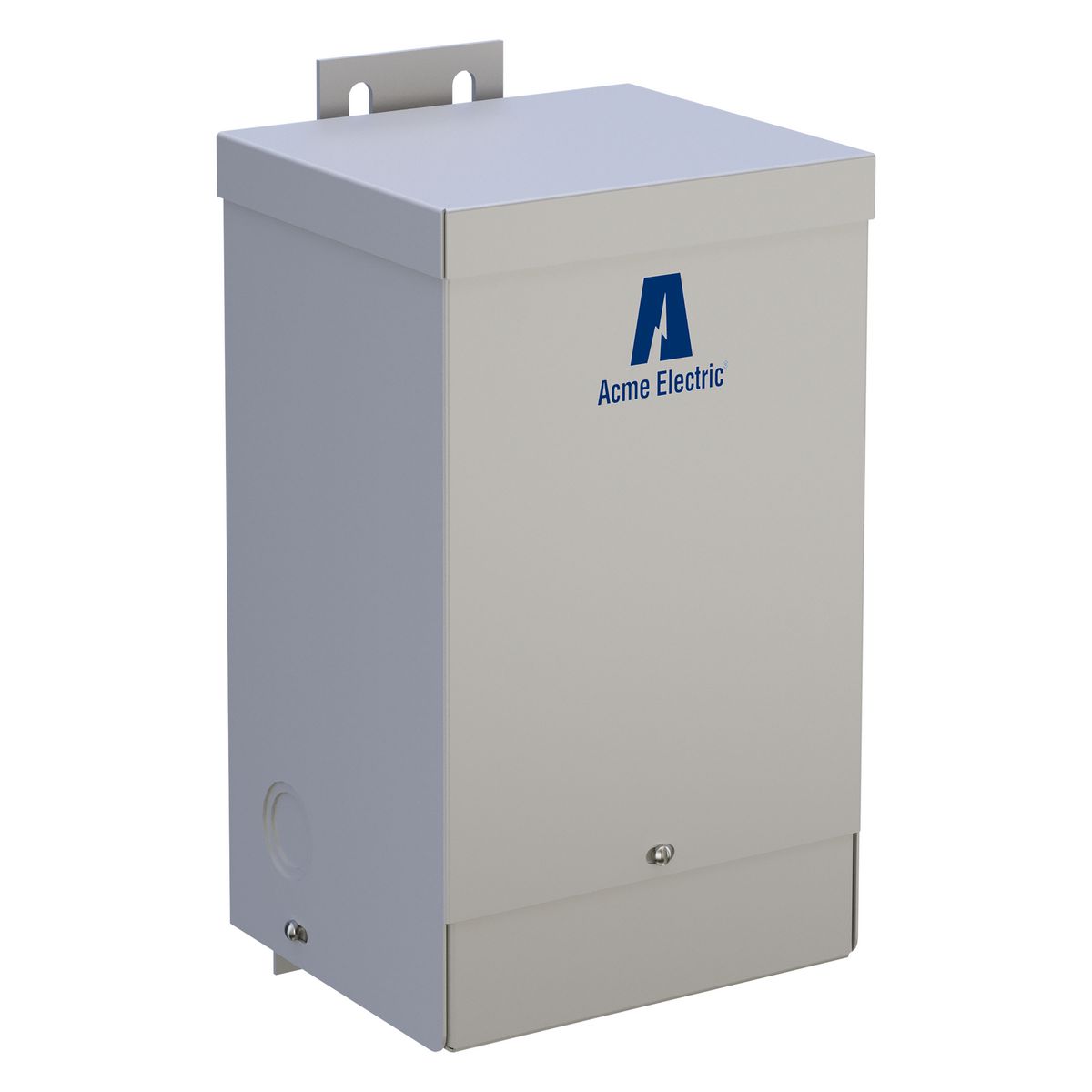

Acme Electric® T181057 Isolation Buck Boost Transformer, 120/240 VAC Primary, 16/32 VAC Secondary, 0.25 kVA, 60 Hz
Custom_Product_Images_Illustration
Acme Electric
Acme Electric® T181057 Isolation Buck Boost Transformer, 120/240 VAC Primary, 16/32 VAC Secondary, 0.25 kVA, 60 Hz
SKU68496
MFGR #T181057
Your Cost: $189.38/ea
Acme Electric® Buck Boost Transformer, Isolation, 120/240 VAC Primary, 16/32 VAC Secondary, 0.25 kVA, 60 Hz, 1 Phase, 15.6/7.8 A Maximum, Wire Lead Screw, Wall Mount, Class H/180 deg C, NEMA 3R/IP54, 115 deg C, 8.68 in H x 4.08 in W x 3.88 in D
Acme Electric® Buck Boost Transformer, Isolation, 120/240 VAC Primary, 16/32 VAC Secondary, 0.25 kVA, 60 Hz, 1 Phase, 15.6/7.8 A Maximum, Wire Lead Screw, Wall Mount, Class H/180 deg C, NEMA 3R/IP54, 115 deg C, 8.68 in H x 4.08 in W x 3.88 in D
Application For Low Voltage Lighting Or Control Circuitry ARRA Compliant C Boost Voltage 3.75 KVA/15.63 AMP: 225 V Line And 240 V Load Buck Voltage 3.98 KVA/16.67 AMP: 255 V Line And 239 V Load Buy American Compliant C Catalog Number T181057 Connection Wire Lead Screw Terminal Connection Type Wire Lead Country of Origin MX Currency USD Dimensions 4.08 in L x 3.88 in W x 8.68 in H Enclosure NEMA 3R Steel Enclosure Type NEMA 3R/IP54 Gross Weight Per Pack 10.0000 lb Gross Weight per Pack Metric 4.99 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504314065 Height 8.68 in Height [Metric] 22.0472 cm Housing Material Steel Insulation Class H/180 deg C Insulation Class 180 DEG C Class H Length 3.88 in Length [Metric] 9.8552 cm Maximum Amperage Rating 15.6/7.8 A Maximum Output Current 7.8/15.6 A Mounting Wall Mounting Type Wall Number Of Phases 1 Returnable Y Standard UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506 File No. E79947V1UL Control Number 50B8UL Insulation Number X3221CSA CertifiedOSHA ApprovedANSI SpecifiedIEEE CertifiedPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov Temperature Rating 115 °C Type Isolation UNSPSC 39121025 UPC 11 04750317590 UPC 12 047503175903 Width 4.08 in Width [Metric] 10.3632 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 50/60 Hz Phase 1 Power Rating 0.25 kVA Primary Voltage 120/240 VAC Secondary Voltage 16/32 VAC For Low Voltage Lighting Or Control Circuitry Encapsulated core and coil; Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 - 20 PCT; The most common example is boosting 208 - 230 V, usually to operate a 230 V motor such as an air-conditioner compressor, from a 208 V supply line; Buck-boost transformers are an economical way to correct a potentially very serious problem; Anytime a line voltage change in the 5 - 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense; 10-year limited warranty Encapsulated core and coil Buck boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20% The most common example is boosting 208 to 230 VAC, usually to operate a 230 VAC motor such as an air conditioner compressor, from a 208 VAC supply line Buck boost transformers are an economical way to correct a potentially very serious problem Anytime a line voltage change in the 5 to 20% range is required, a buck boost transformer should be considered as your first line-of defense 15.6 A at 16 VAC, 7.8 A at 32 VAC power rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Low Voltage Lighting Or Control Circuitry |
| ARRA Compliant | C |
| Boost Voltage | 3.75 KVA/15.63 AMP: 225 V Line And 240 V Load |
| Buck Voltage | 3.98 KVA/16.67 AMP: 255 V Line And 239 V Load |
| Buy American Compliant | C |
| Catalog Number | T181057 |
| Connection | Wire Lead Screw Terminal |
| Connection Type | Wire Lead |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.08 in L x 3.88 in W x 8.68 in H |
| Enclosure | NEMA 3R Steel |
| Enclosure Type | NEMA 3R/IP54 |
| Gross Weight Per Pack | 10.0000 lb |
| Gross Weight per Pack Metric | 4.99 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504314065 |
| Height | 8.68 in |
| Height [Metric] | 22.0472 cm |
| Housing Material | Steel |
| Insulation | Class H/180 deg C |
| Insulation Class | 180 DEG C Class H |
| Length | 3.88 in |
| Length [Metric] | 9.8552 cm |
| Maximum Amperage Rating | 15.6/7.8 A |
| Maximum Output Current | 7.8/15.6 A |
| Mounting | Wall |
| Mounting Type | Wall |
| Number Of Phases | 1 |
| Returnable | Y |
| Standard | UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506 File No. E79947V1UL Control Number 50B8UL Insulation Number X3221CSA CertifiedOSHA ApprovedANSI SpecifiedIEEE CertifiedPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Temperature Rating | 115 °C |
| Type | Isolation |
| UNSPSC | 39121025 |
| UPC 11 | 04750317590 |
| UPC 12 | 047503175903 |
| Width | 4.08 in |
| Width [Metric] | 10.3632 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 1 |
| Power Rating | 0.25 kVA |
| Primary Voltage | 120/240 VAC |
| Secondary Voltage | 16/32 VAC |
| For Low Voltage Lighting Or Control Circuitry |
| Encapsulated core and coil; Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 - 20 PCT; The most common example is boosting 208 - 230 V, usually to operate a 230 V motor such as an air-conditioner compressor, from a 208 V supply line; Buck-boost transformers are an economical way to correct a potentially very serious problem; Anytime a line voltage change in the 5 - 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense; 10-year limited warranty |
| Encapsulated core and coil |
| Buck boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20% |
| The most common example is boosting 208 to 230 VAC, usually to operate a 230 VAC motor such as an air conditioner compressor, from a 208 VAC supply line |
| Buck boost transformers are an economical way to correct a potentially very serious problem |
| Anytime a line voltage change in the 5 to 20% range is required, a buck boost transformer should be considered as your first line-of defense |
| 15.6 A at 16 VAC, 7.8 A at 32 VAC power rating |
