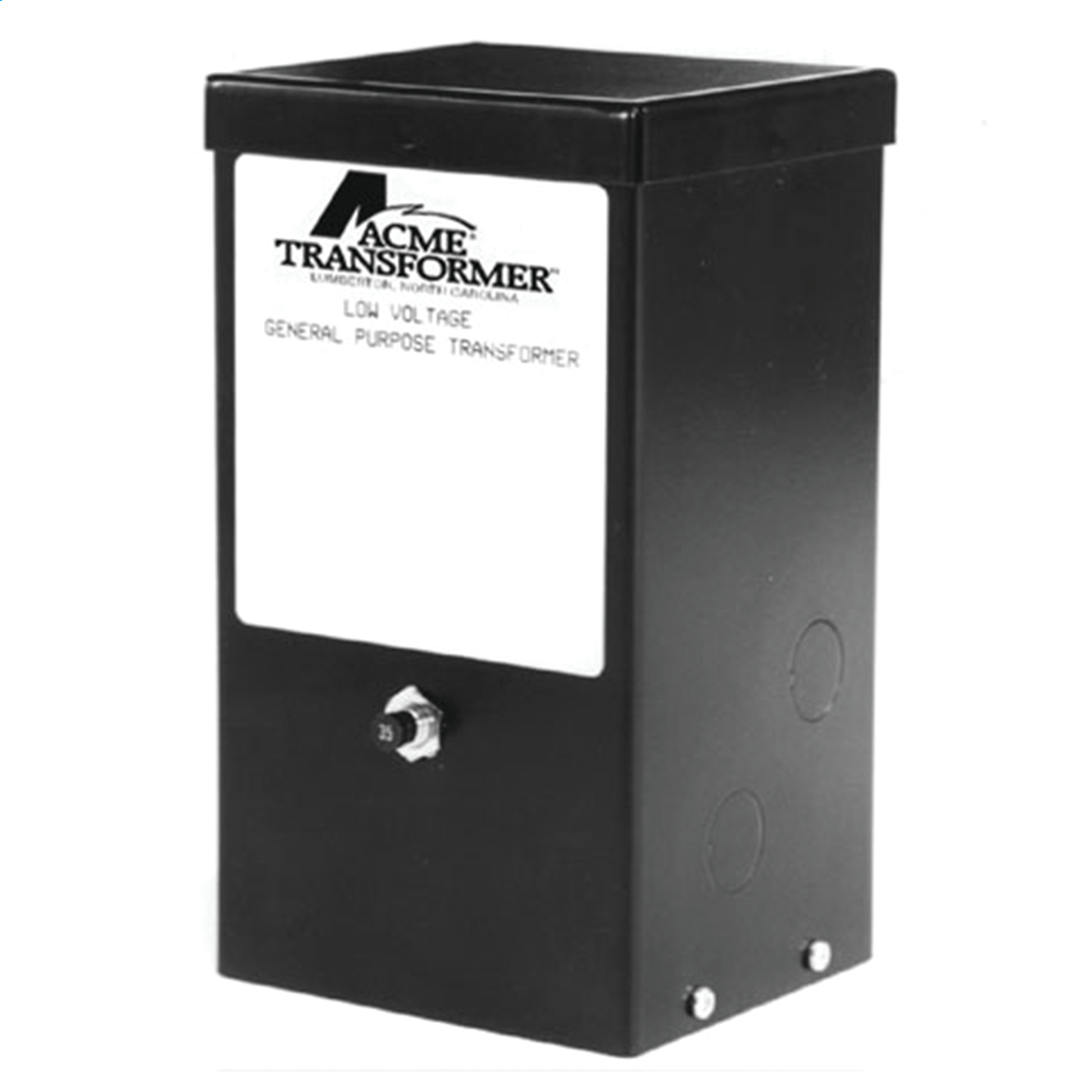

Acme Electric® T179620S General Purpose Low Voltage Lighting Transformer, 120 VAC Input, 12 VDC Output, 20 A
Custom_Product_Images_Illustration
Acme Electric® T179620S General Purpose Low Voltage Lighting Transformer, 120 VAC Input, 12 VDC Output, 20 A
SKU699794
MFGR #T179620S
Your Cost: $297.53/ea
Acme Electric® Lighting Transformer, General Purpose Low Voltage, 120 VAC Input, 12 VDC Output, 20 A, 60 Hz, Lead Wire, NEMA 2, Push to Reset Thermal Breakers, 150 VA Fuse, 115 deg C, Wall Mount, Copper, Black, 9.01 in H x 4.08 in W x 3.88 in D
Acme Electric® Lighting Transformer, General Purpose Low Voltage, 120 VAC Input, 12 VDC Output, 20 A, 60 Hz, Lead Wire, NEMA 2, Push to Reset Thermal Breakers, 150 VA Fuse, 115 deg C, Wall Mount, Copper, Black, 9.01 in H x 4.08 in W x 3.88 in D
Application Encapsulated ARRA Compliant C Breaker Type Push to Reset Thermal Buy American Compliant C Catalog Number T179620S Color Black Connection Type Lead Wire Country of Origin MX Currency USD Dimensions 9.01 in H x 4.08 in W x 3.88 in D Frequency Rating 60 Hz Gross Weight Per Pack 7.0000 lb Gross Weight per Pack Metric 3.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504314065 Height 9.01 in Height [Metric] 22.8854 cm Length 3.88 in Length [Metric] 9.8552 cm Material Copper Model Low Voltage Lighting Transformer Mounting Wall Mounting Type Wall Returnable N Standard UL 379, UL File Number E111069V1,UL Insulation Number H3180, CSA Certified, OSHA Compliant, ANSI, IEEE Standards UL Listed, CSA Certified Temperature Range 115 °C Type General Purpose Low Voltage UNSPSC 39101904 UPC 11 04750341024 UPC 12 047503410240 Width 4.08 in Width [Metric] 10.3632 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Amperage Rating 20 A Enclosure Type NEMA 2 Input Voltage 120 VAC Output Voltage 12 VAC Encapsulated 150 VA, 1 phase 1 phase, 2 windings Input auto-thermal reset switch Output circuit breaker Fully encapsulated core and coil Full fault current carrying Faraday shield Flexible copper lead wire terminations UL class 180 deg C insulation system 115 deg C rise Bottom access Two 0.875 in single knockouts each side Two dual 0.875 in and 1.125 in knockouts on bottom cover
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Encapsulated |
| ARRA Compliant | C |
| Breaker Type | Push to Reset Thermal |
| Buy American Compliant | C |
| Catalog Number | T179620S |
| Color | Black |
| Connection Type | Lead Wire |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 9.01 in H x 4.08 in W x 3.88 in D |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 7.0000 lb |
| Gross Weight per Pack Metric | 3.63 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504314065 |
| Height | 9.01 in |
| Height [Metric] | 22.8854 cm |
| Length | 3.88 in |
| Length [Metric] | 9.8552 cm |
| Material | Copper |
| Model | Low Voltage Lighting Transformer |
| Mounting | Wall |
| Mounting Type | Wall |
| Returnable | N |
| Standard | UL 379, UL File Number E111069V1,UL Insulation Number H3180, CSA Certified, OSHA Compliant, ANSI, IEEE |
| Standards | UL Listed, CSA Certified |
| Temperature Range | 115 °C |
| Type | General Purpose Low Voltage |
| UNSPSC | 39101904 |
| UPC 11 | 04750341024 |
| UPC 12 | 047503410240 |
| Width | 4.08 in |
| Width [Metric] | 10.3632 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Amperage Rating | 20 A |
| Enclosure Type | NEMA 2 |
| Input Voltage | 120 VAC |
| Output Voltage | 12 VAC |
| Encapsulated |
| 150 VA, 1 phase |
| 1 phase, 2 windings |
| Input auto-thermal reset switch |
| Output circuit breaker |
| Fully encapsulated core and coil |
| Full fault current carrying Faraday shield |
| Flexible copper lead wire terminations |
| UL class 180 deg C insulation system 115 deg C rise |
| Bottom access |
| Two 0.875 in single knockouts each side |
| Two dual 0.875 in and 1.125 in knockouts on bottom cover |
