Acme Electric

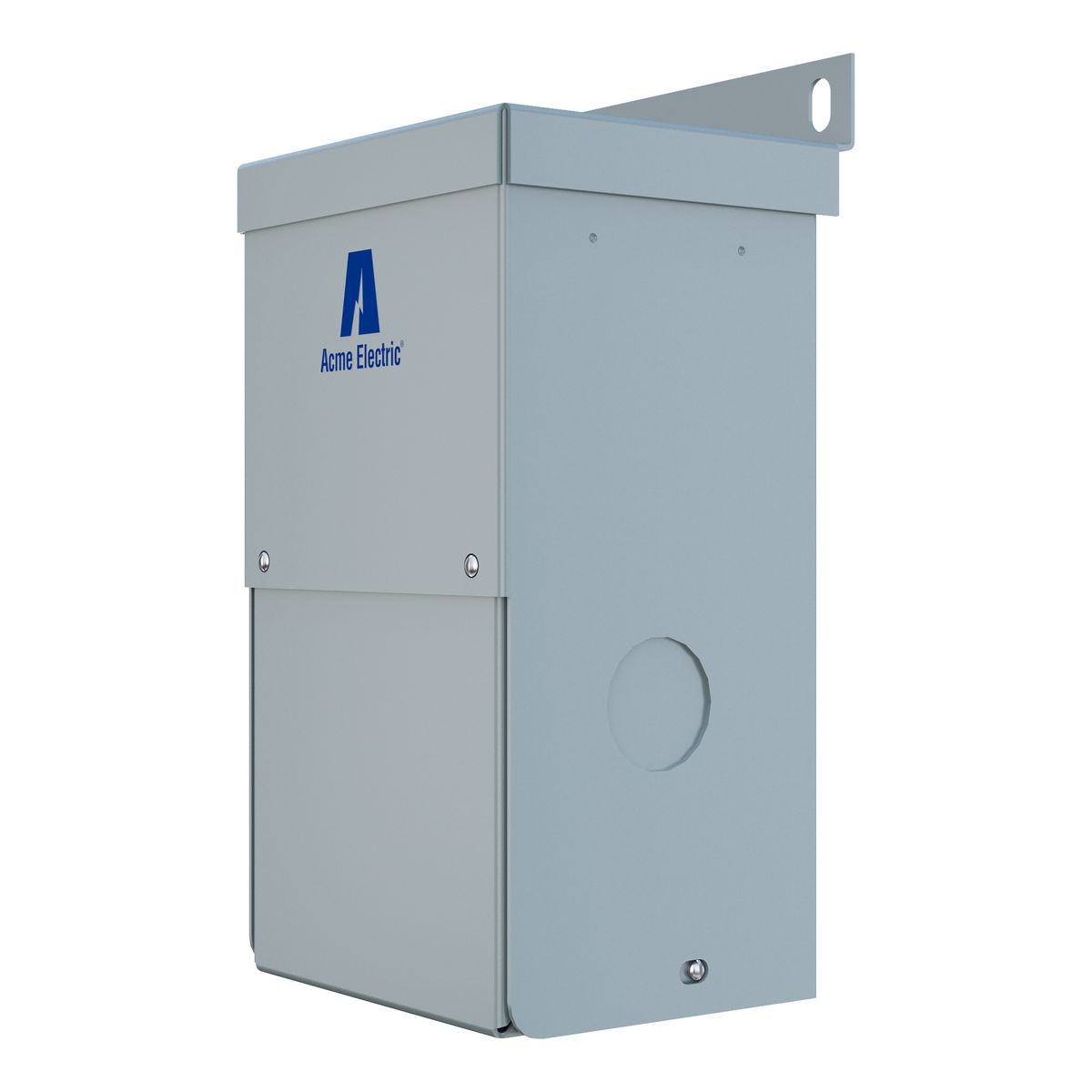

Acme Electric® T153006 Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 0.15 kVA, 50/60 Hz
Custom_Product_Images_Illustration
Acme Electric
Acme Electric® T153006 Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 0.15 kVA, 50/60 Hz
SKU4235
MFGR #T153006
Your Cost: $127.16/ea
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
ARRA Compliant C Buy American Compliant C Catalog Number T153006 Connection Type Wire Lead Screw Cooling Air Cooled/Dry Country of Origin CN Currency USD Dimensions 3.89 in L x 3.67 in W x 7.16 in H Enclosure NEMA 3R Steel Enclosure Type NEMA 3R Fuse Rating Primary: 1.8 AMP For 240 V, 0.9 AMP For 480 V, Secondary: 3.6 AMP For 120 V Gross Weight Per Pack 7.0000 lb Gross Weight per Pack Metric 3.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504314065 Height 7.16 in Height [Metric] 18.1864 cm Insulation Class B/130 deg C Length 3.67 in Length [Metric] 9.3218 cm Maximum Amperage Rating 1.8 A, 0.9 A, 3.6 A Mounting Wall Mounting Type Wall Returnable Y Standard UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number B3223, CSA Certified, OSHA Compliant, ANSI, IEEE Temperature Rating 115 °C Type Dry UNSPSC 39121001 UPC 11 04750308538 UPC 12 047503085387 Width 3.89 in Width [Metric] 9.8806 cm Winding Aluminum, Configuration: Primary - Two Winding, Secondary - Two Winding Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 50/60 Hz Phase 1 Power Rating 0.15 kVA Primary Voltage 240/480 VAC Secondary Voltage 120/240 VAC Encapsulated core and coil; Easy and convenient installation to meet your re quirements, the transformer can be mounted in any position; Long life UL class 130 DEG C insulation system, transformers can be banked for 3-phase service; Large wiring compartment, no conduit or pull boxes required, front access for wiring ease, wiring compartment remains cool; Completely enclosed UL-3R enclosure for indoor/outdoor service, rugged non-ventilated construction; Plenty of knockouts for multi-directional entry; All copper lead wire terminations; Ground studs for use with non-metallic conduit; 10-year limited warranty Ground studs for use with non-metallic conduit Quiet operation with sound levels well below NEMA standards Electrostatic shield for enhanced protection Encapsulated core and coil Long life UL class 130 deg C insulation system, transformers can be banked for 3-phase service Large wiring compartment, no conduit or pull boxes required, front access for wiring ease, wiring compartment remains cool Completely enclosed UL-3R enclosure for indoor/outdoor service, rugged non-ventilated construction Plenty of knockouts for multi-directional entry All copper lead wire terminations Air cooled/dry cooling Four windings Aluminum, two primary winding, two winding secondary Easy and convenient installation to meet your requirements, the transformer can be mounted in any position Plenty of knockouts for multi-directional entry, all copper lead wire terminations 1.8 A for 240 VAC, 0.9 A for 480 VAC primary, 3.6 A for 120 VAC secondary
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | T153006 |
| Connection Type | Wire Lead Screw |
| Cooling | Air Cooled/Dry |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 3.89 in L x 3.67 in W x 7.16 in H |
| Enclosure | NEMA 3R Steel |
| Enclosure Type | NEMA 3R |
| Fuse Rating | Primary: 1.8 AMP For 240 V, 0.9 AMP For 480 V, Secondary: 3.6 AMP For 120 V |
| Gross Weight Per Pack | 7.0000 lb |
| Gross Weight per Pack Metric | 3.63 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504314065 |
| Height | 7.16 in |
| Height [Metric] | 18.1864 cm |
| Insulation | Class B/130 deg C |
| Length | 3.67 in |
| Length [Metric] | 9.3218 cm |
| Maximum Amperage Rating | 1.8 A, 0.9 A, 3.6 A |
| Mounting | Wall |
| Mounting Type | Wall |
| Returnable | Y |
| Standard | UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number B3223, CSA Certified, OSHA Compliant, ANSI, IEEE |
| Temperature Rating | 115 °C |
| Type | Dry |
| UNSPSC | 39121001 |
| UPC 11 | 04750308538 |
| UPC 12 | 047503085387 |
| Width | 3.89 in |
| Width [Metric] | 9.8806 cm |
| Winding | Aluminum, Configuration: Primary - Two Winding, Secondary - Two Winding |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 1 |
| Power Rating | 0.15 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120/240 VAC |
| Encapsulated core and coil; Easy and convenient installation to meet your re quirements, the transformer can be mounted in any position; Long life UL class 130 DEG C insulation system, transformers can be banked for 3-phase service; Large wiring compartment, no conduit or pull boxes required, front access for wiring ease, wiring compartment remains cool; Completely enclosed UL-3R enclosure for indoor/outdoor service, rugged non-ventilated construction; Plenty of knockouts for multi-directional entry; All copper lead wire terminations; Ground studs for use with non-metallic conduit; 10-year limited warranty |
| Ground studs for use with non-metallic conduit |
| Quiet operation with sound levels well below NEMA standards |
| Electrostatic shield for enhanced protection |
| Encapsulated core and coil |
| Long life UL class 130 deg C insulation system, transformers can be banked for 3-phase service |
| Large wiring compartment, no conduit or pull boxes required, front access for wiring ease, wiring compartment remains cool |
| Completely enclosed UL-3R enclosure for indoor/outdoor service, rugged non-ventilated construction |
| Plenty of knockouts for multi-directional entry |
| All copper lead wire terminations |
| Air cooled/dry cooling |
| Four windings |
| Aluminum, two primary winding, two winding secondary |
| Easy and convenient installation to meet your requirements, the transformer can be mounted in any position |
| Plenty of knockouts for multi-directional entry, all copper lead wire terminations |
| 1.8 A for 240 VAC, 0.9 A for 480 VAC primary, 3.6 A for 120 VAC secondary |
