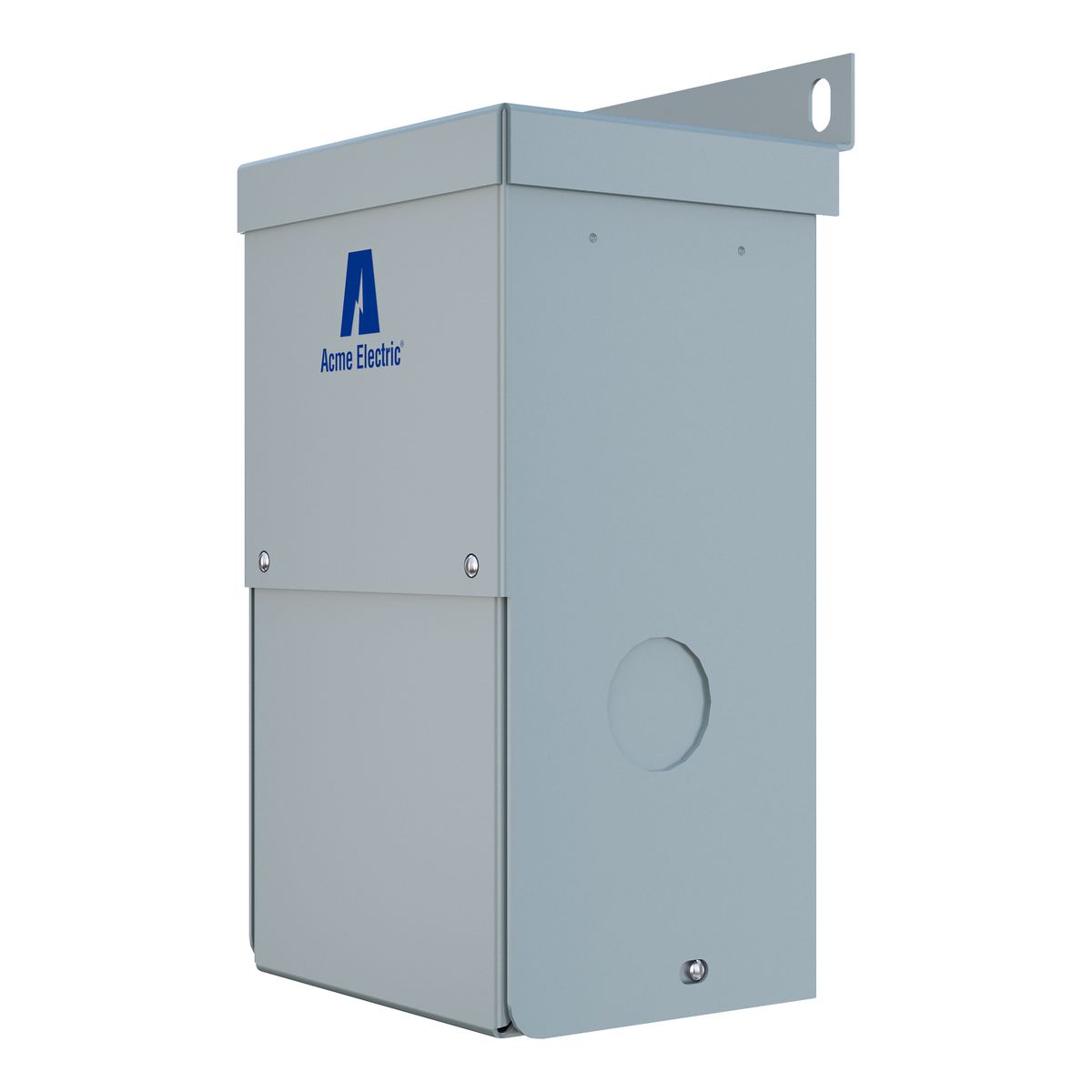

Acme Electric® T153005 Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 0.1 kVA, 50/60 Hz
Isolation Transformers
4234
MFG #: T153005
Acme Electric
104.92000
/ ea
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
- Catalog URL - IDW_DOCUMENT_1480741299932.pdf(Catalog URL)
- Install Instructions 1 URL - 11112_GMEQCKR8X4L35ATS.pdf(Install Instructions 1 URL)
- Seller Home Page URL - en(Seller Home Page URL)
- Install Instructions 1 URL - 11112_HP5W1VA2YL0ZOUM3.pdf(Install Instructions 1 URL)
- Safety Data Sheet URL - HCC_SDS.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 11112_X5VJT47RASY8U3PB.pdf(Spec Sheet URL)
- Warranty URL - WAR_product_warranty_information.pdf(Warranty URL)
- Tech Drawing URL - T153005.dwg(Tech Drawing URL)
- Features
| Encapsulated core and coil; Easy and convenient installation to meet your re quirements, the transformer can be mounted in any position; Long life UL class 130 DEG C insulation system, transformers can be banked for 3-phase service; Large wiring compartment, no conduit or pull boxes required, front access for wiring ease, wiring compartment remains cool; Completely enclosed UL-3R enclosure for indoor/outdoor service, rugged non-ventilated construction; Plenty of knockouts for multi-directional entry; All copper lead wire terminations; Ground studs for use with non-metallic conduit; 10-year limited warranty |
| Ground studs for use with non-metallic conduit |
| Quiet operation with sound levels well below NEMA standards |
| Electrostatic shield for enhanced protection |
| Encapsulated core and coil |
| Long life UL class 130 deg C insulation system, transformers can be banked for 3-phase service |
| Large wiring compartment, no conduit or pull boxes required, front access for wiring ease, wiring compartment remains cool |
| Completely enclosed UL-3R enclosure for indoor/outdoor service, rugged non-ventilated construction |
| Plenty of knockouts for multi-directional entry |
| All copper lead wire terminations |
| Air cooled/dry cooling |
| Four windings |
| Aluminum, two primary winding, two winding secondary |
| Easy and convenient installation to meet your requirements, the transformer can be mounted in any position |
| Plenty of knockouts for multi-directional entry, all copper lead wire terminations |
| 1.2 A for 240 VAC, 0.6 A for 480 VAC primary, 2.4 A for 120 VAC secondary |
