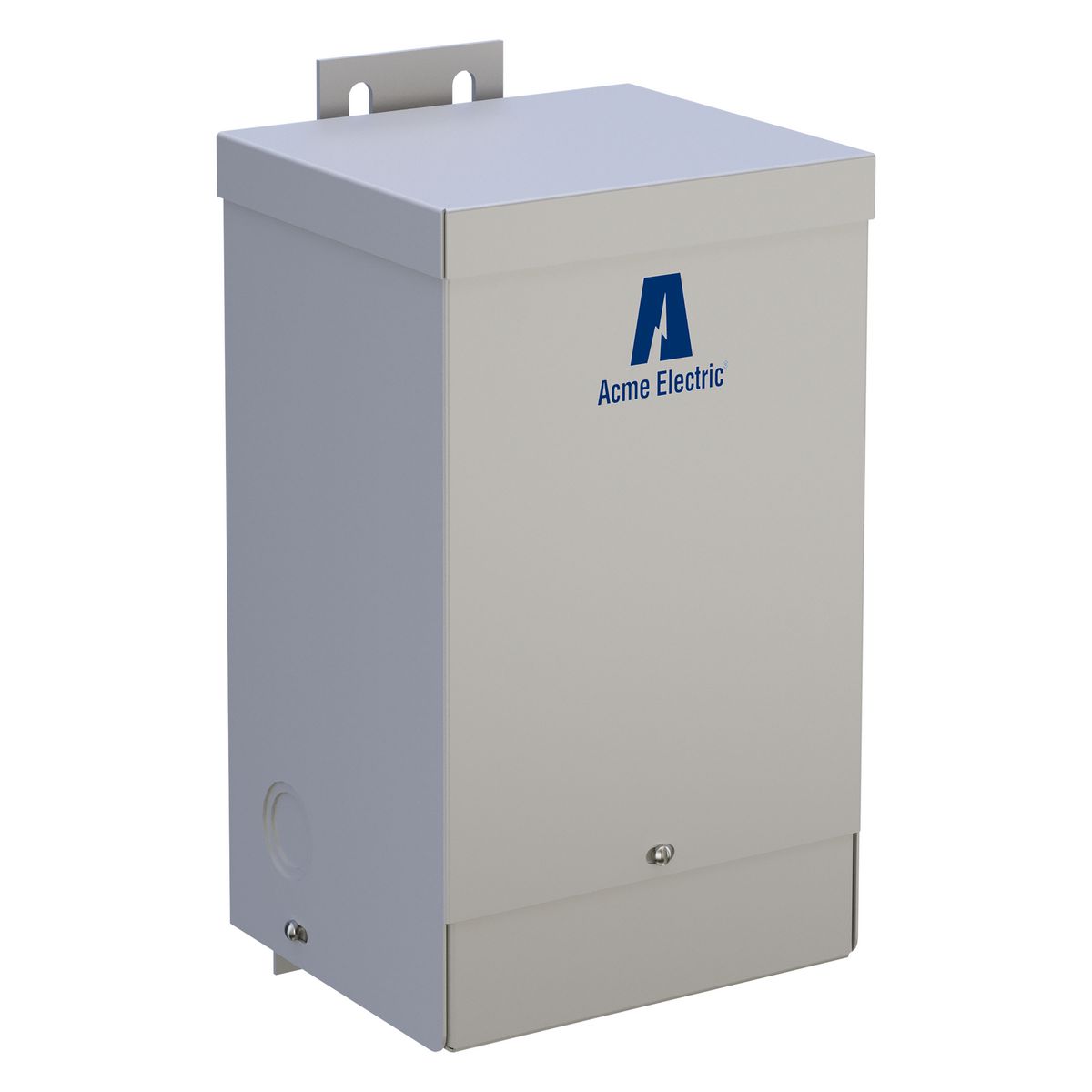

Acme Electric® T137922 Isolation Buck Boost Transformer, 240/480 VAC Primary, 24/48 VAC Secondary, 2 kVA, 60 Hz, 1 Phase
Custom_Product_Images_Illustration
Acme Electric® T137922 Isolation Buck Boost Transformer, 240/480 VAC Primary, 24/48 VAC Secondary, 2 kVA, 60 Hz, 1 Phase
SKU1158867
MFGR #T137922
$/ea
Acme Electric® Buck Boost Transformer, Isolation, 240/480 VAC Primary, 24/48 VAC Secondary, 2 kVA, 60 Hz, 1 Phase, 83.2/41.6 A Maximum, Wire Lead Screw, Wall Mount, Class H/180 deg C, NEMA 3R/IP54, 115 deg C, 13 in H x 5.5 in W x 5.13 in D
Acme Electric® Buck Boost Transformer, Isolation, 240/480 VAC Primary, 24/48 VAC Secondary, 2 kVA, 60 Hz, 1 Phase, 83.2/41.6 A Maximum, Wire Lead Screw, Wall Mount, Class H/180 deg C, NEMA 3R/IP54, 115 deg C, 13 in H x 5.5 in W x 5.13 in D
Application Encapsulated ARRA Compliant C Buy American Compliant C Catalog Number T137922 Connection Type Lead Wire Country of Origin MX Currency USD Dimensions 13 in H x 5.5 in W x 5.13 in D Enclosure Type NEMA 3R/IP54 Gross Weight Per Pack 35.0000 lb Gross Weight per Pack Metric 15.88 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 7.16 in Height [Metric] 18.1864 cm Insulation Class H/180 deg C Length 3.67 in Length [Metric] 9.3218 cm Maximum Amperage Rating 83.2/41.6 A Mounting Wall Mounting Type Wall Number Of Phases 1 Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506CSA C22.2 No. 47 Temperature Rating 115 °C Type Isolation UNSPSC 39121025 UPC 11 04750308630 UPC 12 047503086308 Width 3.89 in Width [Metric] 9.8806 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 1 Power Rating 2 kVA Primary Voltage 240/480 VAC Secondary Voltage 24/48 VAC Encapsulated 2 kVA Encapsulated core and coil Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20 PCT The most common example is boosting 208 - 230 VAC, usually to operate a 230 VAC motor such as an air-conditioner compressor, from a 208 VAC supply line Anytime a line voltage change in the 5 to 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Encapsulated |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | T137922 |
| Connection Type | Lead Wire |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 13 in H x 5.5 in W x 5.13 in D |
| Enclosure Type | NEMA 3R/IP54 |
| Gross Weight Per Pack | 35.0000 lb |
| Gross Weight per Pack Metric | 15.88 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 7.16 in |
| Height [Metric] | 18.1864 cm |
| Insulation | Class H/180 deg C |
| Length | 3.67 in |
| Length [Metric] | 9.3218 cm |
| Maximum Amperage Rating | 83.2/41.6 A |
| Mounting | Wall |
| Mounting Type | Wall |
| Number Of Phases | 1 |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506CSA C22.2 No. 47 |
| Temperature Rating | 115 °C |
| Type | Isolation |
| UNSPSC | 39121025 |
| UPC 11 | 04750308630 |
| UPC 12 | 047503086308 |
| Width | 3.89 in |
| Width [Metric] | 9.8806 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 2 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 24/48 VAC |
| Encapsulated |
| 2 kVA |
| Encapsulated core and coil |
| Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20 PCT |
| The most common example is boosting 208 - 230 VAC, usually to operate a 230 VAC motor such as an air-conditioner compressor, from a 208 VAC supply line |
| Anytime a line voltage change in the 5 to 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense |
