Acme Electric

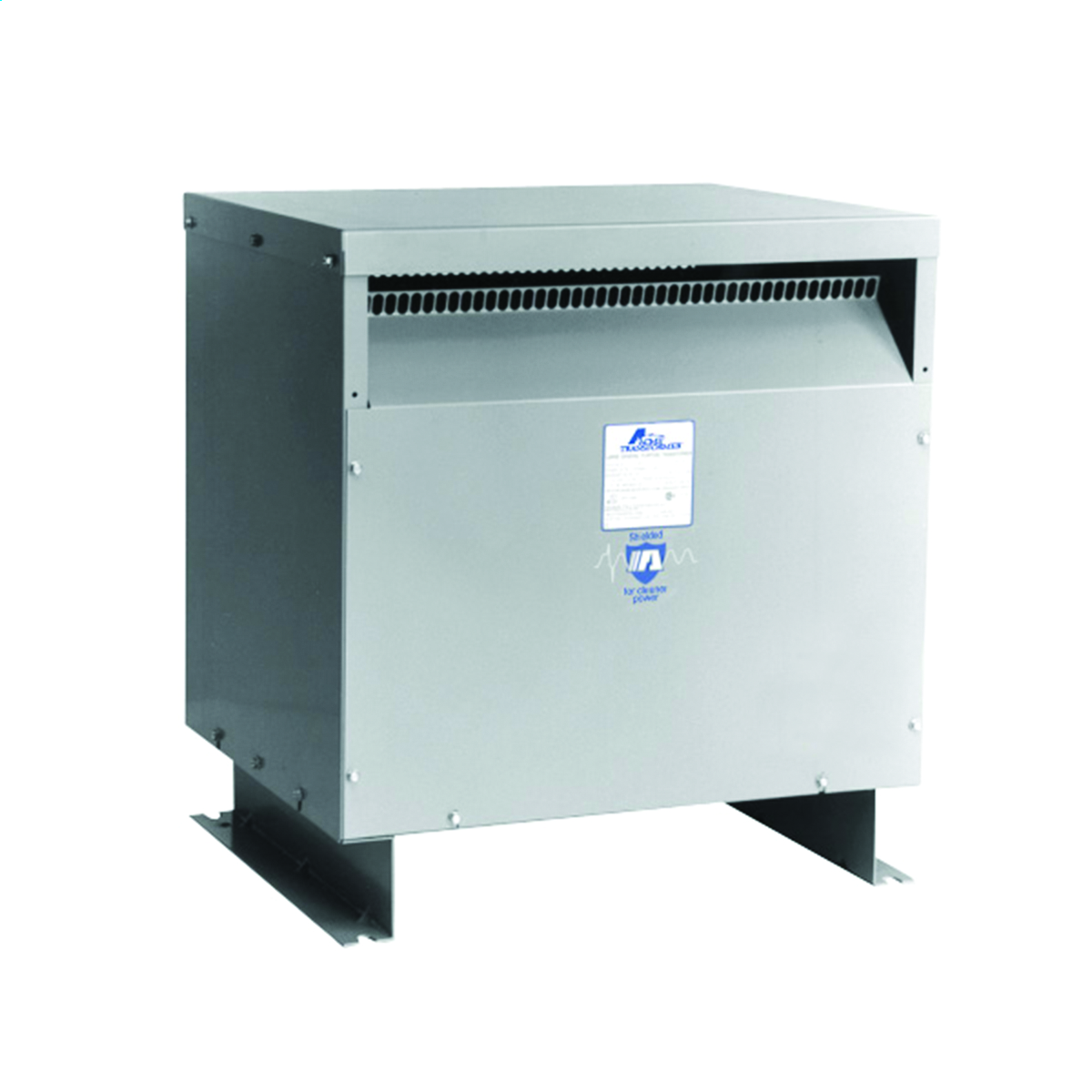

Acme Electric® DTGB0754S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 460Y/266 VAC Secondary, 75 kVA
Custom_Product_Images_Illustration
Acme Electric
Acme Electric® DTGB0754S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 460Y/266 VAC Secondary, 75 kVA
SKU387862
MFGR #DTGB0754S
Your Cost: $5,153.07/ea
The Acme Drive Isolation Transformers are specifically designed to accommodate the special voltages and kVA sizes unique to AC and DC motor drive applications.
The Acme Drive Isolation Transformers are specifically designed to accommodate the special voltages and kVA sizes unique to AC and DC motor drive applications.
Application Drive Isolation ARRA Compliant C Buy American Compliant C Catalog Number DTGB0754S Connection Type Lead Wire Country of Origin MX Currency USD Dimensions 29.9 in H x 28.15 in W x 22.37 in D Enclosure Type NEMA 3R Frequency 60 Hz Gross Weight Per Pack 570.0000 lb Gross Weight per Pack Metric 706.26 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330040 Height 29.90 in Height [Metric] 75.9460 cm KVA Rating 75 Length 22.37 in Length [Metric] 56.8198 cm Mounting Floor Mounting Type Floor Number Of Phases 3 Number Of Taps 4 Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 1561E12547C22.2 File No. 47LR7357-32 Temperature Rating 150 °C Type Ventilated UNSPSC 39121029 UPC 11 04750308721 UPC 12 047503087213 Width 28.15 in Width [Metric] 71.5010 cm Stock Status NORMALLY STOCKED Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 3 Power Rating 75 kVA Primary Voltage 460 VAC Delta Secondary Voltage 460Y/266 VAC Drive Isolation Encapsulated and ventilated designs, all ventilated units, are of strip wound construction Acme reinforced core assemblies enhance quiet operation Nominally 6% impedance Full capacity taps on all units Full range of kVA ratings cover all standard drive systems Ample wiring compartment for easy cable entry Aluminum foil windings Copper wire terminations Wound/distributed core construction Copper terminations for trouble free operation Wound core and strip winding for low losses Electrostatic shield for enhanced protection 2.5% taps steps
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Drive Isolation |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | DTGB0754S |
| Connection Type | Lead Wire |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 29.9 in H x 28.15 in W x 22.37 in D |
| Enclosure Type | NEMA 3R |
| Frequency | 60 Hz |
| Gross Weight Per Pack | 570.0000 lb |
| Gross Weight per Pack Metric | 706.26 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330040 |
| Height | 29.90 in |
| Height [Metric] | 75.9460 cm |
| KVA Rating | 75 |
| Length | 22.37 in |
| Length [Metric] | 56.8198 cm |
| Mounting | Floor |
| Mounting Type | Floor |
| Number Of Phases | 3 |
| Number Of Taps | 4 |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 1561E12547C22.2 File No. 47LR7357-32 |
| Temperature Rating | 150 °C |
| Type | Ventilated |
| UNSPSC | 39121029 |
| UPC 11 | 04750308721 |
| UPC 12 | 047503087213 |
| Width | 28.15 in |
| Width [Metric] | 71.5010 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Power Rating | 75 kVA |
| Primary Voltage | 460 VAC Delta |
| Secondary Voltage | 460Y/266 VAC |
| Drive Isolation |
| Encapsulated and ventilated designs, all ventilated units, are of strip wound construction |
| Acme reinforced core assemblies enhance quiet operation |
| Nominally 6% impedance |
| Full capacity taps on all units |
| Full range of kVA ratings cover all standard drive systems |
| Ample wiring compartment for easy cable entry |
| Aluminum foil windings |
| Copper wire terminations |
| Wound/distributed core construction |
| Copper terminations for trouble free operation |
| Wound core and strip winding for low losses |
| Electrostatic shield for enhanced protection |
| 2.5% taps steps |
