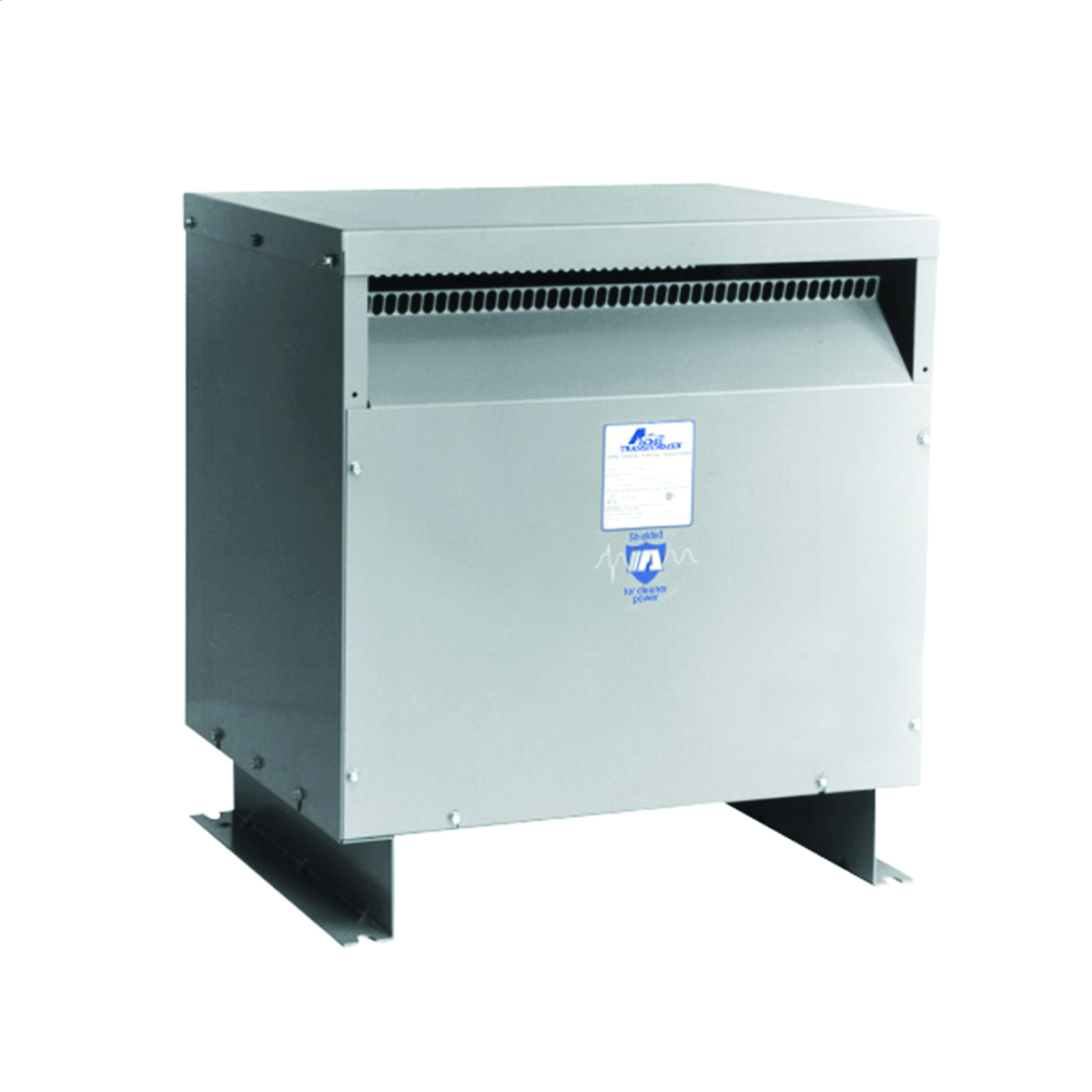

Acme Electric® DTGB0634S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 460Y/266 VAC Secondary, 63 kVA
Custom_Product_Images_Illustration
Acme Electric® DTGB0634S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 460Y/266 VAC Secondary, 63 kVA
SKU1222937
MFGR #DTGB0634S
Your Cost: $4,869.89/ea
The Acme Drive Isolation Transformers are specifically designed to accommodate the special voltages and kVA sizes unique to AC and DC motor drive applications.
The Acme Drive Isolation Transformers are specifically designed to accommodate the special voltages and kVA sizes unique to AC and DC motor drive applications.
Application Drive Isolation ARRA Compliant C Buy American Compliant C Catalog Number DTGB0634S Country of Origin MX Currency USD Frequency 60 Hz Gross Weight Per Pack 510.0000 lb Gross Weight per Pack Metric 231.34 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330040 Height 29.90 in Height [Metric] 75.9460 cm KVA Rating 63 kVA Length 22.37 in Length [Metric] 56.8198 cm Mounting Floor Returnable Y Standards UL 1561, File No E12547 Listed, C22.2 No 47, LR7357-32 Certified Type Isolation transformer UNSPSC 39121029 UPC 11 04750300084 UPC 12 047503000847 Width 28.15 in Width [Metric] 71.5010 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 3 Primary Voltage 460D V Secondary Voltage 460Y/266 V Drive Isolation Encapsulated and ventilated designs, all ventilated units, are of strip wound construction Acme reinforced core assemblies enhance quiet operation Nominally 6% impedance Full capacity taps are featured on all units Full range of kVA ratings cover all standard drive systems Ample wiring compartment for easy cable entry Aluminum foil windings Copper wire terminations Wound/distributed core construction Copper terminations for trouble free operation Wound core and strip winding for low losses Electrostatic shield for enhanced protection 2.5% taps steps
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Drive Isolation |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | DTGB0634S |
| Country of Origin | MX |
| Currency | USD |
| Frequency | 60 Hz |
| Gross Weight Per Pack | 510.0000 lb |
| Gross Weight per Pack Metric | 231.34 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330040 |
| Height | 29.90 in |
| Height [Metric] | 75.9460 cm |
| KVA Rating | 63 kVA |
| Length | 22.37 in |
| Length [Metric] | 56.8198 cm |
| Mounting | Floor |
| Returnable | Y |
| Standards | UL 1561, File No E12547 Listed, C22.2 No 47, LR7357-32 Certified |
| Type | Isolation transformer |
| UNSPSC | 39121029 |
| UPC 11 | 04750300084 |
| UPC 12 | 047503000847 |
| Width | 28.15 in |
| Width [Metric] | 71.5010 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Primary Voltage | 460D V |
| Secondary Voltage | 460Y/266 V |
| Drive Isolation |
| Encapsulated and ventilated designs, all ventilated units, are of strip wound construction |
| Acme reinforced core assemblies enhance quiet operation |
| Nominally 6% impedance |
| Full capacity taps are featured on all units |
| Full range of kVA ratings cover all standard drive systems |
| Ample wiring compartment for easy cable entry |
| Aluminum foil windings |
| Copper wire terminations |
| Wound/distributed core construction |
| Copper terminations for trouble free operation |
| Wound core and strip winding for low losses |
| Electrostatic shield for enhanced protection |
| 2.5% taps steps |
