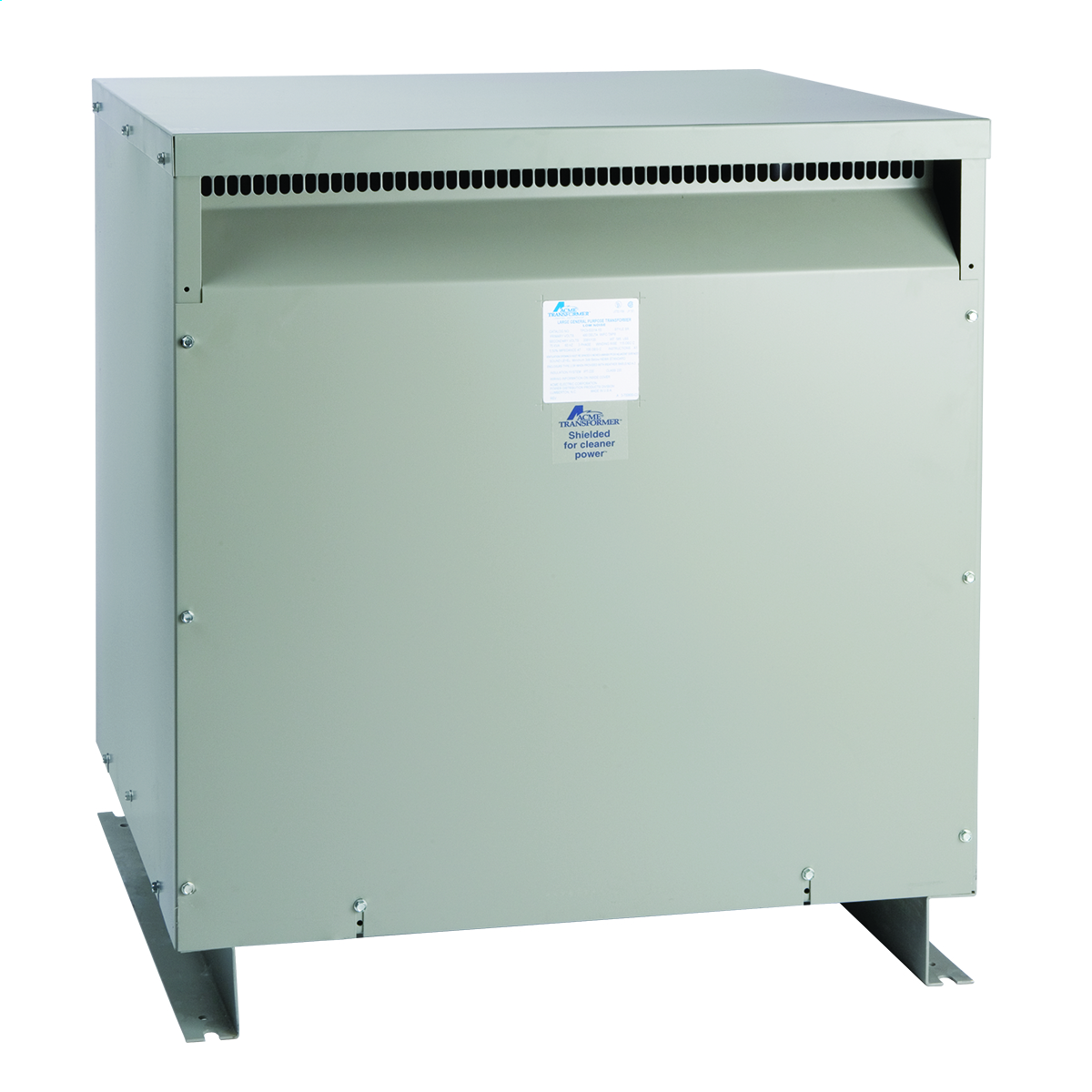

Acme Electric® DTGB03304S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 460Y/266 VAC Secondary, 330 kVA
Custom_Product_Images_Illustration
Acme Electric® DTGB03304S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 460Y/266 VAC Secondary, 330 kVA
SKU526720
MFGR #DTGB03304S
Your Cost: $16,588.62/ea
The Acme Drive Isolation Transformers are specifically designed to accommodate the special voltages and kVA sizes unique to AC and DC motor drive applications.
The Acme Drive Isolation Transformers are specifically designed to accommodate the special voltages and kVA sizes unique to AC and DC motor drive applications.
Application Drive Isolation ARRA Compliant C Buy American Compliant C Catalog Number DTGB03304S Connection Type Lead Wire Country of Origin MX Currency USD Dimensions 45.6 in H x 39.5 in W x 35.5 in D Enclosure Type NEMA 3R Frequency 60 Hz Gross Weight Per Pack 1799.0000 lb Gross Weight per Pack Metric 816.03 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330040 Height 45.60 in Height [Metric] 115.8240 cm KVA Rating 330 Length 35.50 in Length [Metric] 90.1700 cm Mounting Floor Mounting Type Floor Returnable Y Standards UL 1561File No. E12547 ListedC22.2 No. 47LR7357-32 Certified Temperature Rating 150 °C Type Ventilated UNSPSC 39121029 UPC 11 04750300079 UPC 12 047503000793 Width 39.50 in Width [Metric] 100.3300 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 3 Power Rating 330 kVA Primary Voltage 460 VAC Delta Secondary Voltage 460Y/266 VAC Drive Isolation Encapsulated and ventilated designs, all ventilated units, are of strip wound construction Acme reinforced core assemblies enhance quiet operation Nominally 6% impedance Full capacity taps are featured on all units Full range of kVA ratings cover all standard drive systems Ample wiring compartment for easy cable entry Aluminum foil windings Copper wire terminations Wound/distributed core construction Copper terminations for trouble free operation Wound core and strip winding for low losses Electrostatic shield for enhanced protection 2.5% taps steps
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Drive Isolation |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | DTGB03304S |
| Connection Type | Lead Wire |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 45.6 in H x 39.5 in W x 35.5 in D |
| Enclosure Type | NEMA 3R |
| Frequency | 60 Hz |
| Gross Weight Per Pack | 1799.0000 lb |
| Gross Weight per Pack Metric | 816.03 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330040 |
| Height | 45.60 in |
| Height [Metric] | 115.8240 cm |
| KVA Rating | 330 |
| Length | 35.50 in |
| Length [Metric] | 90.1700 cm |
| Mounting | Floor |
| Mounting Type | Floor |
| Returnable | Y |
| Standards | UL 1561File No. E12547 ListedC22.2 No. 47LR7357-32 Certified |
| Temperature Rating | 150 °C |
| Type | Ventilated |
| UNSPSC | 39121029 |
| UPC 11 | 04750300079 |
| UPC 12 | 047503000793 |
| Width | 39.50 in |
| Width [Metric] | 100.3300 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Power Rating | 330 kVA |
| Primary Voltage | 460 VAC Delta |
| Secondary Voltage | 460Y/266 VAC |
| Drive Isolation |
| Encapsulated and ventilated designs, all ventilated units, are of strip wound construction |
| Acme reinforced core assemblies enhance quiet operation |
| Nominally 6% impedance |
| Full capacity taps are featured on all units |
| Full range of kVA ratings cover all standard drive systems |
| Ample wiring compartment for easy cable entry |
| Aluminum foil windings |
| Copper wire terminations |
| Wound/distributed core construction |
| Copper terminations for trouble free operation |
| Wound core and strip winding for low losses |
| Electrostatic shield for enhanced protection |
| 2.5% taps steps |
