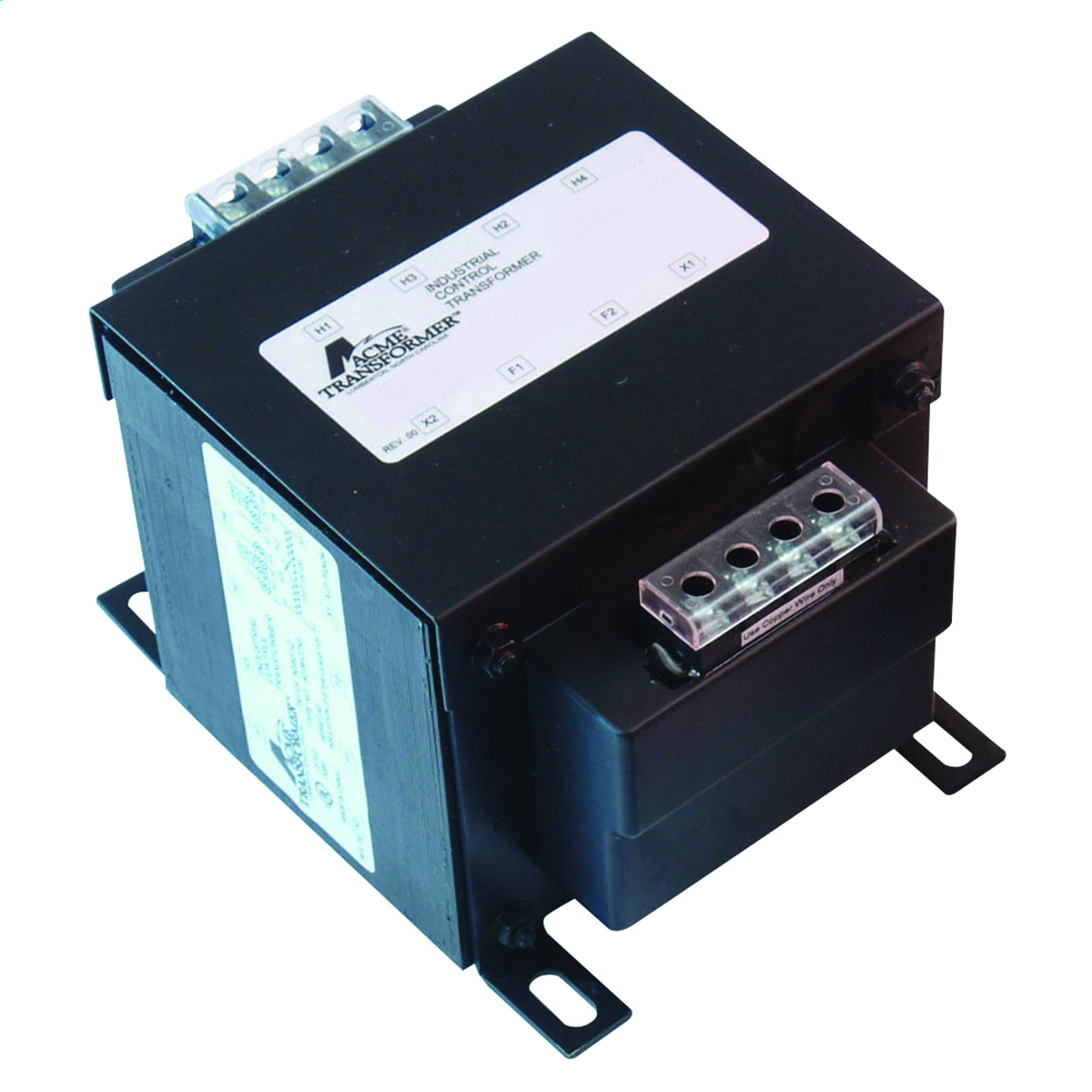

Acme Electric® CE060500 Industrial Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 500 VA, 50/60 Hz
Custom_Product_Images_Illustration
Acme Electric® CE060500 Industrial Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 500 VA, 50/60 Hz
SKU1344622
MFGR #CE060500
Your Cost: $124.15/ea
The Acme Electric AE and CE Series Industrial Control Transformers are designed specifically for machine tool control circuit applications. These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage. Designed to meet or exceed the demands of international standards, combined with the full breadth of product offering, the AE and CE Series Transformers from Acme Electric are the ideal solution for your industrial control applications.
The Acme Electric AE and CE Series Industrial Control Transformers are designed specifically for machine tool control circuit applications. These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage. Designed to meet or exceed the demands of international standards, combined with the full breadth of product offering, the AE and CE Series Transformers from Acme Electric are the ideal solution for your industrial control applications.
Application For Motor Starters, Contactors, Solenoids And Timers Or Other Loads ARRA Compliant C Buy American Compliant C Catalog Number CE060500 Country of Origin CN Enclosure NEMA 3R Steel Gross Weight Per Pack 18.8000 lb Gross Weight per Pack Metric 8.53 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504314065 Height 4.66 in Height [Metric] 11.8364 cm Insulation Class 105 DEG C Class A Length 6.00 in Length [Metric] 15.2400 cm Mounting Floor Number Of Phases 1 Returnable N Standard C/UL Listed, CSA Certified, CE Certified, OSHA Compliant, ANSI, IEEE Standards cUL Listed, CSA Certified, CE Certified, OSHA Compliant, ANSI Approved, IEEE Temperature Rating 55 DEG C Rise Type CE Series Industrial Control Transformer UNSPSC 39121026 UPC 11 04750319674 UPC 12 047503086049 Width 5.25 in Width [Metric] 13.3350 cm Wiring Configuration Wire Lead Screw Terminal Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 50/60 Hz Primary Voltage 240/480, 230/460, 220/440 in Secondary Voltage 120/115/110 V For Motor Starters, Contactors, Solenoids And Timers Or Other Loads Encapsulated core and coil; These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage; Epoxy encapsulated design protects core and coil assembly from potentially damaging contaminants; Integrally molded terminal blocks with isolation barriers to prevent arc over, terminal blocks allow full access for ring terminals for easy installation and solid termination; Heavy gauge steel mounting feet; Dual labeling for easy product identification when equipped with a fuse block; Transformer enclosure temperature shall not exceed 65 DEG C plus the ambient; Transformer shall incorporate an electrostatic shield for the attenuation of voltage spikes, line noise and transients; Transformer coils are typically wound with aluminum or copper for increased insulation life, cooler operation and lower losses; The AE and CE series design improves the dissipation of the heat away from the core and coil assembly providing cooler operation; In addition, the AE and CE series industrial control transformers seal the transformer's windings and internal terminations within an epoxy encapsulated encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants; Furthermore, Acme's compact design helps minimize the mounting footprint, providing more flexibility in applications where space is a premium; CE series offers touch-proof terminals, isolating live contacts for additional safety; Integrally mounted fuse blocks available in standard and touch-proof style; 10-year limited warranty Epoxy encapsulated design protects core and coil assembly from potentially damaging contaminants Integrally molded terminal blocks with isolation barriers to prevent arc over, terminal blocks allow full access for ring terminals for easy installation and solid termination Heavy gauge steel mounting feet Available factory or field installed fuse blocks provide integral fusing on the primary or primary and secondary Dual labeling for easy product identification when equipped with a fuse block 0.31 x 0.69 in mounting slot Encapsulated core and coil These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage Transformer enclosure temperature shall not exceed 65 deg C plus the ambient Transformer shall incorporate an electrostatic shield for the attenuation of voltage spikes, line noise and transients Transformer coils are typically wound with aluminum or copper for increased insulation life, cooler operation and lower losses The AE and CE series design improves the dissipation of the heat away from the core and coil assembly providing cooler operation In addition, the AE and CE series industrial control transformers seal the transformer's windings and internal terminations within an epoxy encapsulated encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants 240 x 480, 230 x 460, 220 x 440 VAC primary volt 120/115/110 VAC secondary volt Furthermore, Acme compact design helps minimize the mounting footprint, providing more flexibility in applications where space is a premium
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Motor Starters, Contactors, Solenoids And Timers Or Other Loads |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | CE060500 |
| Country of Origin | CN |
| Enclosure | NEMA 3R Steel |
| Gross Weight Per Pack | 18.8000 lb |
| Gross Weight per Pack Metric | 8.53 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504314065 |
| Height | 4.66 in |
| Height [Metric] | 11.8364 cm |
| Insulation Class | 105 DEG C Class A |
| Length | 6.00 in |
| Length [Metric] | 15.2400 cm |
| Mounting | Floor |
| Number Of Phases | 1 |
| Returnable | N |
| Standard | C/UL Listed, CSA Certified, CE Certified, OSHA Compliant, ANSI, IEEE |
| Standards | cUL Listed, CSA Certified, CE Certified, OSHA Compliant, ANSI Approved, IEEE |
| Temperature Rating | 55 DEG C Rise |
| Type | CE Series Industrial Control Transformer |
| UNSPSC | 39121026 |
| UPC 11 | 04750319674 |
| UPC 12 | 047503086049 |
| Width | 5.25 in |
| Width [Metric] | 13.3350 cm |
| Wiring Configuration | Wire Lead Screw Terminal |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 50/60 Hz |
| Primary Voltage | 240/480, 230/460, 220/440 in |
| Secondary Voltage | 120/115/110 V |
| For Motor Starters, Contactors, Solenoids And Timers Or Other Loads |
| Encapsulated core and coil; These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage; Epoxy encapsulated design protects core and coil assembly from potentially damaging contaminants; Integrally molded terminal blocks with isolation barriers to prevent arc over, terminal blocks allow full access for ring terminals for easy installation and solid termination; Heavy gauge steel mounting feet; Dual labeling for easy product identification when equipped with a fuse block; Transformer enclosure temperature shall not exceed 65 DEG C plus the ambient; Transformer shall incorporate an electrostatic shield for the attenuation of voltage spikes, line noise and transients; Transformer coils are typically wound with aluminum or copper for increased insulation life, cooler operation and lower losses; The AE and CE series design improves the dissipation of the heat away from the core and coil assembly providing cooler operation; In addition, the AE and CE series industrial control transformers seal the transformer's windings and internal terminations within an epoxy encapsulated encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants; Furthermore, Acme's compact design helps minimize the mounting footprint, providing more flexibility in applications where space is a premium; CE series offers touch-proof terminals, isolating live contacts for additional safety; Integrally mounted fuse blocks available in standard and touch-proof style; 10-year limited warranty |
| Epoxy encapsulated design protects core and coil assembly from potentially damaging contaminants |
| Integrally molded terminal blocks with isolation barriers to prevent arc over, terminal blocks allow full access for ring terminals for easy installation and solid termination |
| Heavy gauge steel mounting feet |
| Available factory or field installed fuse blocks provide integral fusing on the primary or primary and secondary |
| Dual labeling for easy product identification when equipped with a fuse block |
| 0.31 x 0.69 in mounting slot |
| Encapsulated core and coil |
| These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage |
| Transformer enclosure temperature shall not exceed 65 deg C plus the ambient |
| Transformer shall incorporate an electrostatic shield for the attenuation of voltage spikes, line noise and transients |
| Transformer coils are typically wound with aluminum or copper for increased insulation life, cooler operation and lower losses |
| The AE and CE series design improves the dissipation of the heat away from the core and coil assembly providing cooler operation |
| In addition, the AE and CE series industrial control transformers seal the transformer's windings and internal terminations within an epoxy encapsulated encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants |
| 240 x 480, 230 x 460, 220 x 440 VAC primary volt |
| 120/115/110 VAC secondary volt |
| Furthermore, Acme compact design helps minimize the mounting footprint, providing more flexibility in applications where space is a premium |
