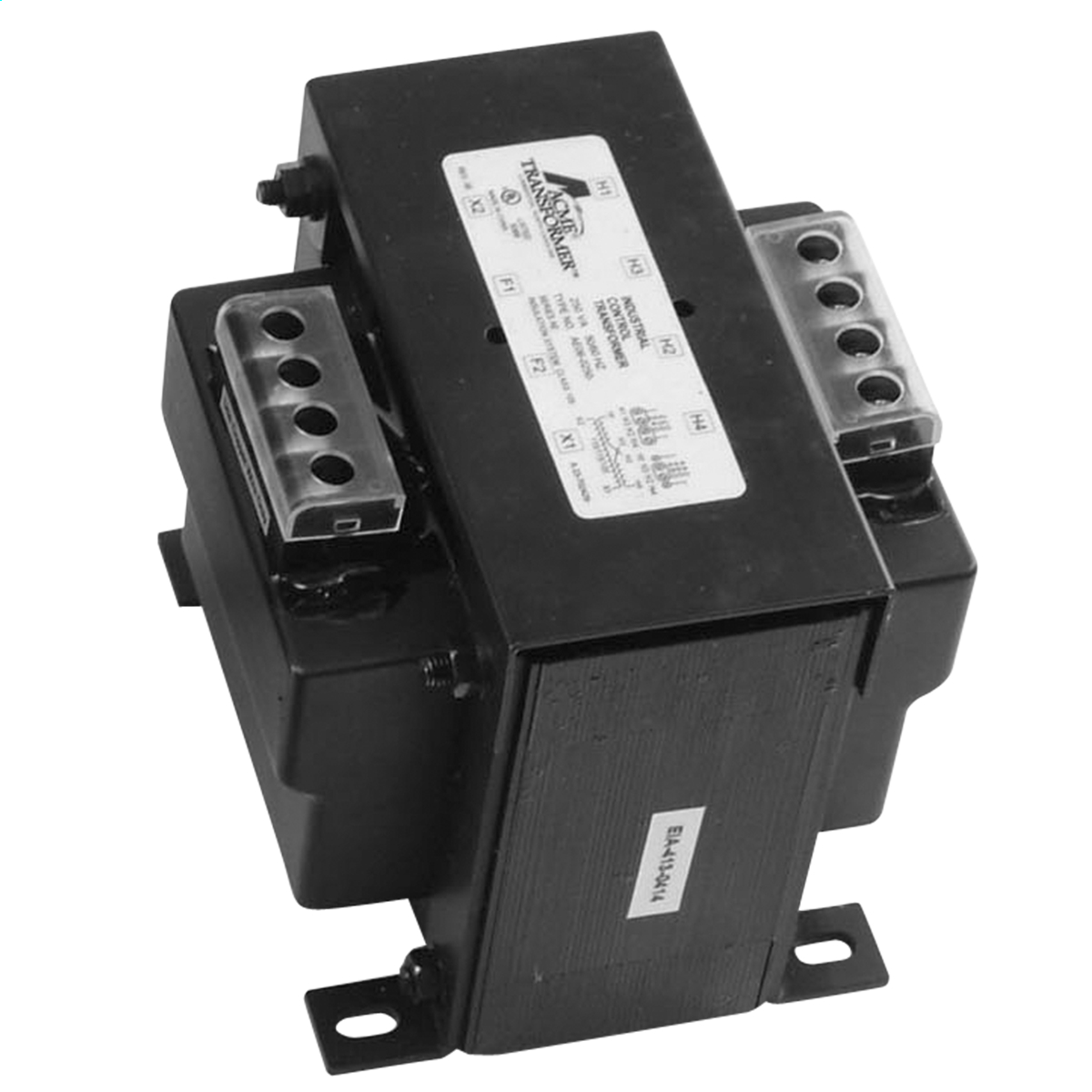

Acme Electric® CE040050 Industrial Control Transformer, 380/400/415 VAC Primary, 110/220 VAC Secondary, 50 VA, 50/60 Hz
Control Transformers
623416
MFG #: CE040050
Acme Electric
32.78000
/ ea
- Full Eng Drawing URL - IDW_DOCUMENT_1480738207446.pdf(Full Eng Drawing URL)
- Safety Data Sheet URL - HCC_SDS.pdf(Safety Data Sheet URL)
- Seller Home Page URL - en(Seller Home Page URL)
- Spec Sheet URL - ds-822-datasheet(Spec Sheet URL)
- Tech Drawing URL - Acme_CE040050_TECHNICAL_DRAWINGS.dwg(Tech Drawing URL)
- Warranty URL - WAR_product_warranty_information.pdf(Warranty URL)
- Applications
- Features
| Open Core & Coil |
| 50 VA |
| Epoxy encapsulated design protects core and coil assembly from potentially damaging contaminants |
| Integrally molded terminal blocks with isolation barriers to prevent arc over, terminal blocks allow full access for ring terminals for easy installation and solid termination |
| Heavy gauge steel mounting feet |
| Available factory or field installed fuse blocks provide integral fusing on the primary or primary and secondary |
| Dual labeling for easy product identification when equipped with a fuse block |
| 0.2 x 0.4 in mounting slot |
| Encapsulated core and coil |
| These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage |
| Transformer enclosure temperature shall not exceed 65 deg C plus the ambient |
| Transformer shall incorporate an electrostatic shield for the attenuation of voltage spikes, line noise and transients |
| Transformer coils are typically wound with aluminum or copper for increased insulation life, cooler operation and lower losses |
| The AE and CE series design improves the dissipation of the heat away from the core and coil assembly providing cooler operation |
| In addition, the AE and CE series industrial control transformers seal the transformer's windings and internal terminations within an epoxy encapsulated encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants |
| Furthermore, Acme compact design helps minimize the mounting footprint, providing more flexibility in applications where space is a premium |
