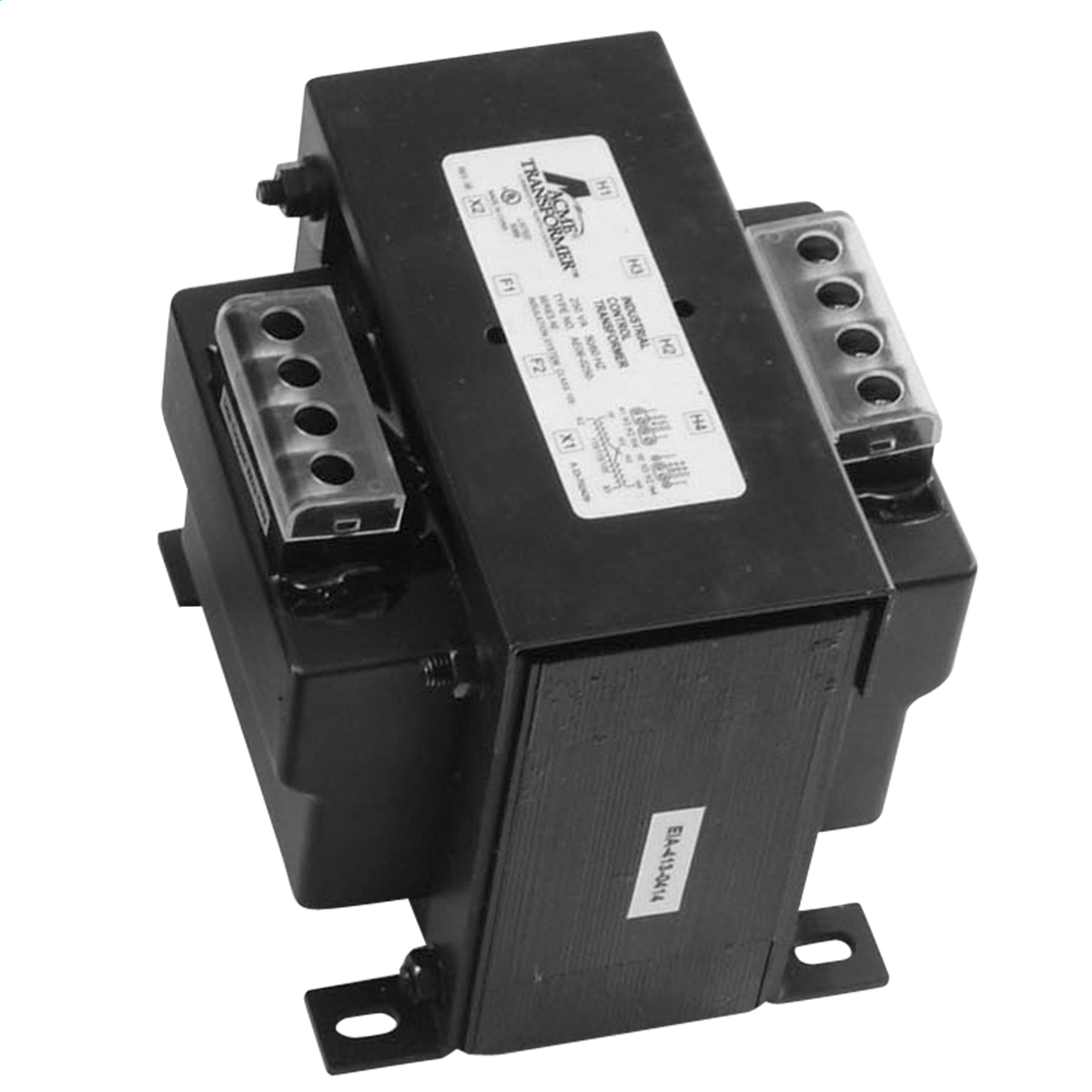

Acme Electric® CE020100 CE Series Industrial Control Transformer, 240/480 VAC Primary, 25/120 VAC Secondary, 100 VA, 50/60 Hz
Control Transformers
1330379
MFG #: CE020100
Acme Electric
42.63000
/ ea
The Acme Electric AE and CE Series Industrial Control Transformers are designed specifically for machine tool control circuit applications. These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage. Designed to meet or exceed the demands of international standards, combined with the full breadth of product offering, the AE and CE Series Transformers from Acme Electric are the ideal solution for your industrial control applications.
- Catalog URL - IDW_DOCUMENT_1480741299932.pdf(Catalog URL)
- Full Eng Drawing URL - IDW_DOCUMENT_1480872556077.pdf(Full Eng Drawing URL)
- Safety Data Sheet URL - HCC_SDS.pdf(Safety Data Sheet URL)
- Seller Home Page URL - en(Seller Home Page URL)
- Spec Sheet URL - ds-679-datasheet(Spec Sheet URL)
- Tech Drawing URL - Acme_CE020100_TECHNICAL_DRAWINGS.dwg(Tech Drawing URL)
- Tech Drawing URL - CE02-0100.pdf(Tech Drawing URL)
- Warranty URL - ID-WAR-v1-Acme_Warranty.pdf(Warranty URL)
- www.hubbell-acmeelectric.com(Seller Home Page URL)
- Applications
- Features
| Open Core & Coil |
| 100 VA |
| Epoxy encapsulated design protects core and coil assembly from potentially damaging contaminants |
| Integrally molded terminal blocks with isolation barriers to prevent arc over, terminal blocks allow full access for ring terminals for easy installation and solid termination |
| Heavy gauge steel mounting feet |
| Available factory or field installed fuse blocks provide integral fusing on the primary or primary and secondary |
| Dual labeling for easy product identification when equipped with a fuse block |
| 0.2 x 0.4 in mounting slot |
| Encapsulated core and coil |
| These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage |
| Transformer enclosure temperature shall not exceed 65 deg C plus the ambient |
| Transformer shall incorporate an electrostatic shield for the attenuation of voltage spikes, line noise and transients |
| Transformer coils are typically wound with aluminum or copper for increased insulation life, cooler operation and lower losses |
| The AE and CE series design improves the dissipation of the heat away from the core and coil assembly providing cooler operation |
| In addition, the AE and CE series industrial control transformers seal the transformer's windings and internal terminations within an epoxy encapsulated encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants |
| 200/220/440, 208/230/460, 240/480 VAC primary volt |
| 23/110, 24/115, 25/120 VAC secondary volt |
| Furthermore, Acme compact design helps minimize the mounting footprint, providing more flexibility in applications where space is a premium |
