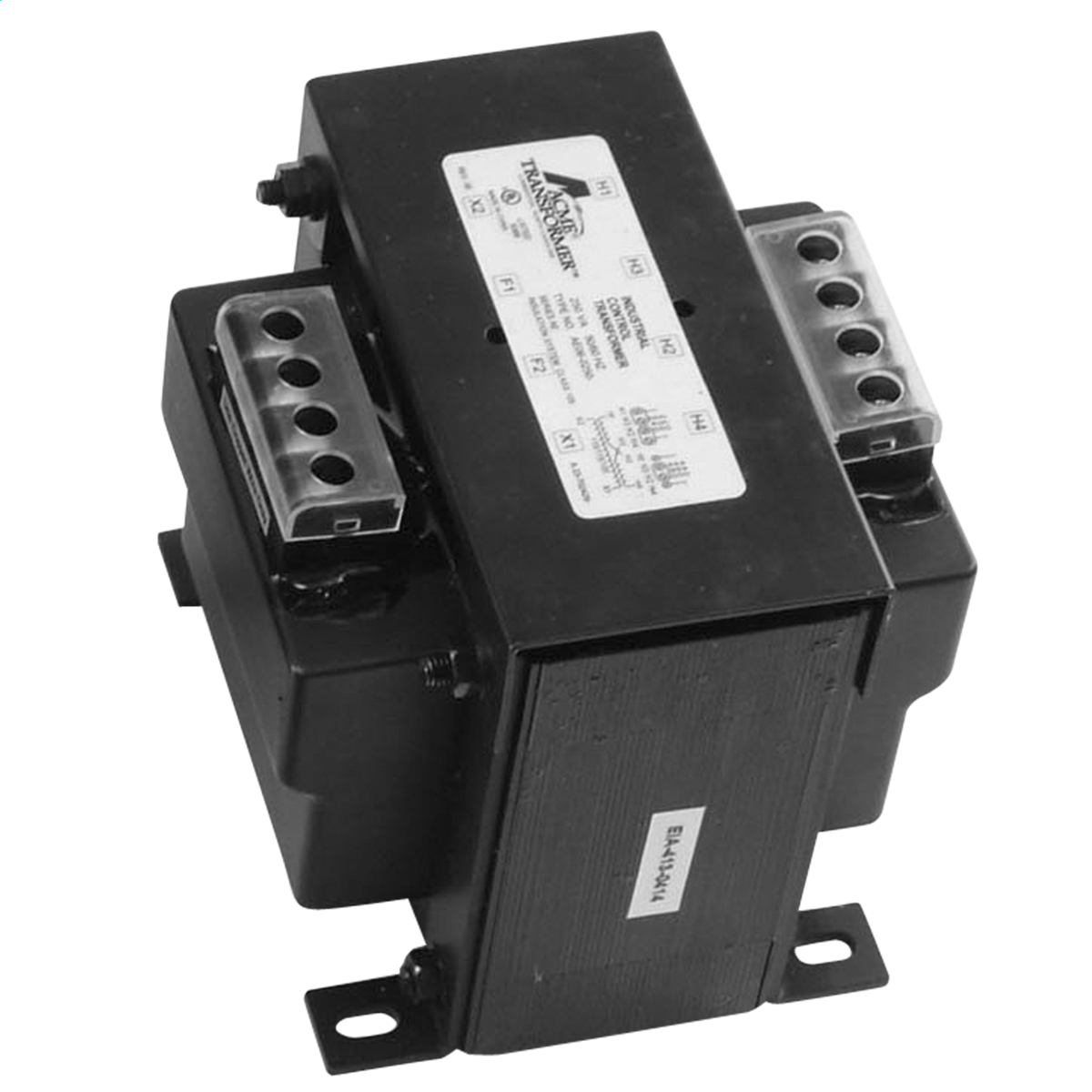

Acme Electric® CE020050 CE Series Industrial Control Transformer, 240/480 VAC Primary, 25/120 VAC Secondary, 50 VA, 50/60 Hz
Custom_Product_Images_Illustration
Acme Electric® CE020050 CE Series Industrial Control Transformer, 240/480 VAC Primary, 25/120 VAC Secondary, 50 VA, 50/60 Hz
SKU1351486
MFGR #CE020050
Your Cost: $33.25/ea
The Acme Electric AE and CE Series Industrial Control Transformers are designed specifically for machine tool control circuit applications. These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage. Designed to meet or exceed the demands of international standards, combined with the full breadth of product offering, the AE and CE Series Transformers from Acme Electric are the ideal solution for your industrial control applications.
The Acme Electric AE and CE Series Industrial Control Transformers are designed specifically for machine tool control circuit applications. These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage. Designed to meet or exceed the demands of international standards, combined with the full breadth of product offering, the AE and CE Series Transformers from Acme Electric are the ideal solution for your industrial control applications.
Application Open Core & Coil ARRA Compliant C Buy American Compliant C Catalog Number CE020050 Connection Type Lead Wire/Screw Country of Origin CN Currency USD Dimensions 3.28 in H x 3.28 in W x 2.81 in D Enclosure Type NEMA 3R EU RoHS Indicator C Gross Weight Per Pack 2.7000 lb Gross Weight per Pack Metric 1.23 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504314065 Height 2.81 in Height [Metric] 7.1374 cm Housing Material Steel Insulation Class A/105 deg C Length 3.28 in Length [Metric] 8.3312 cm Mounting Floor Mounting Type Panel Number Of Phases 1 Returnable N Series CE Series Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506CSA C22.2 File No. 66CE Certified Temperature Rating 55 °C Type Industrial UNSPSC 39121026 UPC 11 04750338018 UPC 12 047503380185 Width 3.28 in Width [Metric] 8.3312 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 50/60 Hz Phase 1 Power Rating 50 VA Primary Voltage 240/480 VAC Secondary Voltage 25/120 VAC Open Core & Coil 50 VA Epoxy encapsulated design protects core and coil assembly from potentially damaging contaminants Integrally molded terminal blocks with isolation barriers to prevent arc over, terminal blocks allow full access for ring terminals for easy installation and solid termination Heavy gauge steel mounting feet Dual labelling for easy product identification when equipped with a fuse block 0.2 x 0.4 in mounting slot Encapsulated core and coil These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage Transformer enclosure temperature shall not exceed 65 deg C plus the ambient Transformer shall incorporate an electrostatic shield for the attenuation of voltage spikes, line noise and transients Transformer coils are typically wound with aluminum or copper for increased insulation life, cooler operation and lower losses The AE and CE series design improves the dissipation of the heat away from the core and coil assembly providing cooler operation In addition, the AE and CE series industrial control transformers seal the transformer windings and internal terminations within an epoxy encapsulated encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants 200/220/440, 208/230/460, 240/480 VAC primary voltage 23/110, 24/115, 25/120 VAC secondary voltage Furthermore, acme compact design helps minimize the mounting footprint, providing more flexibility in applications where space is a premium Furthermore, Acme compact design helps minimize the mounting footprint, providing more flexibility in applications where space is a premium
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Open Core & Coil |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | CE020050 |
| Connection Type | Lead Wire/Screw |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 3.28 in H x 3.28 in W x 2.81 in D |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 2.7000 lb |
| Gross Weight per Pack Metric | 1.23 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504314065 |
| Height | 2.81 in |
| Height [Metric] | 7.1374 cm |
| Housing Material | Steel |
| Insulation | Class A/105 deg C |
| Length | 3.28 in |
| Length [Metric] | 8.3312 cm |
| Mounting | Floor |
| Mounting Type | Panel |
| Number Of Phases | 1 |
| Returnable | N |
| Series | CE Series |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506CSA C22.2 File No. 66CE Certified |
| Temperature Rating | 55 °C |
| Type | Industrial |
| UNSPSC | 39121026 |
| UPC 11 | 04750338018 |
| UPC 12 | 047503380185 |
| Width | 3.28 in |
| Width [Metric] | 8.3312 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 1 |
| Power Rating | 50 VA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 25/120 VAC |
| Open Core & Coil |
| 50 VA |
| Epoxy encapsulated design protects core and coil assembly from potentially damaging contaminants |
| Integrally molded terminal blocks with isolation barriers to prevent arc over, terminal blocks allow full access for ring terminals for easy installation and solid termination |
| Heavy gauge steel mounting feet |
| Dual labelling for easy product identification when equipped with a fuse block |
| 0.2 x 0.4 in mounting slot |
| Encapsulated core and coil |
| These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage |
| Transformer enclosure temperature shall not exceed 65 deg C plus the ambient |
| Transformer shall incorporate an electrostatic shield for the attenuation of voltage spikes, line noise and transients |
| Transformer coils are typically wound with aluminum or copper for increased insulation life, cooler operation and lower losses |
| The AE and CE series design improves the dissipation of the heat away from the core and coil assembly providing cooler operation |
| In addition, the AE and CE series industrial control transformers seal the transformer windings and internal terminations within an epoxy encapsulated encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants |
| 200/220/440, 208/230/460, 240/480 VAC primary voltage |
| 23/110, 24/115, 25/120 VAC secondary voltage |
| Furthermore, acme compact design helps minimize the mounting footprint, providing more flexibility in applications where space is a premium |
| Furthermore, Acme compact design helps minimize the mounting footprint, providing more flexibility in applications where space is a premium |
