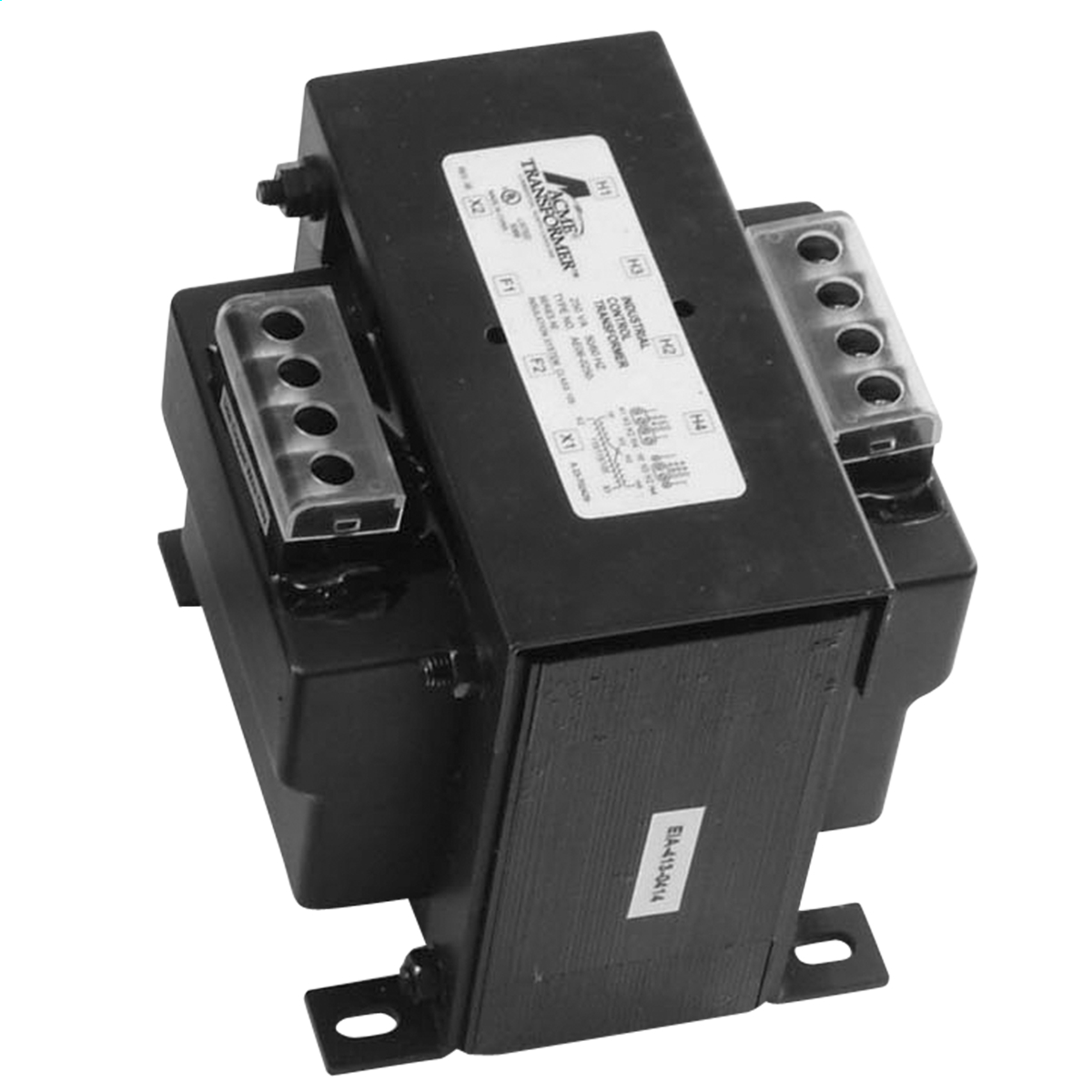

Acme Electric® AE120100 AE Series Industrial Control Transformer, 230/460/575 VAC Primary, 95/115 VAC Secondary, 100 VA, 50/60 Hz
Custom_Product_Images_Illustration
Acme Electric
Acme Electric® AE120100 AE Series Industrial Control Transformer, 230/460/575 VAC Primary, 95/115 VAC Secondary, 100 VA, 50/60 Hz
SKU564340
MFGR #AE120100
Your Cost: $35.96/ea
The Acme Electric AE and CE Series Industrial Control Transformers are designed specifically for machine tool control circuit applications. These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage. Designed to meet or exceed the demands of international standards, combined with the full breadth of product offering, the AE and CE Series Transformers from Acme Electric are the ideal solution for your industrial control applications.
The Acme Electric AE and CE Series Industrial Control Transformers are designed specifically for machine tool control circuit applications. These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage. Designed to meet or exceed the demands of international standards, combined with the full breadth of product offering, the AE and CE Series Transformers from Acme Electric are the ideal solution for your industrial control applications.
Application Open Core & Coil ARRA Compliant C Buy American Compliant C Catalog Number AE120100 Connection Type Lead Wire/Screw Country of Origin CN Currency USD Dimensions 3.59 in H x 3.41 in W x 3.09 in D Enclosure Type NEMA 3R Gross Weight Per Pack 4.2000 lb Gross Weight per Pack Metric 1.90 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504314065 Height 3.09 in Height [Metric] 7.8486 cm Housing Material Steel Insulation Class A/105 deg C Length 3.59 in Length [Metric] 9.1186 cm Mounting Floor Mounting Type Panel Number Of Phases 1 Returnable N Series AE Series Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedcUL ListedCE Certified Temperature Rating 55 °C Type Industrial UNSPSC 39121026 UPC 11 04750369687 UPC 12 047503696873 Width 3.41 in Width [Metric] 8.6614 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 50/60 Hz Phase 1 Power Rating 100 VA Primary Voltage 230/460/575 VAC Secondary Voltage 95/115 VAC Open Core & Coil 100 Dual labelling for easy product identification when equipped with a fuse block 0.2 x 0.4 in mounting slot Encapsulated core and coil These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage Transformer enclosure temperature shall not exceed 65 deg C plus the ambient Transformer shall incorporate an electrostatic shield for the attenuation of voltage spikes, line noise and transients Transformer coils are typically wound with aluminum or copper for increased insulation life, cooler operation and lower losses The AE and CE series design improves the dissipation of the heat away from the core and coil assembly providing cooler operation In addition, the AE and CE series industrial control transformers seal the transformer windings and internal terminations within an epoxy encapsulated encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants Furthermore, acme compact design helps minimize the mounting footprint, providing more flexibility in applications where space is a premium Without sacrificing the required stable output voltage, designed to meet or exceed the demands of international standards combined with the full breadth of product offering
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Open Core & Coil |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | AE120100 |
| Connection Type | Lead Wire/Screw |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 3.59 in H x 3.41 in W x 3.09 in D |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 4.2000 lb |
| Gross Weight per Pack Metric | 1.90 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504314065 |
| Height | 3.09 in |
| Height [Metric] | 7.8486 cm |
| Housing Material | Steel |
| Insulation | Class A/105 deg C |
| Length | 3.59 in |
| Length [Metric] | 9.1186 cm |
| Mounting | Floor |
| Mounting Type | Panel |
| Number Of Phases | 1 |
| Returnable | N |
| Series | AE Series |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedcUL ListedCE Certified |
| Temperature Rating | 55 °C |
| Type | Industrial |
| UNSPSC | 39121026 |
| UPC 11 | 04750369687 |
| UPC 12 | 047503696873 |
| Width | 3.41 in |
| Width [Metric] | 8.6614 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 50/60 Hz |
| Phase | 1 |
| Power Rating | 100 VA |
| Primary Voltage | 230/460/575 VAC |
| Secondary Voltage | 95/115 VAC |
| Open Core & Coil |
| 100 |
| Dual labelling for easy product identification when equipped with a fuse block |
| 0.2 x 0.4 in mounting slot |
| Encapsulated core and coil |
| These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage |
| Transformer enclosure temperature shall not exceed 65 deg C plus the ambient |
| Transformer shall incorporate an electrostatic shield for the attenuation of voltage spikes, line noise and transients |
| Transformer coils are typically wound with aluminum or copper for increased insulation life, cooler operation and lower losses |
| The AE and CE series design improves the dissipation of the heat away from the core and coil assembly providing cooler operation |
| In addition, the AE and CE series industrial control transformers seal the transformer windings and internal terminations within an epoxy encapsulated encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants |
| Furthermore, acme compact design helps minimize the mounting footprint, providing more flexibility in applications where space is a premium |
| Without sacrificing the required stable output voltage, designed to meet or exceed the demands of international standards combined with the full breadth of product offering |
