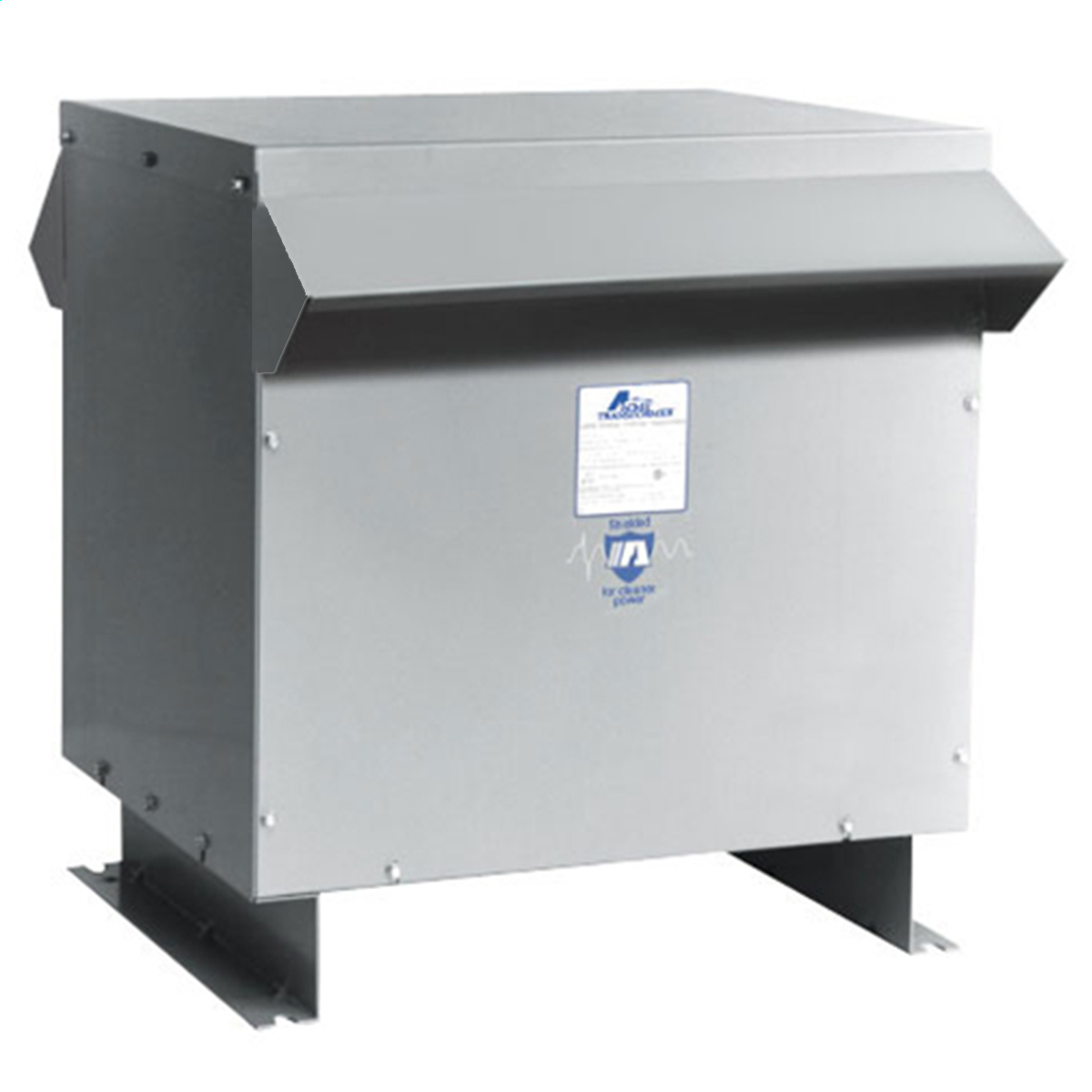

ACME T3045K0044B TFMR 3PH 45KVA 240
SKU939797
MFGR #T3045K0044B
Your Cost: $4,380.84/ea
Industrical Control Transformer, 3PH 45KVA 240-208Y-120 provides a low and safe control voltage for the operation of electromagnetic devices, such as motor starters, contactors, solenoids, timers or other loads requiring above average voltage regulation when actuated.
Industrical Control Transformer, 3PH 45KVA 240-208Y-120 provides a low and safe control voltage for the operation of electromagnetic devices, such as motor starters, contactors, solenoids, timers or other loads requiring above average voltage regulation when actuated.
Application Dry Type Distribution Transformer ARRA Compliant C Buy American Compliant C Catalog Number T3045K0044B Connection Type Lug Terminal Cooling Ventilated Country of Origin MX Currency USD Dimensions 25.5 in H x 24.39 in W x 19.37 in D Efficiency 98.40 Enclosure NEMA 3R Enclosure Type NEMA 3R Gross Weight Per Pack 441.0000 lb Gross Weight per Pack Metric 195.05 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330020 Height 25.50 in Height [Metric] 64.7700 cm Housing Material Steel KVA Rating 45 Length 19.37 in Length [Metric] 49.1998 cm Mounting Floor Mounting Type Floor Returnable Y Standard UL 1561, UL File Number E12547, UL Control Number 542B, UL Insulation Number C3222, CSA Certified, OSHA Compliant, ANSI, IEEE Standards CSA CertifiedUL 1561UL File No. E12547C22.2 No. 47LR7357-32U.S. DOE 10 CFR Part 431PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Temperature Rating 150 °C Type Ventilated UNSPSC 39121001 UPC 11 04750309305 UPC 12 047503093054 Width 24.39 in Width [Metric] 61.9506 cm Winding Aluminum Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 3 Power Rating 45 kVA Primary Voltage 240 Delta VAC Secondary Voltage 208Y/120 VAC Dry Type Distribution Transformer Meet DOE 2016 efficiency requirements Quite operation with sound levels below NEMA standards Ventilated - Constructed to provide for circulation of external air through the enclosure to remove excess heat, fumes or vapors Type 3R Enclosures - Intended for outdoor use, primarily to provide a degree of protection against falling rain, sleet and external ice formation
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Dry Type Distribution Transformer |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | T3045K0044B |
| Connection Type | Lug Terminal |
| Cooling | Ventilated |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 25.5 in H x 24.39 in W x 19.37 in D |
| Efficiency | 98.40 |
| Enclosure | NEMA 3R |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 441.0000 lb |
| Gross Weight per Pack Metric | 195.05 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330020 |
| Height | 25.50 in |
| Height [Metric] | 64.7700 cm |
| Housing Material | Steel |
| KVA Rating | 45 |
| Length | 19.37 in |
| Length [Metric] | 49.1998 cm |
| Mounting | Floor |
| Mounting Type | Floor |
| Returnable | Y |
| Standard | UL 1561, UL File Number E12547, UL Control Number 542B, UL Insulation Number C3222, CSA Certified, OSHA Compliant, ANSI, IEEE |
| Standards | CSA CertifiedUL 1561UL File No. E12547C22.2 No. 47LR7357-32U.S. DOE 10 CFR Part 431PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Temperature Rating | 150 °C |
| Type | Ventilated |
| UNSPSC | 39121001 |
| UPC 11 | 04750309305 |
| UPC 12 | 047503093054 |
| Width | 24.39 in |
| Width [Metric] | 61.9506 cm |
| Winding | Aluminum |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Power Rating | 45 kVA |
| Primary Voltage | 240 Delta VAC |
| Secondary Voltage | 208Y/120 VAC |
| Dry Type Distribution Transformer |
| Meet DOE 2016 efficiency requirements |
| Quite operation with sound levels below NEMA standards |
| Ventilated - Constructed to provide for circulation of external air through the enclosure to remove excess heat, fumes or vapors |
| Type 3R Enclosures - Intended for outdoor use, primarily to provide a degree of protection against falling rain, sleet and external ice formation |
