O-Z/Gedney

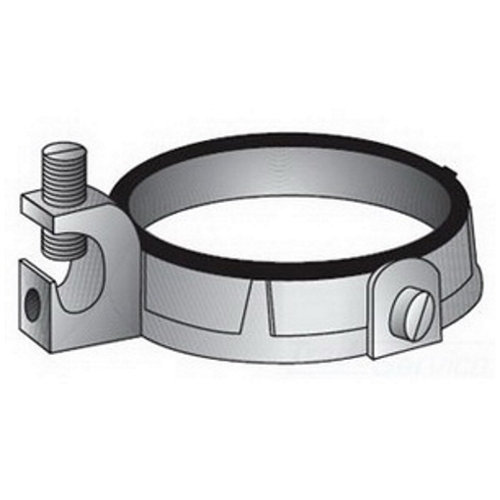

5 IN GNDG INSUL BSHG W/LUG
O-Z/Gedney
5 IN GNDG INSUL BSHG W/LUG
SKU441544
MFGR #IBC500LS25AC
Your Cost: $105.22/ea
List: Rigid/IMC Grounding Bushing, Type Threadless, Set Screw, Trade Size 5 Inch, Wire Size 6 AWG to 250 KCMIL, Lug Type Lay In, Tin Plated Aluminum, Conductor Material Copper/Aluminum, Throat Type Insulated, Diameter 6-1/16 Inch, Height 1-1/4 Inch, Material Zinc Plated Malleable Iron Body, Zinc Plated Steel Set Screw, Zinc Plated Steel Clamping Screw, Approval UL 467, CSA C22.2, Used On Rigid Conduit/IMC, Applicable Standard NEMA FB-1, Temperature Rating 150 Deg C
Rigid/IMC Grounding Bushing, Type Threadless, Set Screw, Trade Size 5 Inch, Wire Size 6 AWG to 250 KCMIL, Lug Type Lay In, Tin Plated Aluminum, Conductor Material Copper/Aluminum, Throat Type Insulated, Diameter 6-1/16 Inch, Height 1-1/4 Inch, Material Zinc Plated Malleable Iron Body, Zinc Plated Steel Set Screw, Zinc Plated Steel Clamping Screw, Approval UL 467, CSA C22.2, Used On Rigid Conduit/IMC, Applicable Standard NEMA FB-1, Temperature Rating 150 Deg C
ARRA Compliant C Buy American Compliant N Catalog Number IBC500LS25AC Country of Origin MX Currency USD EU RoHS Indicator N Finish Zinc Plated Gross Weight Per Pack 1.4500 lb Gross Weight per Pack Metric 0.66 Gross Weight UOM Metric kg Height 1.74 in Height [Metric] 4.4196 cm Length 8.20 in Length [Metric] 20.8280 cm Lug Type Tin Coated Aluminum Lay-In Series IBC-LS-AC Standards ARRA CompliantCEC CertifiedCSA 009795/C22.2 No. 41Federal Specification W-F-408ENEC CertifiedNEMA FB-1UL 467/E-24264 Throat Insulated Turning Radius 4-5/16 in Type Threadless UNSPSC 39121312 UPC 11 78312606194 UPC 12 783126061949 Width 6.60 in Width [Metric] 16.7640 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney Diameter 6-1/16 in Material Malleable Iron Maximum Wire Size 250 kcmil Stranded Minimum Wire Size 6 AWG Stranded Trade Size 5 in Aluminum Lay-In-Lug™ for copper/aluminum conductors Temperature rating 302 deg F Insulating liner material is self-extinguishing The plastic liner is tough It won't chip, crack, swell or shrink It resists corrosion, chemicals and temperature extremes Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation Lugs not sold separately Set screw provided with each fitting locks bushing in any desired position
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | N |
| Catalog Number | IBC500LS25AC |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | N |
| Finish | Zinc Plated |
| Gross Weight Per Pack | 1.4500 lb |
| Gross Weight per Pack Metric | 0.66 |
| Gross Weight UOM Metric | kg |
| Height | 1.74 in |
| Height [Metric] | 4.4196 cm |
| Length | 8.20 in |
| Length [Metric] | 20.8280 cm |
| Lug Type | Tin Coated Aluminum Lay-In |
| Series | IBC-LS-AC |
| Standards | ARRA CompliantCEC CertifiedCSA 009795/C22.2 No. 41Federal Specification W-F-408ENEC CertifiedNEMA FB-1UL 467/E-24264 |
| Throat | Insulated |
| Turning Radius | 4-5/16 in |
| Type | Threadless |
| UNSPSC | 39121312 |
| UPC 11 | 78312606194 |
| UPC 12 | 783126061949 |
| Width | 6.60 in |
| Width [Metric] | 16.7640 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| Diameter | 6-1/16 in |
| Material | Malleable Iron |
| Maximum Wire Size | 250 kcmil Stranded |
| Minimum Wire Size | 6 AWG Stranded |
| Trade Size | 5 in |
| Aluminum Lay-In-Lug™ for copper/aluminum conductors |
| Temperature rating 302 deg F |
| Insulating liner material is self-extinguishing |
| The plastic liner is tough |
| It won't chip, crack, swell or shrink |
| It resists corrosion, chemicals and temperature extremes |
| Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation |
| Lugs not sold separately |
| Set screw provided with each fitting locks bushing in any desired position |
