Appleton™

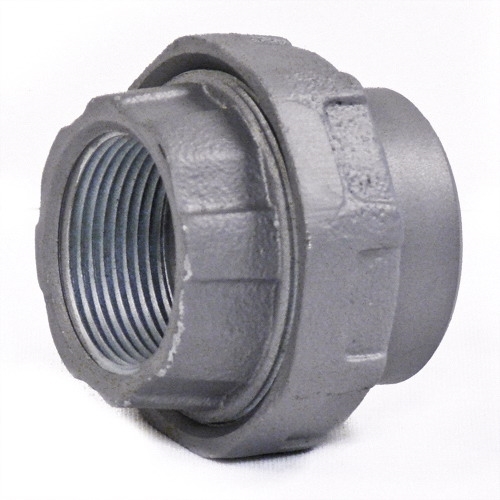

4 UNION CONNECTOR
Custom_Product_Images_Illustration
Appleton™
4 UNION CONNECTOR
SKU85033
MFGR #UNF400R
Your Cost: $362.29/ea
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality components you need.
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality components you need.
Application For Connecting Conduit To Conduit ARRA Compliant N Buy American Compliant N Catalog Number UNF400R Connection Female Threaded Country of Origin MX Currency USD Dimensions 6.44 in OD x 3-1/2 in L EU RoHS Indicator N Flexibility Rigid And IMC Gross Weight Per Pack 9.7400 lb Gross Weight per Pack Metric 4.42 Gross Weight UOM Metric kg Height 3.50 in Height [Metric] 8.8900 cm Length 9.40 in Length [Metric] 23.8760 cm Outside Diameter 6.44 in Series UNF Standard UL 886 (1203), UL File Number E10444, UL Listed for Class I, Groups B, C, d; Class II, Groups E, F, G; and Class II, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified Standards UL 886UL 1203UL File No. E10444Class I, Div 1 and 2 Groups A, B, C, D, Class II, Div 1 and 2 Groups E, F, G, Class IIICSA C22.2 No. 25/30CSA 065181 Sub Brand UNILETS Suitable For Use With IMC/Threaded Rigid Metallic Conduit Trade Size 4 in Type Dust-Ignitionproof Explosionproof UNSPSC 39131707 UPC 11 78138169495 UPC 12 781381694957 Width 6.60 in Width [Metric] 16.7640 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Triple Coated Material Malleable Iron Size 4 in For Connecting Conduit To Conduit Smooth, rounded integral bushing in each hub to protect conductor insulation Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces; UNF unions are used for joining conduit and connecting conduit to enclosures, Facilitates modifications, permits removal of enclosures without turning or removal of conduit Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces Facilitates modifications, permits removal of enclosures without turning or removal of conduit Female threaded coneection Chromate/epoxy powder coated/zinc electroplated finish Triple-coated (Zinc electroplated/chromate/epoxy powder coated) Expansion unions are a one-piece design that eliminates the need for disassembly during installation The telescoping cylinder within cylinder design permits expansion or contraction The small external diameter of the expansion unions makes them ideal for use in restricted areas, such as the wiring of pumps, motors, and other equipment The internal phosphor bronze "bonding jumper" ring assures positive ground between telescoping cylinders
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Connecting Conduit To Conduit |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | UNF400R |
| Connection | Female Threaded |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.44 in OD x 3-1/2 in L |
| EU RoHS Indicator | N |
| Flexibility | Rigid And IMC |
| Gross Weight Per Pack | 9.7400 lb |
| Gross Weight per Pack Metric | 4.42 |
| Gross Weight UOM Metric | kg |
| Height | 3.50 in |
| Height [Metric] | 8.8900 cm |
| Length | 9.40 in |
| Length [Metric] | 23.8760 cm |
| Outside Diameter | 6.44 in |
| Series | UNF |
| Standard | UL 886 (1203), UL File Number E10444, UL Listed for Class I, Groups B, C, d; Class II, Groups E, F, G; and Class II, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified |
| Standards | UL 886UL 1203UL File No. E10444Class I, Div 1 and 2 Groups A, B, C, D, Class II, Div 1 and 2 Groups E, F, G, Class IIICSA C22.2 No. 25/30CSA 065181 |
| Sub Brand | UNILETS |
| Suitable For Use With | IMC/Threaded Rigid Metallic Conduit |
| Trade Size | 4 in |
| Type | Dust-Ignitionproof Explosionproof |
| UNSPSC | 39131707 |
| UPC 11 | 78138169495 |
| UPC 12 | 781381694957 |
| Width | 6.60 in |
| Width [Metric] | 16.7640 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Triple Coated |
| Material | Malleable Iron |
| Size | 4 in |
| For Connecting Conduit To Conduit |
| Smooth, rounded integral bushing in each hub to protect conductor insulation |
| Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity |
| Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces; UNF unions are used for joining conduit and connecting conduit to enclosures, Facilitates modifications, permits removal of enclosures without turning or removal of conduit |
| Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces |
| Facilitates modifications, permits removal of enclosures without turning or removal of conduit |
| Female threaded coneection |
| Chromate/epoxy powder coated/zinc electroplated finish |
| Triple-coated (Zinc electroplated/chromate/epoxy powder coated) |
| Expansion unions are a one-piece design that eliminates the need for disassembly during installation |
| The telescoping cylinder within cylinder design permits expansion or contraction |
| The small external diameter of the expansion unions makes them ideal for use in restricted areas, such as the wiring of pumps, motors, and other equipment |
| The internal phosphor bronze "bonding jumper" ring assures positive ground between telescoping cylinders |
