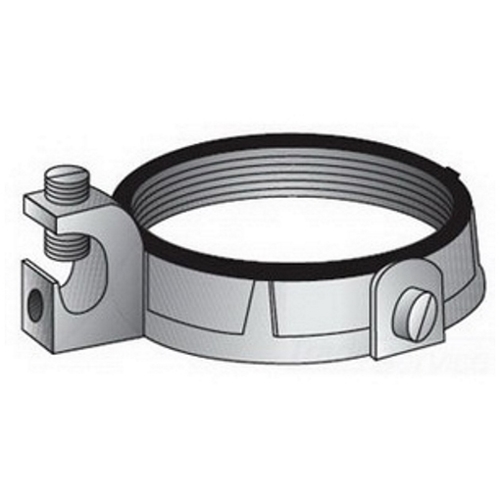

4 IN GNDG INSUL BSHG W/LUG
SKU338003
MFGR #IBC400L25AC
Your Cost: $50.46/ea
List: O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
Application For Rigid Conduit And IMC ARRA Compliant Y Buy American Compliant N Catalog Number IBC400L25AC Connection Threaded Country of Origin MX Currency USD EU RoHS Indicator N Gross Weight Per Pack 1.1300 lb Gross Weight per Pack Metric 0.50 Gross Weight UOM Metric kg Height 2.00 in Height [Metric] 5.0800 cm Length 6.80 in Length [Metric] 17.2720 cm Size 4 in Standard Third Party Certification: UL File Number E-24264, CSA 009795, Applicable Third Party Standards: UL 467, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1 Standards UL 467, CSA 22.2 Temperature Rating 150 °C Type Type IBC-L-AC Insulated Grounding Bushing With Lug UNSPSC 39121312 UPC 11 78312630348 UPC 12 783126303483 Width 5.20 in Width [Metric] 13.2080 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney Finish Zinc Plated Material Malleable Iron Body, Aluminum Lug, Steel Clamping Screw And Set Screws For Rigid Conduit And IMC O-Z/Gedney malleable iron bushings incorporate a thermoplastic insulator and an aluminum lay-in lug grounding lug; They are used to protect wires and cables at entry and exit of conduit and to provide for grounding of the conduit; Insulating liner material is UL V-O rated (self extinguishing); The plastic liner is tough, it won’t chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes; Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Set-screw provided with each fitting locks bushing in any desired position; UL listed for use with copper or aluminum grounding conductors; Lugs not sold separately O-Z/Gedney malleable iron bushings incorporate a thermoplastic insulator and an aluminum lay in lug grounding lug Insulating liner material is UL V-O rated (self extinguishing) The plastic liner is tough, it won't chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation Set screw provided with each cutting locks bushing in any desired position UL listed for use with copper or aluminum grounding conductors Lugs not sold separately Aluminum lug, steel clamping screw and set screws Zinc plated clamping screw and set screws, tin plated lug finish
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Rigid Conduit And IMC |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | IBC400L25AC |
| Connection | Threaded |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 1.1300 lb |
| Gross Weight per Pack Metric | 0.50 |
| Gross Weight UOM Metric | kg |
| Height | 2.00 in |
| Height [Metric] | 5.0800 cm |
| Length | 6.80 in |
| Length [Metric] | 17.2720 cm |
| Size | 4 in |
| Standard | Third Party Certification: UL File Number E-24264, CSA 009795, Applicable Third Party Standards: UL 467, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1 |
| Standards | UL 467, CSA 22.2 |
| Temperature Rating | 150 °C |
| Type | Type IBC-L-AC Insulated Grounding Bushing With Lug |
| UNSPSC | 39121312 |
| UPC 11 | 78312630348 |
| UPC 12 | 783126303483 |
| Width | 5.20 in |
| Width [Metric] | 13.2080 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| Finish | Zinc Plated |
| Material | Malleable Iron Body, Aluminum Lug, Steel Clamping Screw And Set Screws |
| For Rigid Conduit And IMC |
| O-Z/Gedney malleable iron bushings incorporate a thermoplastic insulator and an aluminum lay-in lug grounding lug; They are used to protect wires and cables at entry and exit of conduit and to provide for grounding of the conduit; Insulating liner material is UL V-O rated (self extinguishing); The plastic liner is tough, it won’t chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes; Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Set-screw provided with each fitting locks bushing in any desired position; UL listed for use with copper or aluminum grounding conductors; Lugs not sold separately |
| O-Z/Gedney malleable iron bushings incorporate a thermoplastic insulator and an aluminum lay in lug grounding lug |
| Insulating liner material is UL V-O rated (self extinguishing) |
| The plastic liner is tough, it won't chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes |
| Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation |
| Set screw provided with each cutting locks bushing in any desired position |
| UL listed for use with copper or aluminum grounding conductors |
| Lugs not sold separately |
| Aluminum lug, steel clamping screw and set screws |
| Zinc plated clamping screw and set screws, tin plated lug finish |
