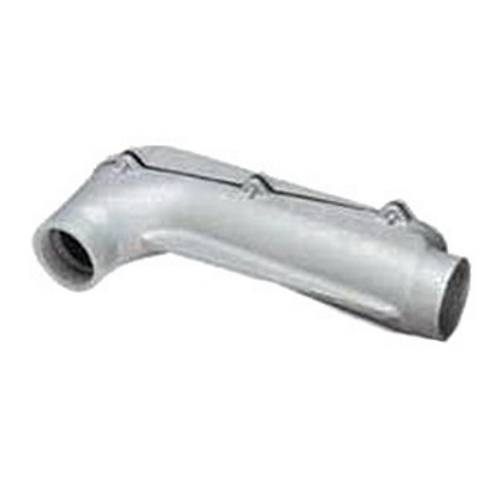

3 MOGUL TYPE LB
SKU276928
MFGR #LB6X300M
Your Cost: $610.74/ea
List: O-Z/Gedney conduit bodies, covers and gaskets provide access to large and heavy conductors for pulling, splicing, maintenance, and future changes and upgrades. They allow connection of straight conduit runs, branch conduit runs and 90deg bends. Covers and gaskets are included, and replacements are available.
O-Z/Gedney conduit bodies, covers and gaskets provide access to large and heavy conductors for pulling, splicing, maintenance, and future changes and upgrades. They allow connection of straight conduit runs, branch conduit runs and 90deg bends. Covers and gaskets are included, and replacements are available.
Application For Rigid Conduit And IMC ARRA Compliant N Buy American Compliant N Catalog Number LB6X300M Connection Tapered FNPT Connection Type Tapered FNPT Country of Origin MX Currency USD Dimensions 21.06 in L x 5.88 in W x 10 in H Enclosure NEMA FB-1/FB-2.10 EU RoHS Indicator N Gross Weight Per Pack 32.3900 lb Gross Weight per Pack Metric 14.69 Gross Weight UOM Metric kg Height 5.00 in Height [Metric] 12.7000 cm Length 29.00 in Length [Metric] 73.6600 cm Mounting Type Surface Number of Hubs 2 Standard Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10 Standards UL 514A File No. E18095C22.2 No. 18/009795 CertifiedFederal Specification A-A-50563Meets NEC Section 314.28Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B) Type Type LB Mogul Conduit Body UNSPSC 39131708 UPC 11 78312601433 UPC 12 783126014334 Width 17.00 in Width [Metric] 43.1800 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney Capacity 345 in³ Finish Zinc Electroplate/Dichromate/Epoxy Powder Coat Hub Size 3 in Material Malleable Iron For Rigid Conduit And IMC Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Tapered threaded hubs (NPT); Raintight when used with gasketed covers; Smooth integral hub bushings protect conductor insulation; Suitable for wet locations when used with gasketed covers; Supplied completely assembled with cover, gasket and captive stainless steel screws; Meets NEC section 314.28 rule; Neoprene gaskets; Replacement covers and gaskets available; Supplied with built-in cable-pulling rollers Roomy interiors more wiring space Smooth, rounded integral bushing in hubs protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Sizes with flat back design ideal where fitting is mounted flat against surface Smooth integral hub bushings to protect conductor insulation when pulling Threaded NPT tapered hubs for rigid conduit and IMC Smooth integral hub bushings to protect conductor insulation when pulling Back Access opening Hub location 90 deg Stainless steel cover screw Neoprene gaskets Mogul design for large and heavy conductors Serve as pulling fittings Make bends in conduit system Provide openings for splicing Connect and change direction of conduit runs Allow connections for branch runs Permit access to conductors for maintenance Triple Coat (Zinc Electroplated, Dichromate and Epoxy Powder Coated)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Rigid Conduit And IMC |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LB6X300M |
| Connection | Tapered FNPT |
| Connection Type | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 21.06 in L x 5.88 in W x 10 in H |
| Enclosure | NEMA FB-1/FB-2.10 |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 32.3900 lb |
| Gross Weight per Pack Metric | 14.69 |
| Gross Weight UOM Metric | kg |
| Height | 5.00 in |
| Height [Metric] | 12.7000 cm |
| Length | 29.00 in |
| Length [Metric] | 73.6600 cm |
| Mounting Type | Surface |
| Number of Hubs | 2 |
| Standard | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10 |
| Standards | UL 514A File No. E18095C22.2 No. 18/009795 CertifiedFederal Specification A-A-50563Meets NEC Section 314.28Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B) |
| Type | Type LB Mogul Conduit Body |
| UNSPSC | 39131708 |
| UPC 11 | 78312601433 |
| UPC 12 | 783126014334 |
| Width | 17.00 in |
| Width [Metric] | 43.1800 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| Capacity | 345 in³ |
| Finish | Zinc Electroplate/Dichromate/Epoxy Powder Coat |
| Hub Size | 3 in |
| Material | Malleable Iron |
| For Rigid Conduit And IMC |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Tapered threaded hubs (NPT); Raintight when used with gasketed covers; Smooth integral hub bushings protect conductor insulation; Suitable for wet locations when used with gasketed covers; Supplied completely assembled with cover, gasket and captive stainless steel screws; Meets NEC section 314.28 rule; Neoprene gaskets; Replacement covers and gaskets available; Supplied with built-in cable-pulling rollers |
| Roomy interiors more wiring space |
| Smooth, rounded integral bushing in hubs protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Sizes with flat back design ideal where fitting is mounted flat against surface |
| Smooth integral hub bushings to protect conductor insulation when pulling |
| Threaded NPT tapered hubs for rigid conduit and IMC |
| Smooth integral hub bushings to protect conductor insulation when pulling |
| Back Access opening |
| Hub location 90 deg |
| Stainless steel cover screw |
| Neoprene gaskets |
| Mogul design for large and heavy conductors |
| Serve as pulling fittings |
| Make bends in conduit system |
| Provide openings for splicing |
| Connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Triple Coat (Zinc Electroplated, Dichromate and Epoxy Powder Coated) |
