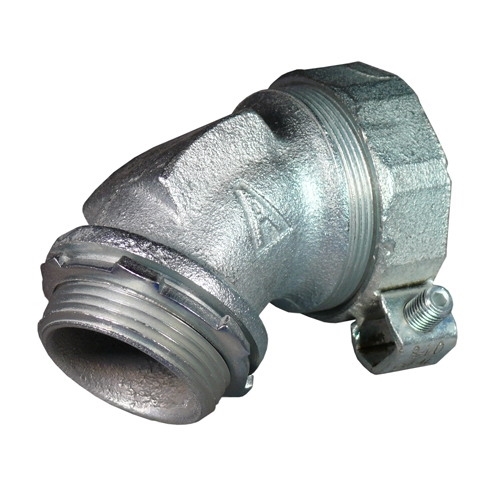

3 IN 45DEG LFMC CONN W/LUG
SKU377191
MFGR #ST45300L
Your Cost: $711.29/ea
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
Application For Liquidtight Flexible Metal Conduit ARRA Compliant C Buy American Compliant N Catalog Number ST45300L Conductor Range 1 - 4/0 AWG Connection Threaded X Compression Country of Origin MX Currency USD Dimensions 4.38 in W EU RoHS Indicator N Gross Weight Per Pack 8.1000 lb Gross Weight per Pack Metric 3.67 Gross Weight UOM Metric kg Height 10.80 in Height [Metric] 27.4320 cm Length 4.60 in Length [Metric] 11.6840 cm Series ST Series Size 3 IN in Standard Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1 Standards ARRA CompliantUL 467UL File No. E6581CSA C22.2 No. 18.3CSA 065178Class I, Div 2 Suitable For Use With Liquidtight Flexible Metallic Conduit Type Liquidtight Oiltight Raintight UNSPSC 39121420 UPC 11 78138140336 UPC 12 781381403368 Width 4.30 in Width [Metric] 10.9220 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Angle 45 ° Cable Openings 1 to 4/0 AWG Finish Epoxy Powder Coated Material Malleable Iron Trade Size 3 in For Liquidtight Flexible Metal Conduit Includes plain throat, external grounding lug; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection; Suitable for outdoor use; Full, machined tapered threads (NPT) Unique long ferrule with more pronounced threads provides over four times UL pull out requirements Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection Full, machined tapered threads (NPT) Chromate/epoxy powder coated/zinc electroplated finish Threaded x compression connection 1.19 in L thread Malleable iron with aluminum ferrule For use with liquidtight flexible metal conduit where an external, visible equipment bonding jumper is desired
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Liquidtight Flexible Metal Conduit |
| ARRA Compliant | C |
| Buy American Compliant | N |
| Catalog Number | ST45300L |
| Conductor Range | 1 - 4/0 AWG |
| Connection | Threaded X Compression |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.38 in W |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 8.1000 lb |
| Gross Weight per Pack Metric | 3.67 |
| Gross Weight UOM Metric | kg |
| Height | 10.80 in |
| Height [Metric] | 27.4320 cm |
| Length | 4.60 in |
| Length [Metric] | 11.6840 cm |
| Series | ST Series |
| Size | 3 IN in |
| Standard | Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1 |
| Standards | ARRA CompliantUL 467UL File No. E6581CSA C22.2 No. 18.3CSA 065178Class I, Div 2 |
| Suitable For Use With | Liquidtight Flexible Metallic Conduit |
| Type | Liquidtight Oiltight Raintight |
| UNSPSC | 39121420 |
| UPC 11 | 78138140336 |
| UPC 12 | 781381403368 |
| Width | 4.30 in |
| Width [Metric] | 10.9220 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Angle | 45 ° |
| Cable Openings | 1 to 4/0 AWG |
| Finish | Epoxy Powder Coated |
| Material | Malleable Iron |
| Trade Size | 3 in |
| For Liquidtight Flexible Metal Conduit |
| Includes plain throat, external grounding lug; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection; Suitable for outdoor use; Full, machined tapered threads (NPT) |
| Unique long ferrule with more pronounced threads provides over four times UL pull out requirements |
| Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground |
| Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection |
| Full, machined tapered threads (NPT) |
| Chromate/epoxy powder coated/zinc electroplated finish |
| Threaded x compression connection |
| 1.19 in L thread |
| Malleable iron with aluminum ferrule |
| For use with liquidtight flexible metal conduit where an external, visible equipment bonding jumper is desired |
