O-Z/Gedney

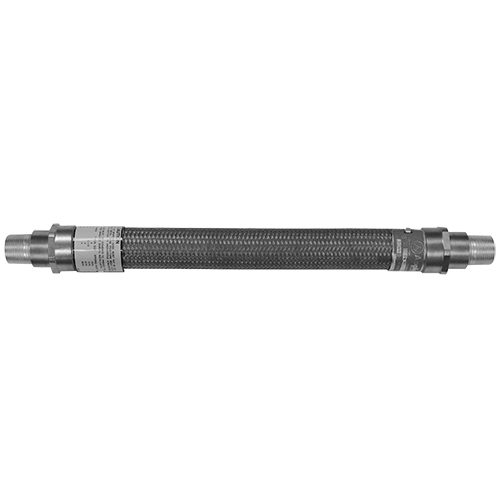

3/4 X 12 IN FLEX CPLG
O-Z/Gedney
3/4 X 12 IN FLEX CPLG
SKU806337
MFGR #ECGJH7512
Your Cost: $368.03/ea
OZ-Gedney Type ECGJH Flexible Coupling, Trade Size: 3/4 IN, 1-3/4 IN Outside Diameter, Length: Flexible Length: 12 IN, Radius: Minimum Bending Radius: 12 IN, Brass Tube, Bronze Outer Braid With Insulating Liner, Connection: Male Nipple, Third
OZ-Gedney Type ECGJH Flexible Coupling, Trade Size: 3/4 IN, 1-3/4 IN Outside Diameter, Length: Flexible Length: 12 IN, Radius: Minimum Bending Radius: 12 IN, Brass Tube, Bronze Outer Braid With Insulating Liner, Connection: Male Nipple, Third
Application For Conduit ARRA Compliant N Buy American Compliant N Catalog Number ECGJH7512 Connection Male Nipple Country of Origin MX Currency USD Dimensions 1-3/4 in OD x 12 in L EU RoHS Indicator N Gross Weight Per Pack 2.3200 lb Gross Weight per Pack Metric 1.05 Gross Weight UOM Metric kg Height 3.00 in Height [Metric] 7.6200 cm Length 17.90 in Length [Metric] 45.4660 cm Outside Diameter 1.75 in Radius Minimum Bending Radius: 12 IN in Series ECGJH Standards UL 886 File No. E34997CSA C22.2 No. 30CSA 009795NEC 500-503/505, Class I Division 1/2 Group A/B/C/D, Class I Zone 1/2 Group IIA, IIB, IIC, Class II Division 1/2 Group E/F/G, Class III Trade Size 0.75 in Type Type ECGJH Flexible Coupling UNSPSC 39131707 UPC 11 78312611659 UPC 12 783126116595 Width 3.00 in Width [Metric] 7.6200 cm Stock Status NONSTOCK Brand O-Z/Gedney Manufacturer O-Z/Gedney Finish Natural Material Brass Tube, Bronze Outer Braid With Insulating Liner Size 3/4 in Suitable For Use With IMC/Threaded Rigid Metallic Conduit For Conduit Used in hazardous locations to isolate conduit systems from vibration and/or movement or to make difficult bends; Suitable for ground path; Maximum temperature rating: 149 DEG C; Supplied with two removable close nipples threaded into female end fittings for male or female thread applications; Suitable for wet locations Smooth, rounded integral bushing in each hub to protect conductor insulation Accurately tapped, tapered threads for tight, rigid joints and ground continuity Heavy duty design resists mechanical abuse Electrical conductivity equal to rigid conduit on a similar length basis no bonding jumper required Interior insulating liner protects conductors from abrasion under vibrating conditions Both end fittings are female, each furnished with a removable male nipple Suitable for ground path 149 deg C maximum temperature rating Supplied with two removable close nipples threaded into female end fittings for male or female thread applications
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Conduit |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ECGJH7512 |
| Connection | Male Nipple |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1-3/4 in OD x 12 in L |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 2.3200 lb |
| Gross Weight per Pack Metric | 1.05 |
| Gross Weight UOM Metric | kg |
| Height | 3.00 in |
| Height [Metric] | 7.6200 cm |
| Length | 17.90 in |
| Length [Metric] | 45.4660 cm |
| Outside Diameter | 1.75 in |
| Radius | Minimum Bending Radius: 12 IN in |
| Series | ECGJH |
| Standards | UL 886 File No. E34997CSA C22.2 No. 30CSA 009795NEC 500-503/505, Class I Division 1/2 Group A/B/C/D, Class I Zone 1/2 Group IIA, IIB, IIC, Class II Division 1/2 Group E/F/G, Class III |
| Trade Size | 0.75 in |
| Type | Type ECGJH Flexible Coupling |
| UNSPSC | 39131707 |
| UPC 11 | 78312611659 |
| UPC 12 | 783126116595 |
| Width | 3.00 in |
| Width [Metric] | 7.6200 cm |
| Stock Status | NONSTOCK |
| Brand | O-Z/Gedney |
| Manufacturer | O-Z/Gedney |
| Finish | Natural |
| Material | Brass Tube, Bronze Outer Braid With Insulating Liner |
| Size | 3/4 in |
| Suitable For Use With | IMC/Threaded Rigid Metallic Conduit |
| For Conduit |
| Used in hazardous locations to isolate conduit systems from vibration and/or movement or to make difficult bends; Suitable for ground path; Maximum temperature rating: 149 DEG C; Supplied with two removable close nipples threaded into female end fittings for male or female thread applications; Suitable for wet locations |
| Smooth, rounded integral bushing in each hub to protect conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
| Heavy duty design resists mechanical abuse |
| Electrical conductivity equal to rigid conduit on a similar length basis no bonding jumper required |
| Interior insulating liner protects conductors from abrasion under vibrating conditions |
| Both end fittings are female, each furnished with a removable male nipple |
| Suitable for ground path |
| 149 deg C maximum temperature rating |
| Supplied with two removable close nipples threaded into female end fittings for male or female thread applications |
