Appleton™
200 AMP PLUG ASSEM 4P S2 2.500
Custom_Product_Images_Illustration
Appleton™
200 AMP PLUG ASSEM 4P S2 2.500
SKU276226
MFGR #AP20034E
Your Cost: $1,185.20/ea

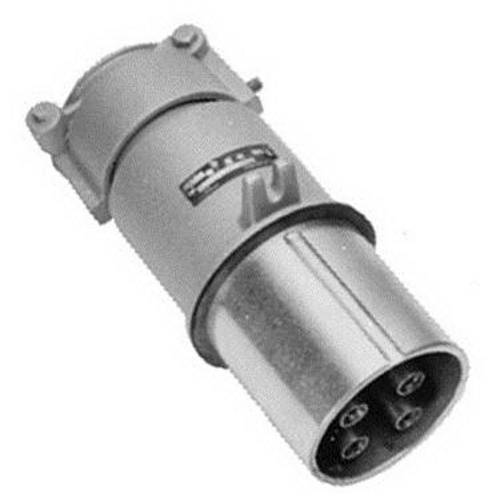

Appleton® Powertite® Pin & Sleeve Plug, Clamp Cover/Spring Door, 600 VAC/250 VDC, 200 A, 50 hp, 50/400 Hz, 4 Pole, 3 Wires, NEMA 3/3R/4/4X, -40 to 107 deg C, Pressure Wire Terminal, Aluminum, 6.81 in W x 11.94 in D
Appleton® Powertite® Pin & Sleeve Plug, Clamp Cover/Spring Door, 600 VAC/250 VDC, 200 A, 50 hp, 50/400 Hz, 4 Pole, 3 Wires, NEMA 3/3R/4/4X, -40 to 107 deg C, Pressure Wire Terminal, Aluminum, 6.81 in W x 11.94 in D
Application For ADR20034 Receptacle And ARC20034CD, ARC20034CD Connector Body ARRA Compliant N Buy American Compliant N Catalog Number AP20034E Connection Pressure Wire Terminal Country of Origin MX Currency USD Dimensions 11.94 in L x 6.81 in W Environmental Conditions Temperature Rating: -40 To 107 DEG C EU RoHS Indicator C Frequency Rating 50/400 Hz Gross Weight Per Pack 8.3500 lb Gross Weight per Pack Metric 3.79 Gross Weight UOM Metric kg Height 6.90 in Height [Metric] 17.5260 cm Length 13.20 in Length [Metric] 33.5280 cm Material Copper Free Aluminum NEMA Rating NEMA 3/3R/4/4X Number Of Poles 4 Phase 3 Series AP Series Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 Standards UL 1682UL 1686UL 50E File No. E145916/E145917CSA C22.2 No. 182.1CSA File No. 065179RoHS Compliant Sub Brand Powertite Temperature Rating -40 to 225 °F Terminal Type Pressure Wire Type 3-Phase Grounding Style 2 UNSPSC 39121402 UPC 11 78138113126 UPC 12 781381131261 Width 6.70 in Width [Metric] 17.0180 cm Wire Size 2/0 AWG - 250 MCM Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Amperage Rating 200 A Number of Wires 3 Voltage Rating 250/600 VAC//VDC For ADR20034 Receptacle And ARC20034CD, ARC20034CD Connector Body Grounding style: Shell and extra pole only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 11/16 IN; Plug and connector body combination is NEMA 4X rated when wing nuts are fully tightened on connector body Shell and extra pole grounding style 2 Designed to supply power to portable or fixed electrical equipment Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking Natural finish glass filled polyester insulating blocks 0.687 in dia wire recess Plug and connector body combination is NEMA 4X rated when wing nuts are fully tightened on connector body Locking screw and slot prevents plug cable collar from "backing off" Controlled length contacts ensure that ground makes first and breaks last for added safety Contacts exert constant pressure along entire contact surface and provide electrical continuity Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle Locking screw and slot prevents plug cable collar from backing off 0.687 in wire recess diameter Style 2 (Shell and Extra Pole) grounding style 250 MCM - 2/0 AWG Wire Size 3 phase 1.875 to 2.5 in dia cable 2 - 2-1/2 in hub
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For ADR20034 Receptacle And ARC20034CD, ARC20034CD Connector Body |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | AP20034E |
| Connection | Pressure Wire Terminal |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11.94 in L x 6.81 in W |
| Environmental Conditions | Temperature Rating: -40 To 107 DEG C |
| EU RoHS Indicator | C |
| Frequency Rating | 50/400 Hz |
| Gross Weight Per Pack | 8.3500 lb |
| Gross Weight per Pack Metric | 3.79 |
| Gross Weight UOM Metric | kg |
| Height | 6.90 in |
| Height [Metric] | 17.5260 cm |
| Length | 13.20 in |
| Length [Metric] | 33.5280 cm |
| Material | Copper Free Aluminum |
| NEMA Rating | NEMA 3/3R/4/4X |
| Number Of Poles | 4 |
| Phase | 3 |
| Series | AP Series |
| Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| Standards | UL 1682UL 1686UL 50E File No. E145916/E145917CSA C22.2 No. 182.1CSA File No. 065179RoHS Compliant |
| Sub Brand | Powertite |
| Temperature Rating | -40 to 225 °F |
| Terminal Type | Pressure Wire |
| Type | 3-Phase Grounding Style 2 |
| UNSPSC | 39121402 |
| UPC 11 | 78138113126 |
| UPC 12 | 781381131261 |
| Width | 6.70 in |
| Width [Metric] | 17.0180 cm |
| Wire Size | 2/0 AWG - 250 MCM |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Amperage Rating | 200 A |
| Number of Wires | 3 |
| Voltage Rating | 250/600 VAC//VDC |
| For ADR20034 Receptacle And ARC20034CD, ARC20034CD Connector Body |
| Grounding style: Shell and extra pole only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 11/16 IN; Plug and connector body combination is NEMA 4X rated when wing nuts are fully tightened on connector body |
| Shell and extra pole grounding style 2 |
| Designed to supply power to portable or fixed electrical equipment |
| Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking |
| Natural finish glass filled polyester insulating blocks |
| 0.687 in dia wire recess |
| Plug and connector body combination is NEMA 4X rated when wing nuts are fully tightened on connector body |
| Locking screw and slot prevents plug cable collar from "backing off" |
| Controlled length contacts ensure that ground makes first and breaks last for added safety |
| Contacts exert constant pressure along entire contact surface and provide electrical continuity |
| Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing |
| Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle |
| Locking screw and slot prevents plug cable collar from backing off |
| 0.687 in wire recess diameter |
| Style 2 (Shell and Extra Pole) grounding style |
| 250 MCM - 2/0 AWG Wire Size |
| 3 phase |
| 1.875 to 2.5 in dia cable |
| 2 - 2-1/2 in hub |
