Appleton™

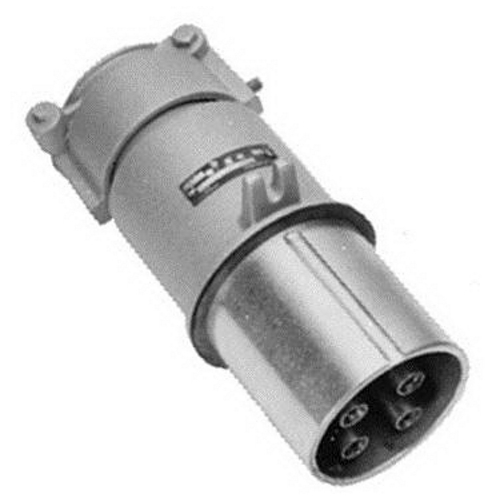

200 AMP PLUG ASSEM 4P S1 2.500
Custom_Product_Images_Illustration
Appleton™
200 AMP PLUG ASSEM 4P S1 2.500
SKU84270
MFGR #AP20044E
Your Cost: $1,122.48/ea
Appleton® Powertite® Pin & Sleeve Plug, Clamp Cover/Spring Door, 600 VAC/250 VDC, 200 A, 50 hp, 50/400 Hz, 4 Pole, 4 Wires, NEMA 3/3R/4/4X, -40 to 107 deg C, Pressure Wire Terminal, Aluminum, 6.81 in W x 11.94 in D
Appleton® Powertite® Pin & Sleeve Plug, Clamp Cover/Spring Door, 600 VAC/250 VDC, 200 A, 50 hp, 50/400 Hz, 4 Pole, 4 Wires, NEMA 3/3R/4/4X, -40 to 107 deg C, Pressure Wire Terminal, Aluminum, 6.81 in W x 11.94 in D
Application For ADR20044 Receptacle And ARC20044E Connector Body ARRA Compliant N Buy American Compliant N Catalog Number AP20044E Connection Pressure Wire Terminal Country of Origin MX Currency USD Environmental Conditions Temperature Rating: -40 To 107 DEG C EU RoHS Indicator C Gross Weight Per Pack 0.0010 lb Gross Weight per Pack Metric 3.90 Gross Weight UOM Metric kg Height 7.00 in Height [Metric] 17.7800 cm Length 13.40 in Length [Metric] 34.0360 cm Material Copperfree (4/10 of 1 PCT Maximum) Aluminum NEMA Rating NEMA 3, 3R, 4, 4X Number Of Poles 4 Phase 3 Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 Standards CSA C22.2 No. 182.1, File No. 065179 Certified, NEMA FB11, RoHS Compliant, UL 1682, 1686, 50E, File No. E145916, E145917 Listed Sub Brand Powertite Type Grounding Style 1 Plug UNSPSC 39121402 UPC 11 78138113129 UPC 12 781381131292 Width 7.00 in Width [Metric] 17.7800 cm Wire Size 2/0 AWG - 250 MCM A Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Amperage Rating 200 A Number of Wires 4 Voltage Rating 600//250 VAC//VDC For ADR20044 Receptacle And ARC20044E Connector Body Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 11/16 IN; Plug and connector body combination is NEMA 4X rated when wing nuts are fully tightened on connector body Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations, and similar apparatus Ideal for use on shipping docks, ports, and other "ship to shore" applications Suitable for use in locations where a weatherproof enclosure is required Rough usage construction Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking Controlled length contacts ensure that ground makes first and breaks last for added safety Copper free (4/10 of 1% max.) aluminum construction Glass filled polyester insulating blocks Epoxy powder coat plug Natural finish insulating blocks and contacts Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle Locking screw and slot prevents plug cable collar from backing off 0.687 in wire recess diameter Style 1 (Shell Only) grounding style 250 MCM - 2/0 AWG Wire Size 3 phase 1.875 to 2.5 in dia cable 2-1/2 in hub
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For ADR20044 Receptacle And ARC20044E Connector Body |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | AP20044E |
| Connection | Pressure Wire Terminal |
| Country of Origin | MX |
| Currency | USD |
| Environmental Conditions | Temperature Rating: -40 To 107 DEG C |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0010 lb |
| Gross Weight per Pack Metric | 3.90 |
| Gross Weight UOM Metric | kg |
| Height | 7.00 in |
| Height [Metric] | 17.7800 cm |
| Length | 13.40 in |
| Length [Metric] | 34.0360 cm |
| Material | Copperfree (4/10 of 1 PCT Maximum) Aluminum |
| NEMA Rating | NEMA 3, 3R, 4, 4X |
| Number Of Poles | 4 |
| Phase | 3 |
| Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| Standards | CSA C22.2 No. 182.1, File No. 065179 Certified, NEMA FB11, RoHS Compliant, UL 1682, 1686, 50E, File No. E145916, E145917 Listed |
| Sub Brand | Powertite |
| Type | Grounding Style 1 Plug |
| UNSPSC | 39121402 |
| UPC 11 | 78138113129 |
| UPC 12 | 781381131292 |
| Width | 7.00 in |
| Width [Metric] | 17.7800 cm |
| Wire Size | 2/0 AWG - 250 MCM A |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Amperage Rating | 200 A |
| Number of Wires | 4 |
| Voltage Rating | 600//250 VAC//VDC |
| For ADR20044 Receptacle And ARC20044E Connector Body |
| Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 11/16 IN; Plug and connector body combination is NEMA 4X rated when wing nuts are fully tightened on connector body |
| Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations, and similar apparatus |
| Ideal for use on shipping docks, ports, and other "ship to shore" applications |
| Suitable for use in locations where a weatherproof enclosure is required |
| Rough usage construction |
| Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking |
| Controlled length contacts ensure that ground makes first and breaks last for added safety |
| Copper free (4/10 of 1% max.) aluminum construction |
| Glass filled polyester insulating blocks |
| Epoxy powder coat plug |
| Natural finish insulating blocks and contacts |
| Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle |
| Locking screw and slot prevents plug cable collar from backing off |
| 0.687 in wire recess diameter |
| Style 1 (Shell Only) grounding style |
| 250 MCM - 2/0 AWG Wire Size |
| 3 phase |
| 1.875 to 2.5 in dia cable |
| 2-1/2 in hub |
