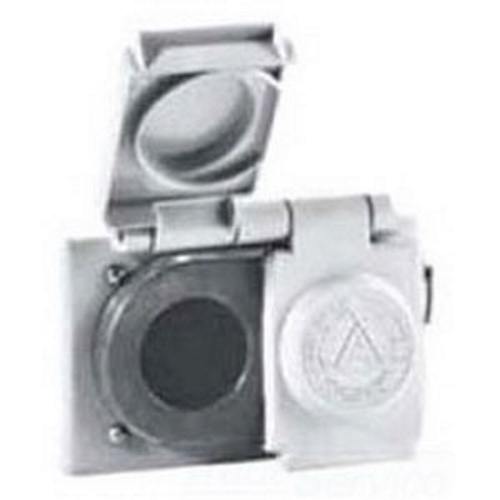

Appleton™
15A-125V DUPLEX RECEPT & COVER
Custom_Product_Images_Illustration
Appleton™
15A-125V DUPLEX RECEPT & COVER
SKU84703
MFGR #FSKD515
Your Cost: $137.06/ea
Appleton® Duplex Receptacle Cover, 2 Gangs, 3.16 in Length, 4.56 in Width, 1.16 in Depth, Surface Mount, Die Cast Aluminum, Epoxy Powder Coated, Gray
Appleton® Duplex Receptacle Cover, 2 Gangs, 3.16 in Length, 4.56 in Width, 1.16 in Depth, Surface Mount, Die Cast Aluminum, Epoxy Powder Coated, Gray
Application For Use With Duplex FS Boxes, Non-Locking Blade Plugs, With 1-3/8 IN Device Opening ARRA Compliant N Buy American Compliant N Catalog Number FSKD515 Color Gray Country of Origin MX Currency USD EU RoHS Indicator C Finish Epoxy Powder Coated Gross Weight Per Pack 0.5500 lb Gross Weight per Pack Metric 0.25 Gross Weight UOM Metric kg Height 3.00 in Height [Metric] 7.6200 cm Length [Metric] 10.9220 cm Mounting Box Mounting Orientation Horizontal Mounting Type Surface NEMA Rating NEMA 5-15R Number of Gangs 2 Standard NEMA WD-1 And WD-5, NEC 406.8(B) And CEC Standards CEC ApprovedNEMA WD1/WD5NEC 406.8 (B)UL 514A Type Receptacle With Duplex Box Cover UNSPSC 39121315 UPC 11 78138146118 UPC 12 781381461184 Width [Metric] 8.1280 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Cover Type Duplex Receptacle Depth 1-5/32 in Length 4.30 in Material Die Cast Aluminum Width 3.20 in For Use With Duplex FS Boxes, Non-Locking Blade Plugs, With 1-3/8 IN Device Opening Receptacle interiors are specification grade, back and side-wired; Duplex units accommodate one receptacle and one toggle switch or any combination of the two; Covers open all the way, permitting easy plug insertion and withdrawal; Also permits adequate access to cover screws for easy attachment of cover to FS, FD or other device box; Large head cover screws are captivated; Unique design of spring door hinge provides smooth action; Duplex units have a separate hinge shaft for each spring door cover to reduce stress on the shafts; Spring door cover puts pressure on plug to hold plug in best position for providing optimum weatherproof seal For use with duplex FS boxes, non-locking blade plugs with 1-3/8 in device opening, FD boxes take devices exceeding 1-5/8 in depth under fastening ears Rugged and corrosion resistant for indoor or outdoor use Weatherproof, raintight and dust-tight when used with cast gasketed covers Ridge top construction provides positive fit between gasket, box and cover to seal out moisture Furnished with internal grounding screw Accommodate wiring devices such as switches and receptacles Serve as pull boxes for conductors Permit access to conductors for splicing and maintenance Allow connections for branch conduit runs Provide excellent service in areas where boxes are subject to rough usage Single and multi-gang blank bodies for special conduit entrance arrangements 15 A current and 125 VDC voltage rating NEMA 3R and NEMA 5-15R enclosure Die cast copper free aluminum materia
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Duplex FS Boxes, Non-Locking Blade Plugs, With 1-3/8 IN Device Opening |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | FSKD515 |
| Color | Gray |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Finish | Epoxy Powder Coated |
| Gross Weight Per Pack | 0.5500 lb |
| Gross Weight per Pack Metric | 0.25 |
| Gross Weight UOM Metric | kg |
| Height | 3.00 in |
| Height [Metric] | 7.6200 cm |
| Length [Metric] | 10.9220 cm |
| Mounting | Box |
| Mounting Orientation | Horizontal |
| Mounting Type | Surface |
| NEMA Rating | NEMA 5-15R |
| Number of Gangs | 2 |
| Standard | NEMA WD-1 And WD-5, NEC 406.8(B) And CEC |
| Standards | CEC ApprovedNEMA WD1/WD5NEC 406.8 (B)UL 514A |
| Type | Receptacle With Duplex Box Cover |
| UNSPSC | 39121315 |
| UPC 11 | 78138146118 |
| UPC 12 | 781381461184 |
| Width [Metric] | 8.1280 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Cover Type | Duplex Receptacle |
| Depth | 1-5/32 in |
| Length | 4.30 in |
| Material | Die Cast Aluminum |
| Width | 3.20 in |
| For Use With Duplex FS Boxes, Non-Locking Blade Plugs, With 1-3/8 IN Device Opening |
| Receptacle interiors are specification grade, back and side-wired; Duplex units accommodate one receptacle and one toggle switch or any combination of the two; Covers open all the way, permitting easy plug insertion and withdrawal; Also permits adequate access to cover screws for easy attachment of cover to FS, FD or other device box; Large head cover screws are captivated; Unique design of spring door hinge provides smooth action; Duplex units have a separate hinge shaft for each spring door cover to reduce stress on the shafts; Spring door cover puts pressure on plug to hold plug in best position for providing optimum weatherproof seal |
| For use with duplex FS boxes, non-locking blade plugs with 1-3/8 in device opening, FD boxes take devices exceeding 1-5/8 in depth under fastening ears |
| Rugged and corrosion resistant for indoor or outdoor use |
| Weatherproof, raintight and dust-tight when used with cast gasketed covers |
| Ridge top construction provides positive fit between gasket, box and cover to seal out moisture |
| Furnished with internal grounding screw |
| Accommodate wiring devices such as switches and receptacles |
| Serve as pull boxes for conductors |
| Permit access to conductors for splicing and maintenance |
| Allow connections for branch conduit runs |
| Provide excellent service in areas where boxes are subject to rough usage |
| Single and multi-gang blank bodies for special conduit entrance arrangements |
| 15 A current and 125 VDC voltage rating |
| NEMA 3R and NEMA 5-15R enclosure |
| Die cast copper free aluminum materia |
