1 IN ALUM L-T CRD&CBL CONN

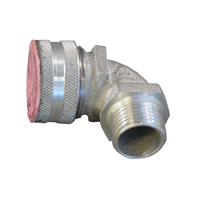

Liquid Tight Angle Cord Connectors
242481
MFG #: CG90100100
Appleton™
50.58000
/ ea
Appleton Group's hazardous location cable and cord fitting s provide liquidtight termination and strain relief for neoprene, hypalon and PVC jacketed power and control cables and cords in a choice of materials for strength and corrosion resistance.
- http://www.appletonelec.com(Seller Home Page URL)
- Line Drawing URL - 11043_CG-90-1238_1.jpg(Line Drawing URL)
- Line Drawing URL - CG-90-1238_1.jpg(Line Drawing URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet URL - lsr-cord-cable-conn-appleton.pdf(Spec Sheet URL)
- Warranty URL - Appleton_1200_Warranty.pdf(Warranty URL)
- Features
| Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed |
| Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord |
| Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion |
| Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap |
| For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors |
| Provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable |
| Copperfree (4/10 of 1% or less) aluminum cap, neoprene sealing grommet, steel or Teflon washer |
| Remove sufficient outer covering of cord or cable to pass conductors through connector body |
| Liquidtight |
