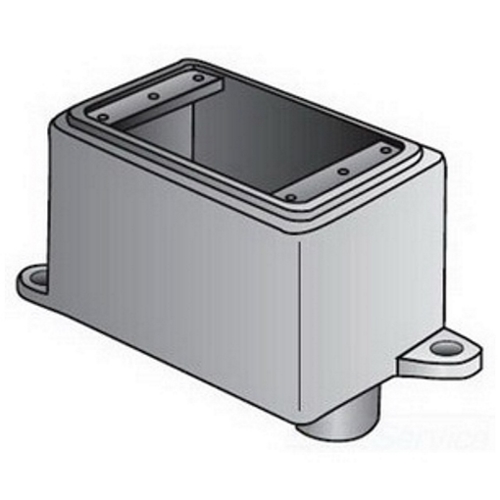

These heavy duty cast hub device boxes accommodate standard wiring devices such as switches and receptacles, serve as pull boxes for conductors, provide access for splicing and maintenance, or allow connections for branch conduit runs; Rugged and corrosion resistant for indoor or outdoor use; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Ridge top construction provides positive fit between gasket, box and cover to seal out moisture; Furnished with internal grounding screw; Tapered threaded hubs (NPT) with integral bushings; Suitable for use in wet locations when used with gasketed covers; For use with FS style covers as well as standard device plates made of steel, brass, bakelite, etc; Single gang with mounting feet |
Corrosion-resistant ideal for indoor and outdoor installations |
Weatherproof, raintight and dust tight when used with cast gasketed covers |
FS and FD boxes take standard flush wiring devices |
FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears |
Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock |
Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit |
Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
Complete selection of covers, receptacles, plugs, gaskets and accessories |
Covers have captive stainless steel screws to speed installation, prevents loss of screws |
Smooth, rounded integral bushing in each hub protects conductor insulation |
Accommodate wiring devices such as switches and receptacles |
Provide excellent service in areas where boxes are subject to rough usage |
Serve as pull boxes for conductors |
Permit access to conductors for maintenance |
Provide openings for making splices |
Allow connections for branch conduit runs |
Blank bodies for special conduit entrance arrangements |
Ridge top construction |
Without knockouts |
(1) 3/4 in hub cable entry(2) Lugs mountingTriple Coat With Zinc Electroplate/Chromate/Epoxy Powder CoatWithout Knockout |
