1/2 IN HAZ LOC MC CONN ALUM SM
Armored/Metal Clad Cable Connectors
461528
MFG #: TMCX050SA
Appleton™
79.51000
/ ea

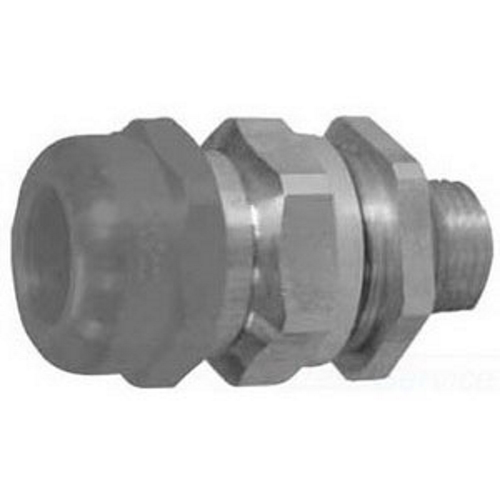

The TMCX explosionproof, dust-ignitionproof connector features a gas block and epoxy seal for use in hazardous environments. It uses an exclusive union sleeve that simplifies installations and guarantees the reusability of connectors when doing repair or replacements. The TMCX offers stainless steel grounding springs for positive ground continuity and excellent pullout resistance, additional integral deluge proof seals for protection in extreme offshore and onshore locations, and the widest cable acceptance range in the industry.
- http://www.appletonelec.com(Seller Home Page URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet URL - 11043_SPE_AEC_MC007_TMCX_Connectors_For_Jacketed_Metal_Clad_Cable.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_AEC_MC007_TMCX_Connectors_For_Jacketed_Metal_Clad_Cable.pdf(Spec Sheet URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armor, Continuously Welded Armor Cable |
| Provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor; For hazardous locations; For use on horizontal or vertical run; Independent sealing and armor clamping; True 360 DEG grounding; Superior pull out prevention; Compact slim profile; Widest cable acceptance range; Supplied complete with epoxy sealing compound; Disconnectable design; Additional integral deluge proof seal for protection in extreme offshore and onshore environments; Explosionproof, dust-ignitionproof; Stainless steel grounding spring; LSF-TPE (halogen-free) bushing; Nylon stop and slip washers; Viton o-ring; LTCOMP15 replacement compound |
| Independent sealing and armor clamping |
| Widest cable acceptance range |
| Supplied complete with epoxy sealing compound |
| True 360 deg grounding |
| Additional integral deluge proof seal for protection in extreme offshore and onshore environments |
| Superior pullout prevention, compact slim profile |
| Disconnectable design |
| Stainless steel grounding spring, LSF-TPE (halogen free) bushing, nylon stop and slip washers, viton O-ring |
| Provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor |
| For hazardous location |
| 1.31 in envelope diameter |
| 0.5 cc compound weight |
| 2.2 in L nominal assembly |
| Jacketed MC/TECK cable |
| Copper Free Aluminum |
