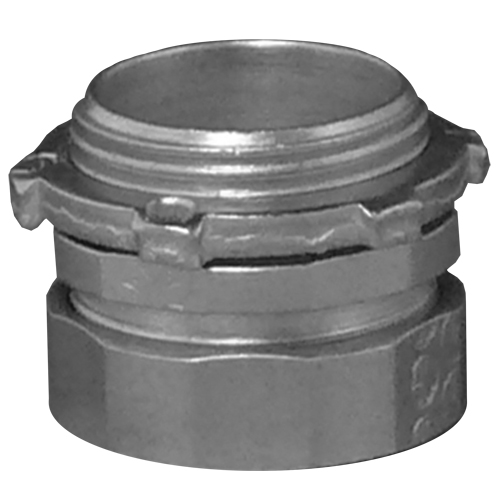

1-1/4 IN EMT COMP CONN USA
SKU223759
MFGR #7125US
Your Cost: $45.05/ea
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
Application To ground and secure EMT Raceways to boxes and enclosures ARRA Compliant Y Buy American Compliant Y Catalog Number 7125US Color Metallic Connection Male NPS Thread Country of Origin US Currency USD Dimensions 1.91 in Dia x 1.44 in L EU RoHS Indicator C Gross Weight Per Pack 0.3200 lb Gross Weight per Pack Metric 0.20 Gross Weight UOM Metric kg Height 0.68 in Height [Metric] 17.2720 mm Insulation None Length 5.40 in Length [Metric] 13.7160 cm NEMA Rating FB-1 Size 1.25 IN in Standard UL Standard: 514B; UL Listed: E14815, E14895; CSA Standard: C22.2 No. 18.3, cUL Listed: E14815; CSA Certified: 028507; NEMA: FB-1 Standards ARRA, Buy American Act Compliant, CSA Standard, CSA 028507 Certified, C22.2 No. 18.3, cULE14815 Listed, UL E14815, E14895, 514B Listed, NEMA FB-1, RoHS Compliant Sub Brand ETP Suitable For Use With Ground and Secure EMT Raceways to Box and Enclosure Type Non-Insulated UNSPSC 39121434 UPC 11 68785505043 UPC 12 687855050437 Width 5.30 in Width [Metric] 13.4620 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Zinc Electroplated Material Steel Trade Size 1-1/4 in To ground and secure EMT Raceways to boxes and enclosures 1-1/4 IN EMT Compression Connector, Made in USA, Male Hub Threads - NPS, Concretetight NPS male hub threads Concrete tight Insulated throat temperature rated 90deg C 0.5 in L thread
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | To ground and secure EMT Raceways to boxes and enclosures |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | 7125US |
| Color | Metallic |
| Connection | Male NPS Thread |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 1.91 in Dia x 1.44 in L |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3200 lb |
| Gross Weight per Pack Metric | 0.20 |
| Gross Weight UOM Metric | kg |
| Height | 0.68 in |
| Height [Metric] | 17.2720 mm |
| Insulation | None |
| Length | 5.40 in |
| Length [Metric] | 13.7160 cm |
| NEMA Rating | FB-1 |
| Size | 1.25 IN in |
| Standard | UL Standard: 514B; UL Listed: E14815, E14895; CSA Standard: C22.2 No. 18.3, cUL Listed: E14815; CSA Certified: 028507; NEMA: FB-1 |
| Standards | ARRA, Buy American Act Compliant, CSA Standard, CSA 028507 Certified, C22.2 No. 18.3, cULE14815 Listed, UL E14815, E14895, 514B Listed, NEMA FB-1, RoHS Compliant |
| Sub Brand | ETP |
| Suitable For Use With | Ground and Secure EMT Raceways to Box and Enclosure |
| Type | Non-Insulated |
| UNSPSC | 39121434 |
| UPC 11 | 68785505043 |
| UPC 12 | 687855050437 |
| Width | 5.30 in |
| Width [Metric] | 13.4620 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Zinc Electroplated |
| Material | Steel |
| Trade Size | 1-1/4 in |
| To ground and secure EMT Raceways to boxes and enclosures |
| 1-1/4 IN EMT Compression Connector, Made in USA, Male Hub Threads - NPS, Concretetight |
| NPS male hub threads |
| Concrete tight |
| Insulated throat temperature rated 90deg C |
| 0.5 in L thread |
